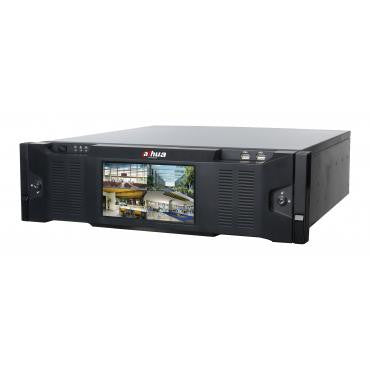

Dahua DHI-NVR6A16DR-128-4K 128CH 4K Network Video Recorder

Replaced by the DHI-6116DR-128-4KS2

Dahua DHI-NVR6A16DR-128-4K Features

System

• Main Processor Intel Processors
• Operating System LINUX

Video & Audio

• IP Camera Input 128 channel
• Two-way Talk 1channel Input, 1channel Output, RCA

Display

• Interface 2 HDMI (up to 3840x2160), 1 VGA
• Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768
• Multi-screen Display The 1st screen: 1/4/8/9/16/25/36
• The 2nd screen: 1/4/8/9/16
• OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording

• Compression H.265/H.264/MJPEG
• Resolution 12Mp, 8Mp, 6Mp, 5Mp, 3Mp, 1080P, 1.3Mp, 720P & etc.
• Record Rate 256Mbps
• Bit Rate 1~ 20Mbps
• Record Mode Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
• Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Video Detection & Alarm

• Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
• Alarm Input 16ch, low level effective, green terminal interface
• Relay Output 8ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface

Playback & Backup

• Playback 128Mbps in Raid 5 mode
• 64Mbps in single HDD mode
• Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
• Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
• Backup Mode USB Device/Network/Internal SATA burner/eSATA Device

Network

• Interface 4 RJ-45 ports (10/100/1000Mbps)
• Ethernet Port 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
• Optical Fiber Interface 2 Giga Optical fiber interface
• Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android, Windows Phone

Storage

• Internal HDD 16 SATA III ports, up to 96TB
• HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support global HDD hot-spare)

Auxiliary Interface

• Front cover Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR)
• USB 4 USB ports(3 USB2.0, 1 USB3.0)
• eSATA 1 eSATA port
• SAS 1 Mini SAS port, for storage expansion
• RS232 1 port, for PC communication& keyboard
• RS485 1 port, For PTZ control

General

• Power Supply AC100V~240V, 50~60Hz, Redundant
• Power Consumption <51W (Without HDD)
• Working Environment -10°C~+55°C/10%~90%RH/86~106kpa
• Dimension (W×D×H) 531.9mm ×485mm(with ears)×133.2mm
• Weight 17.45kg (without HDD)
• Installation Rack-mounted
