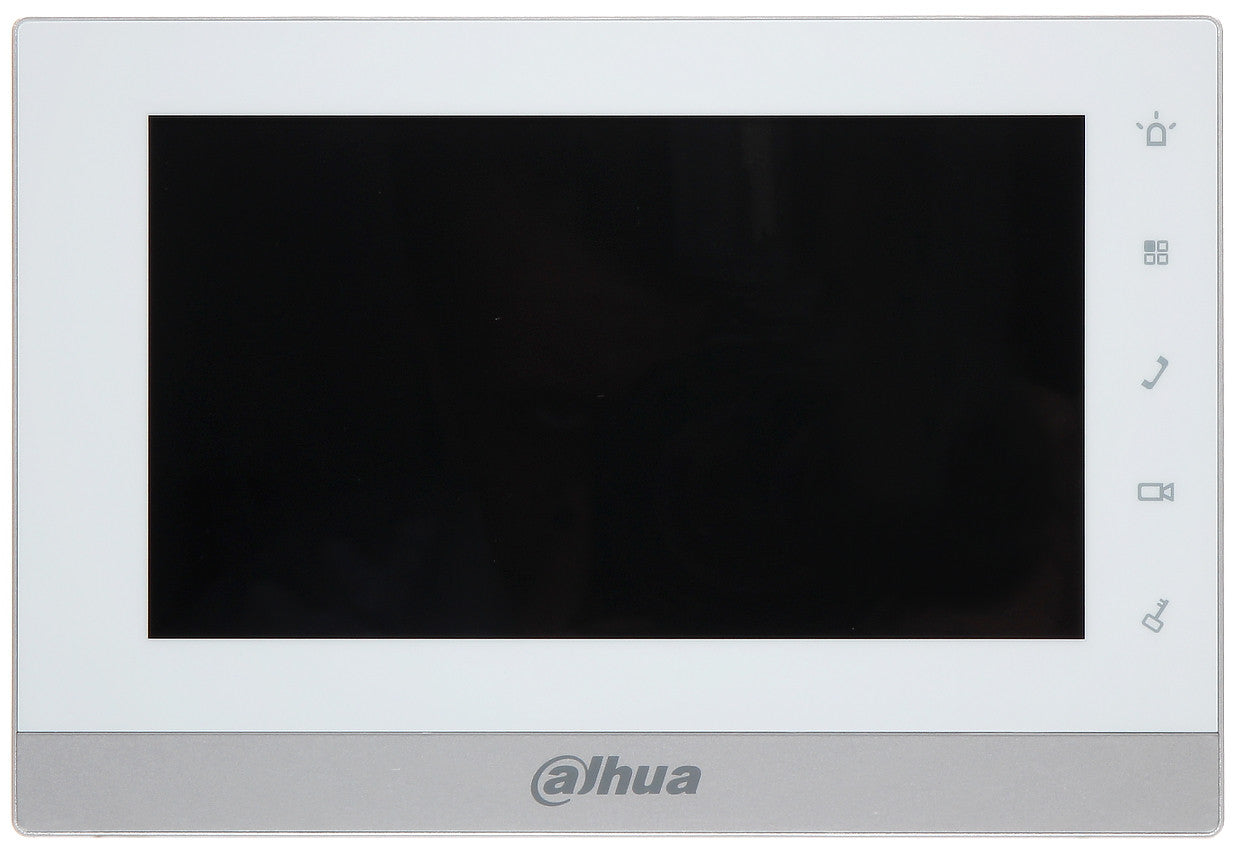

Dahua DHI-VTH1550CH Features
- 7-inch TFT Capacitive Touchscreen
- 800 x 480 Resolution
- Alarm Integration
- Micro SD Card Slot, maximum 32 GB
- Record and Snapshot Functions (requires SD card)
- Surface-mounted
Dahua DHI-VTH1550CH Specifications
- Main Processor: Embedded Micro Processor
- Operating System: Embedded Linux
- Viewing Area: 7-in. TFT LCD, Capacitive
- Resolution: 800 x 400
- Input: Touchscreen Technology, and Mechanical Keys
- Audio: Input: Omnidirectional Microphone, Output: Embedded Speaker, Two-way Talk
- Audio Compression: G.711
- Alarm: Input: Six (6) Channels, Output: One (1) Channel
- RS485: One (1) Port
- Memory: Micro SD, 32 GB maximum
- Video Compression: H.264
- Ethernet: 10/100 Mbps, Self-adaptive
- Network Protocol: TCP/IP
- Safety: EN 60950:2006+A2:2013
- Electromagnetic Compatibility: (EMC) FCC CFR 47 Part 15 subpart B, ANSI C63.4 - 2009, EN 55022:2010, EN 55024:2010, EN 50130-4:2011, EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009, EN 61000-3-3:208, IEC 61000-4-2:2008, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2005, IEC 61000-4-6:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004
- Power: 24 VAC (supplied by VTNS1060A)
- Power Consumption: Standby: ≤ 1.5 W, Operation: ≤ 7 W
- Operating Temperature: -10° C to +55° C (14° F to +131° F)
- Operating Humidity: 10% to 90%, Relative
- Dimensions: 200.45 mm x 136.50 mm x 22.0 mm - (7.89 in. x 5.37 in. x 0.87 in.)
- Net Weight: 0.80 kg (1.76 lb)
- Installation: Surface-mount
