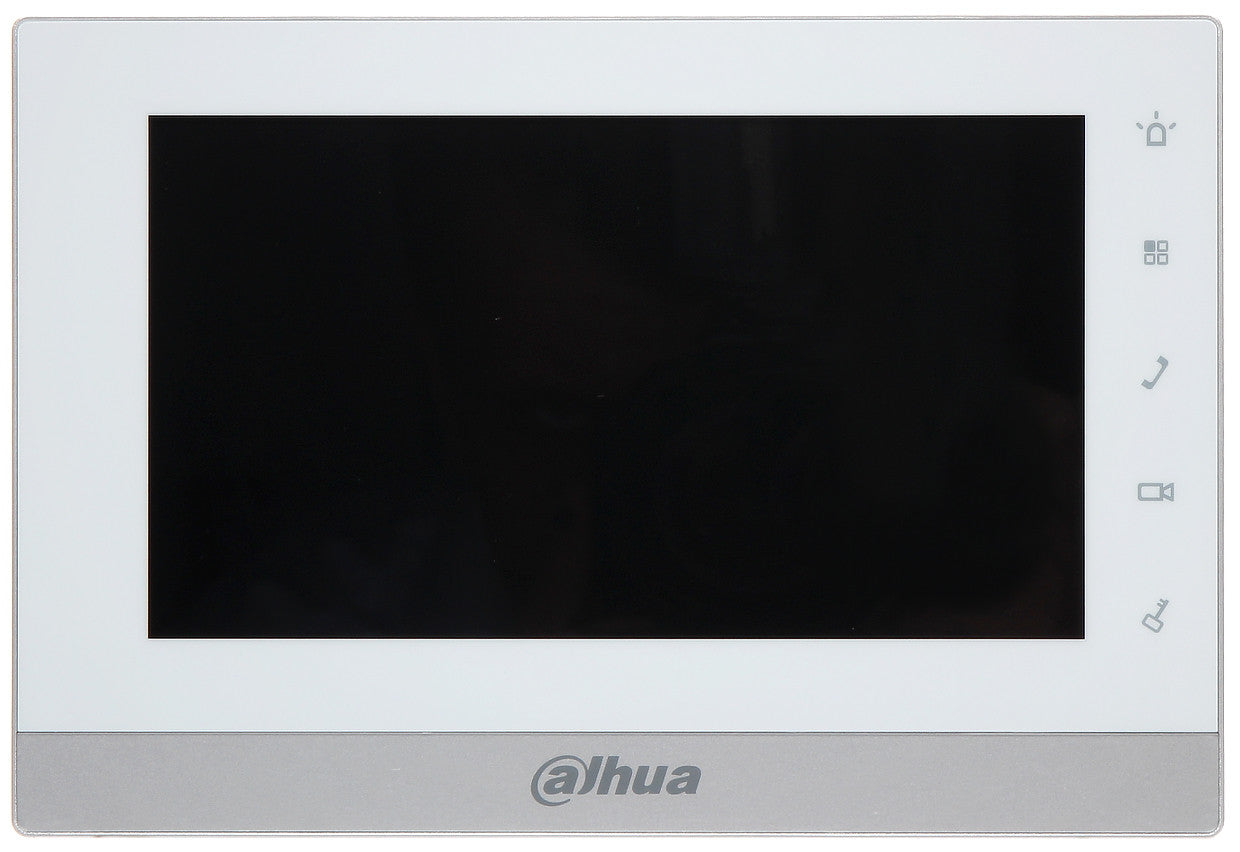

Dahua DHI-VTH1550W-2 Features
- 7" TFT Capacitive touch screen
- IPC surveillance(VTNC3000A needed)
- Alarm integration
- Micro SD card optional, max 32GB
- Record & Snapshot(SD card needed)
Dahua DHI-VTH1550W-2 Specifications
System Main Processor: Built-in microcontroller
Operation System: Embedded LINUX operating system
Video compression: H.264
Audio Compression: G.711
Audio Input: All-direction microphone
Audio Output: Embedded loudspeaker
Bidirectional Talk: Support Dual-way Bidirectional talk
Display Size: LCD Screen 7“ 800x480, Capacitive
Alarm input: 6
Alarm output: 1 Channel
RS485: 1
Ethernet: 10M/100Mbps Self-adaptive
Network Protocol: TCP/IP
Memory Slot: Micro SD, Max 32GB
Installation: Surface
General Power: DC 24V/ supply directly by VTNC3000A
Power Consumption:
- Standby ≤1.5W
- working ≤7W
Work Environment:
- Temperature: -10℃~+55℃
- Humidity: 10~90%RH
Dimensions: 200.5mm×136.5mm×22.0mm
Weight: 0.8Kg
