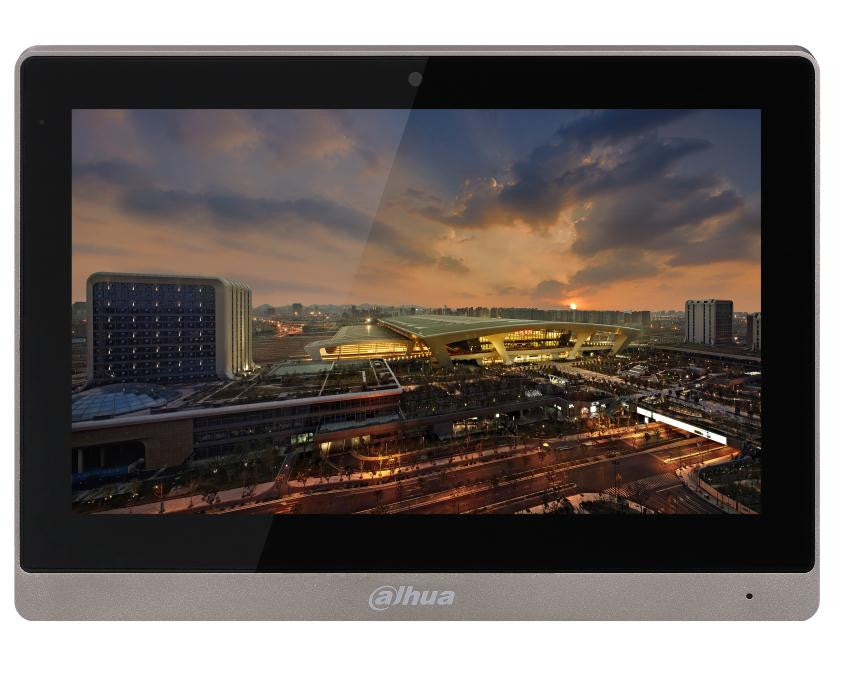

Dahua DHI-VTH1660CH Features
- Displayer: Color 10.2-inch TFT LCD, Capacitive touch screen, metal frame
- Support 8 wire alarm input extension or home appliance
- Call among households
- 1 channel 10/100Mbps self-adaptive Ethernet
- Support outdoor station and IPC monitor
- Support leave audio and video message
- Support supplied power by network cable
- SD card inside
- Flush mounted
Dahua DHI-VTH1660CH Specifications
System Main Processor: Built-in microcontroller
Operation System: Embedded LINUX operating system
Video compression: H.264
Audio Input: All-direction microphone
Audio Output: Embedded loudspeaker
Bidirectional Talk: Support bidirectional talk
Display Size: Color 10.2-inch TFT LCD
Alarm input: 8 Channels
Alarm output: 1 Channel
Ethernet: 10 M / 100 Mbps adaptive
Network Protocol: TCP/IP
General Power: DC 10~15V or supply directly by Special switching power
Power Consumption:
- Standby ≤1.5W
- working ≤7W
Work Environment:
- Temperature: -10℃~+60℃
- Humidity: 10~90%RH
Dimensions: 260mm×189mm×22.7mm(L*W*T);
Weight: 1.0 Kg;
