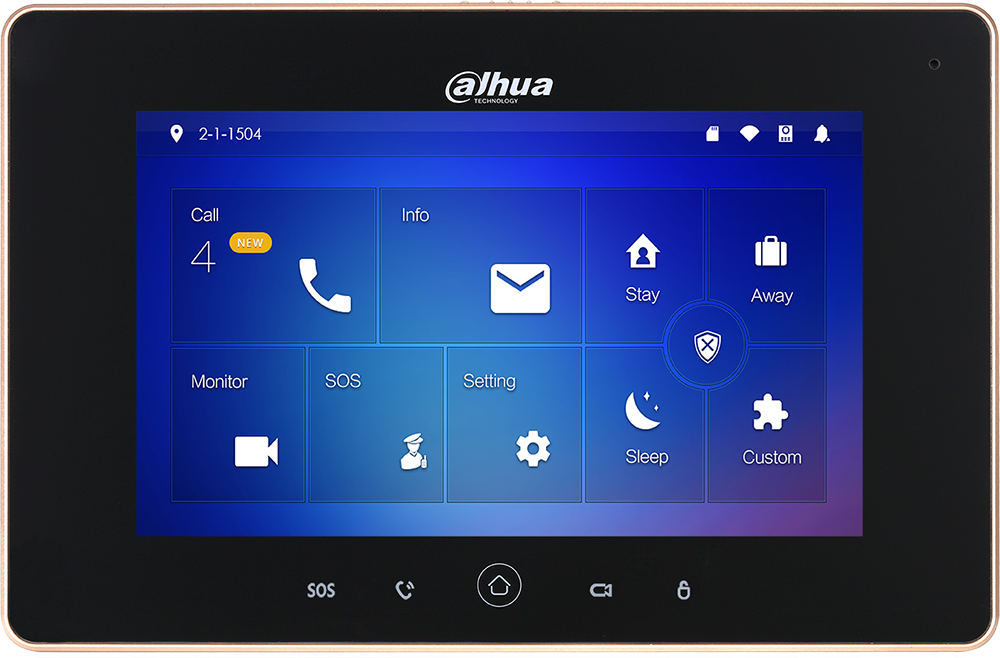

Dahua DHI-VTH5221D Features
- 7-inch Capacitive Touch Screen, 1024 x 600 Resolution
- IPC Surveillance
- Alarm Integration and Group Call
- Two-door Control
- Micro SD Card Slot, maximum 32 GB
- Add Devices in SmartPSS via P2P Connection
- Record and Snapshot Functions (requires SD card)
- WiFi-enabled and PoE Power Supply
- Surface-mounted
Dahua DHI-VTH5221D Specifications
Main Processor: Embedded Micro Processor
Operating System: Embedded Linux
Viewing Area: 7-in. LCD, Capacitive
Resolution: 1024 x 600
Input: Touchscreen Display
Audio:
- Input: Omnidirectional Microphone
- Output: Built-in Speaker
- Two-way Talk
Audio Compression: G.711
Alarm Input:
- Six (6) Channels
- Output: One (1) Channel
- RS485 One (1) Port
Memory: Micro SD, 32 GB maximum
Video Compression: H.264
WiFi: IEEE 802.11b/g/n
Ethernet: 10/100 Mbps, Self-adaptive
Network Protocol: TCP/IP
Safety: EN 60950:2006+A2:2013
Electromagnetic Compatibility (EMC):
- FCC CFR 47 Part 15 subpart B
- ANSI C63.4 - 2009
- EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
- EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
- EN 61000-3-3:208, IEC 61000-4-2:2008,
- IEC 61000-4-3:2010, IEC 61000-4-4:2012,
- IEC 61000-4-5:2005, IEC 61000-4-6:2008,
- IEC 61000-4-8:2009, IEC 61000-4-11:2004
Power: 12 VDC, PoE (802.3 af)
Power Consumption:
- Standby: ≤ 1 W
- Operation: ≤ 8 W
Operating Temperature -10° C to +55° C (14° F to +131° F)
Operating Humidity: 10% to 90%, Relative
Dimensions: 215.0 mm x 140.0 mm x 21.0 mm - (8.46 in. x 5.51 in. x 0.83 in.)
Net Weight: 0.80 kg (1.76 lb)
Installation: Surface-mount
