Discontinued - Recommended Replacement: VTNS2003B-2

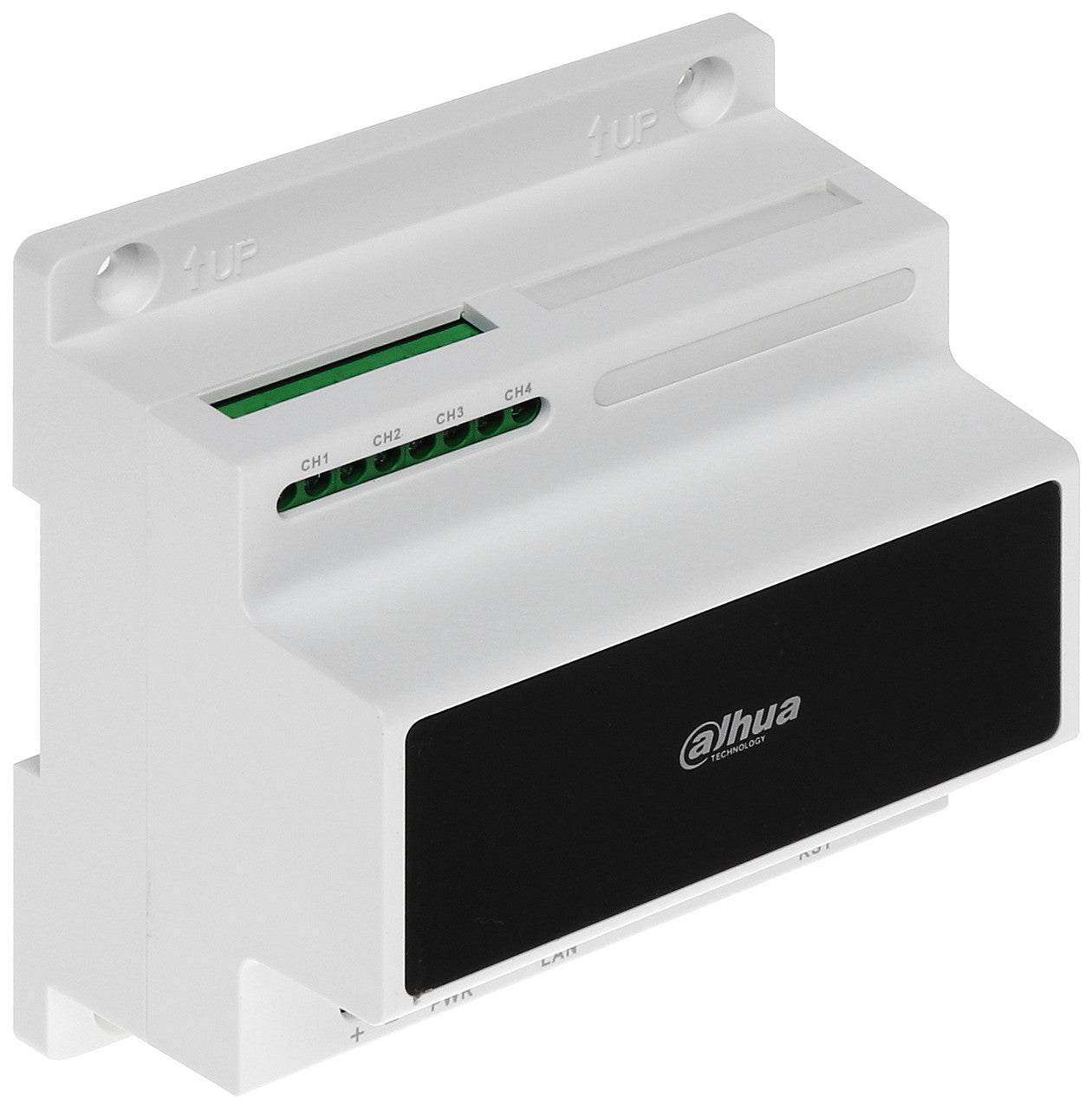

Dahua DHI-VTNC3000A Features
- 4 groups of 2-wire port, provide power and signal to other 2-wire devices
- RJ45 port, connected LAN
- Surface mounted & DIN-Rail Mounted
Dahua DHI-VTNC3000A Specifications
- Voltage: 24 V, Requires a separate 24 VDC, 3 A power supply (Power supply not included, we recommend the A24-3A)
- Power Consumption: 30 W, maximum, (Four-channel Output under Full Load)
- Operating Temperature: -10° C to +55° C (14° F to +131° F)
- Dimensions: 107.85 mm x 110.55 mm x 65.80 mm (4.25 in. x 4.35 in. x 2.60 in.)
- Net Weight: 0.50 kg (1.10 lb)
