Dahua

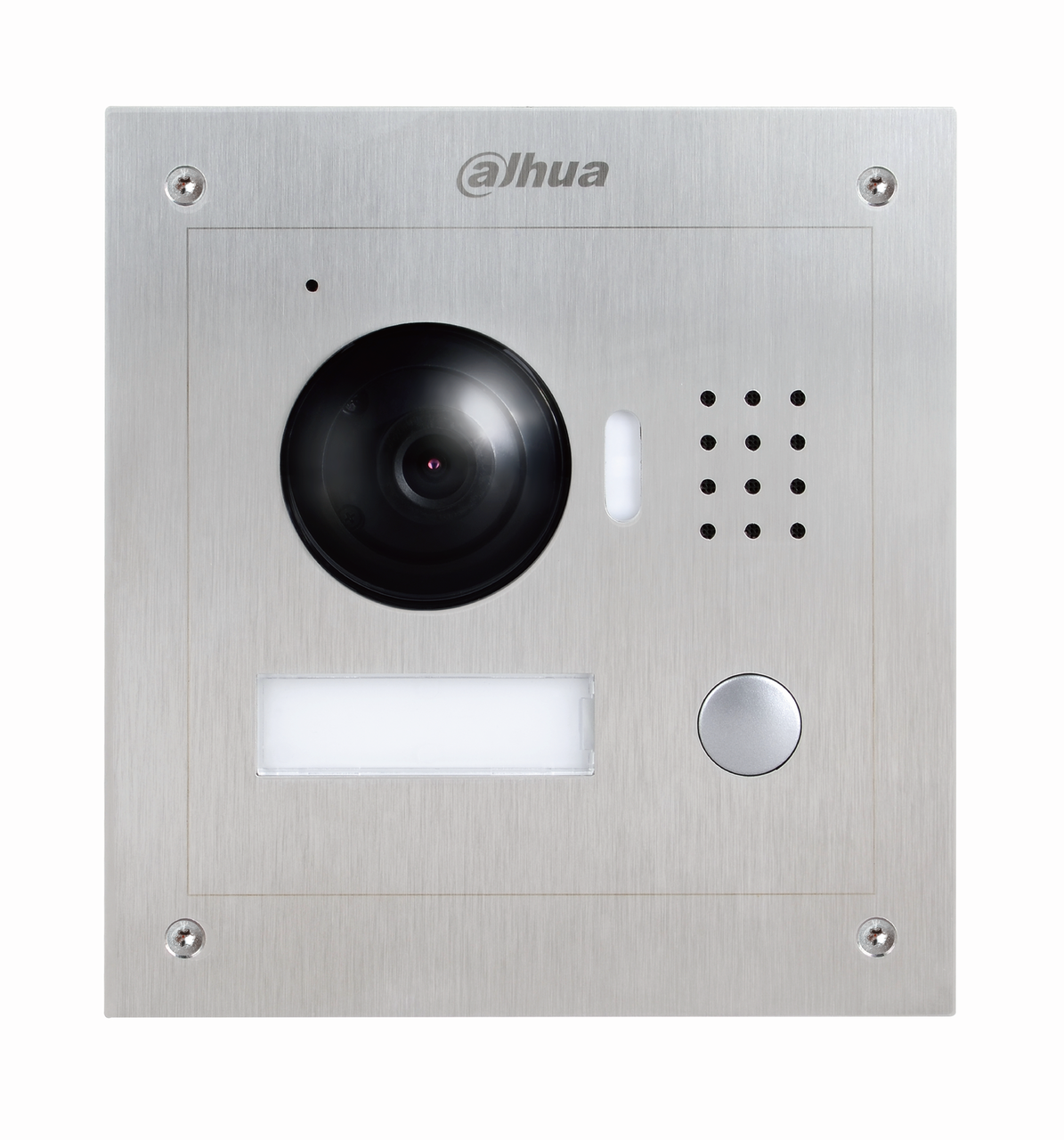

Dahua DHI-VTO2000A Residential Outdoor Station
Dahua DHI-VTO2000A Features
- 1/3-in. 1.3 MP CMOS Imager
- Wide-angle Field of View
- Advanced System and Software for Residential Applications
- Night Vision and Voice Indication
- Supports Remote Unlock and Group Call Functions
- Video and Audio Messaging
- Stainless Steel Panel, Surface- or Flush-mounted
Dahua DHI-VTO2000A Specifications
- Main Processor: Embedded Micro Processor
- Operating System: Embedded Linux
- Input: Single Mechanical Button
- Door Lock: Status Check Support (optional)
- Video Compression: H.264
- Image Sensor: 1/3-in. 1.3 MP CMOS Sensor
- Lens: 2.8 mm
- Angle of View: Horizontal: 90° - Vertical: 120°
- Day/Night: ICR
- Audio: Input: Omnidirectional Microphone, Output: Built-in Speaker, Two-way Talk
- Audio Compression: G.711
- Door Control: Two (2) Channels: One (1) Relay Out for Main Lock & One (1) Channel Extended by Access Control Module
- Alarm Input: Two (2) Channels: One (1) Channel, Unlock Button & One (1) Channel, Feedback
- RS485: One (1) Port
- Tamper Switch: One (1)
- Ethernet: 10/100 Mbps, Self-adaptive
- Protocol: TCP/IP
- Power: 12 VDC
- Power Consumption: Standby: ≤ 1 W, Operation: ≤ 10 W
- Operating Temperature: -40° C to +60° C (-40° F to +140° F)
- Operating Humidity: 10% to 90%, Relative
- Ingress Protection: IP54
- Vandal Resistance: IK07
- Material: Stainless Steel
- Dimensions: 129.0 mm x 32.17 mm x 140.0 mm (5.08 in. x 1.27 in. x 5.51 in.)
- Net Weight: 0.80 kg (1.76 lb)
- Installation: Surface or Flush-mount
