Dahua IPC-C26EN Features
Camera
- Image Sensor 1/2.7-in. 2 MP CMOS
- Effective Pixels 1920 x 1080, 2 MP
- Scanning System Progressive
- IR Distance 10.0 m (32.81 ft)
Lens
- Lens Type Fixed
- Focal Length 2.8 mm
- Angle of View Horizontal 111°, Vertical 58°, Diagonal 133°
- Video and Audio
- Compression H.265, H.264
- Resolution 2 MP at 30 fps
- Digital Zoom 16x
- Motion Detection Passive Infrared (PIR), Configurable Regions
Audio
- Input Built-in Microphone
- Output Built-in Speaker with integrated 110 dB Siren
Network
- WiFi 2.4 GHz WiFi (IEEE802.11b/g/n)
- Antenna Internal Dual Antennae, 2 x 2 MIMO
- Interoperability CGI
- Mobile Operating System IOS, Android
- Edge Storage Micro SD Card Slot, maximum 128 GB
- Compatibility Any Dahua NVR, Dahua X5, X7, X82 Series HDCVI DVRs, Dahua DMSS Mobile Application
Certifications
- Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011, + A2:2013, IEC 60950-1:2005 (2nd Ed.); Am1:2009 + Am2:2013
- Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 subpart B , 201 8, EN 55032:2015, EN 6100- 3-2:2014,, EN 61000-3-3:2013, EN 50130-4:2011/A1:2014,, EN 55024:2010/A1:2015, EN 55035:2017
Electrical
- Power Supply 5 VDC, 2 A
- Power Consumption ≤ 6 W
Environmental
- Operating Temperature –20° C to +50° C (–4° F to 122° F), Less than 95% RH
- Ingress Protection IP65
Construction
- Casing Plastic
- Dimensions 75.0 mm x 84.0 mm x 97.70 mm (2.95 in. x 3.31 in. x 3.85 in.)
- Net Weight 0.31 kg (0.68 lb)
Overview

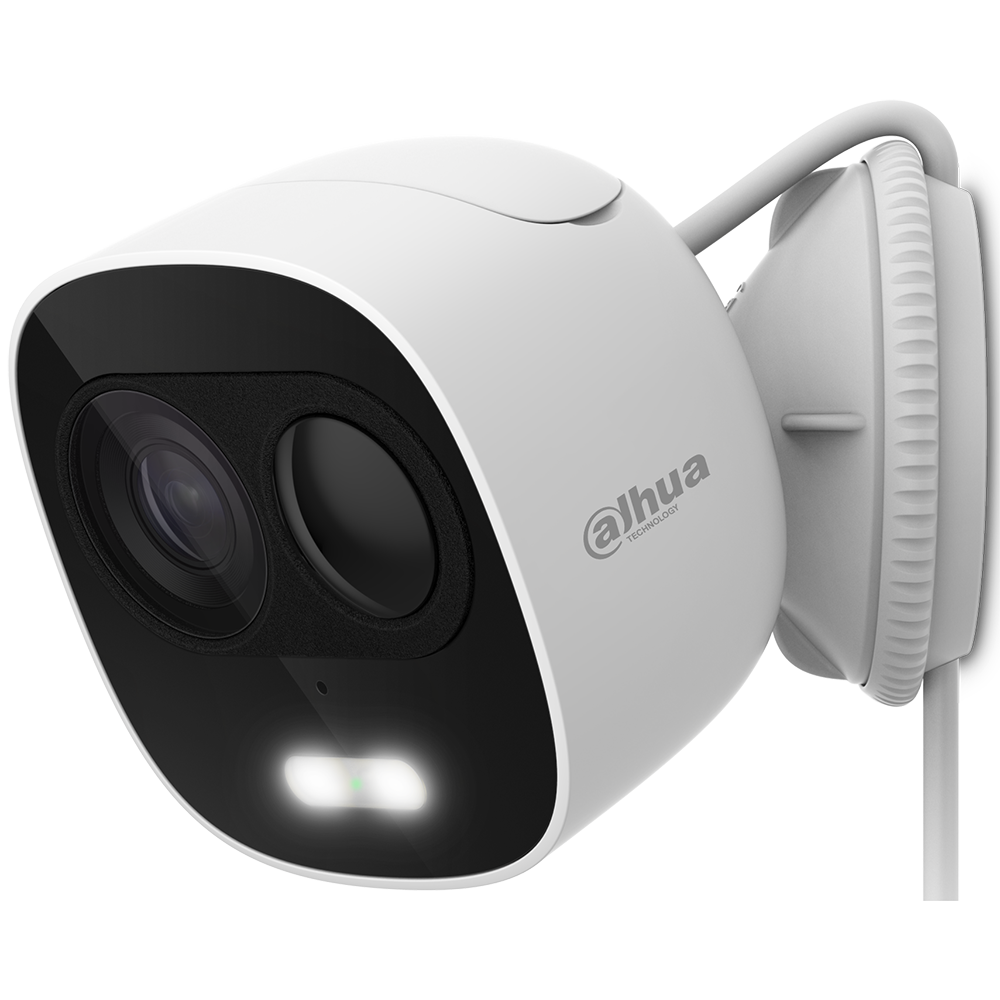

The IPC-C26EN Active Alarm camera is a component of the Dahua LincX2PRO camera series. The camera offers Passive IR motion detection and is capable of sounding a siren and turning on a spotlight when an intruder is detected. The device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application. The IPC-C26EN is certified to the IP65 Ingress Protection standard, making it the ideal camera for indoor and outdoor surveillance at homes and small retail or dining establishments.
