Dahua IPC-HUM8431-L3 Features
- Please note this only works with the Dahua DH-IPC-HUM8431N-E1 Processing Unit
Camera
- Image Sensor 1/2.7-in. 4 MP Progressive-scan CMOS
- Effective Pixels 2688(H) x 1520(V)
- Scanning System Progressive
- Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
- Minimum Illumination - Color: 0.006 lux at F1.8 (1/3 s, 30 IRE), Color: 0.04 lux at F1.8 (1/30 s, 30 IRE), B/W: 0.003 lux at F1.8 (1/3 s, 30 IRE), B/W: 0.02 lux at F1.8 (1/30 s, 30 IRE)
Lens
- Lens Type Fixed
- Mount Type Board-in
- Focal Length 2.8 mm
- Maximum Aperture F1.8
- Angle of View - Horizontal 109°, Vertical 60°
- Focus Control Fixed
Certifications
- Safety UL60950-1, EN 60950:2000
- Electromagnetic Compatibility, (EMC) FCC CFR 47 Part 15 Subpart B
Electrical
- Power Supply Via DH-IPC-HUM8431N-E1
Environmental
- Operating Conditions –30° C to +60° C (–22° F to +140° F) Less than 95% RH
- Storage Conditions –30° C to +60° C (–22° F to +140° F) Less than 95% RH
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions 30.50 mm x 57.59 mm (1.20 in. x 2.27 in.)
- Net Weight 0.40 kg (0.84 lb)
- Gross Weight 0.47 kg (1.04 lb)
Dahua IPC-HUM8431-L3 Overview

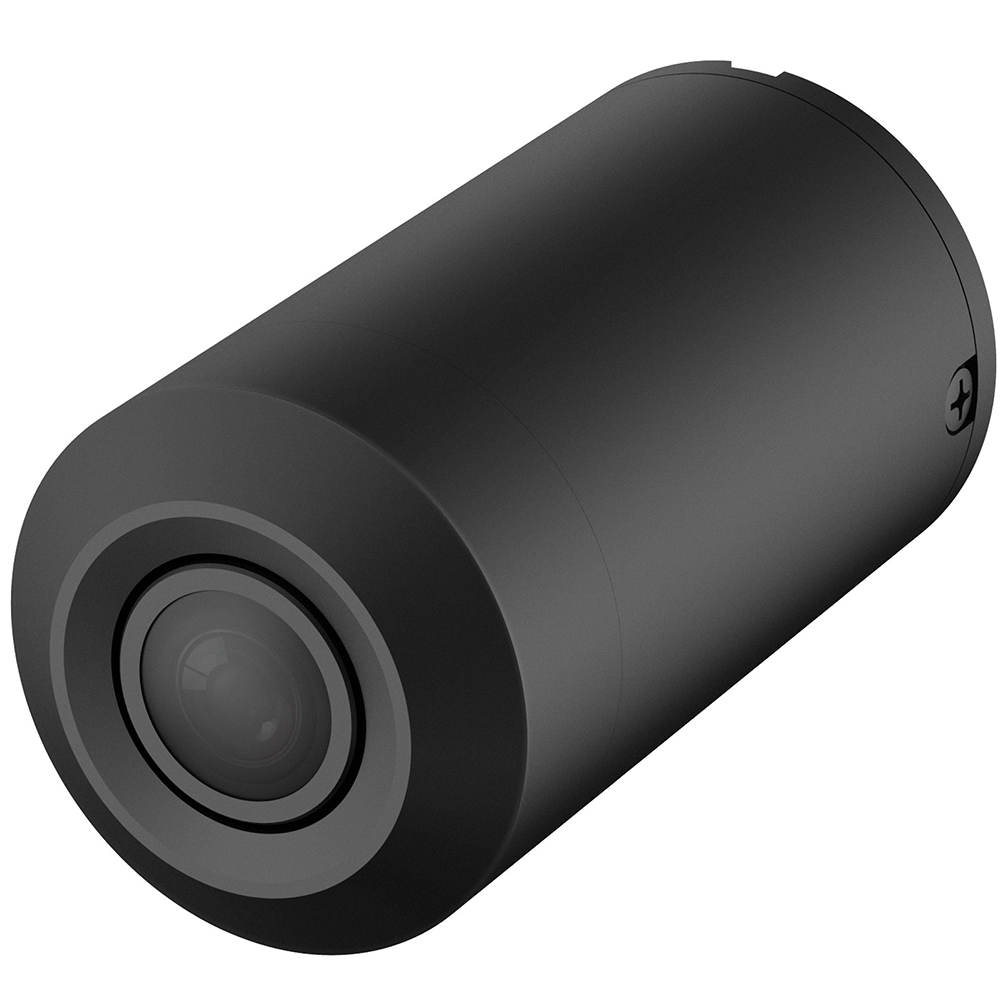

The Dahua IPC-HUM8431-L3 is the camera/lens unit for the Network Pinhole Camera system. This camera features a 4 MP progressive-scan sensor and 2.8 mm fixed lens. The IPC-HUM8431-L3 offers clear images in difficult lighting conditions thanks to its light sensitivity and True Wide Dynamic Range. This camera in conjunction with the DH-IPC-HUM8431N-E1 processing unit delivers a covert camera system suitable for banks, offices, and anywhere that discrete video surveillance is required.
