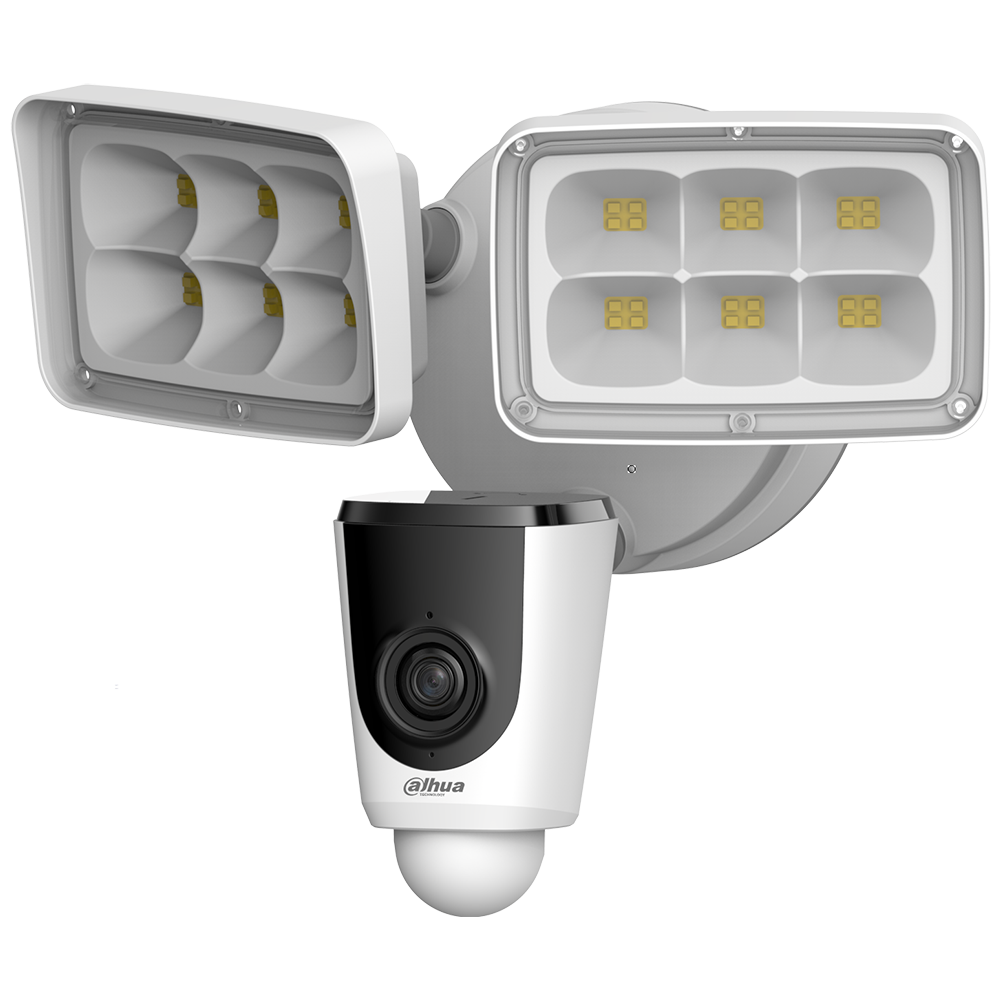

Dahua IPC-L26N 2MP WiFi Floodlight Network Camera

Dahua IPC-L26N Features

Camera

• Image Sensor 1/2.7-in. 2 MP CMOS
• Effective Pixels 1920 x 1080, 2 MP
• Scanning System Progressive
• IR Distance 10.0 m (32.81 ft)

Lens

• Lens Type Fixed
• Focal Length 2.8 mm
• Angle of View
• Horizontal 114°, Vertical 66°, Diagonal 137°

Video and Audio

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Resolution 2 MP at 30 fps
• Digital Zoom 16x
• Day/Night Auto (ICR)
• PIR
• Configurable area and distance: Coverage: up to 270°, Distance: up to 10.0 m (32.81 ft)

Audio

• Input Built-in Microphone
• Output Built-in Speaker with integrated 110 dB Siren

Network

• WiFi 2.4 GHz WiFi (IEEE802.11b/g/n)
• Antenna Internal Dual Antennae, 2 x 2 MIMO
• Interoperability CGI
• Mobile Operating System IOS, Android
• Edge Storage Micro SD Card Slot, maximum 256 GB
• Compatibility Any Dahua NVR, Dahua X5, X7, X82 Series HDCVI DVRs, Dahua DMSS Mobile Application

Floodlight

• Brightness 2000 lm
• Color Temperature 3000K
• Modes Manual, Passive Infrared Motion Detection (PIR), Dusk to Dawn

Certifications

• Safety UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011, + A2:2013, IEC 60950-1:2005 (2nd Ed.); Am1:2009 + Am2:2013
• Electromagnetic Compatibility (EMC) CFR 47 FCC Part 15 subpart B 2018, EN 55032:2015, EN 6100- 3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011/A1:2014, EN 55024:2010/A1:2015, EN 55035:2017

Electrical

• Power Supply 100 VAC to 240 VAC
• Power Consumption < 40 W

Environmental

• Operating Temperature –30° C to +50° C (–22° F to 122° F), Less than 95% RH
• Ingress Protection IP65

Construction

• Casing Metal and Plastic
• Dimensions 237.20 mm x 317.30 mm x 171.79 mm (9.30 in. x 12.50 in. x 6.80 in.)
• Net Weight 1.80 kg (3.97 lb)

Overview

The IPC-L26N Active Alarm Floodlight camera is a component of the Dahua LincX2PRO Series camera series. The camera offers Passive IR motion detection and is capable of sounding a siren and turning on a floodlight when an intruder is detected. The device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application. The IPC-L26N is certified to the IP65 Ingress Protection standard, making it the ideal camera for indoor and outdoor surveillance at homes and small retail or dining establishments.
