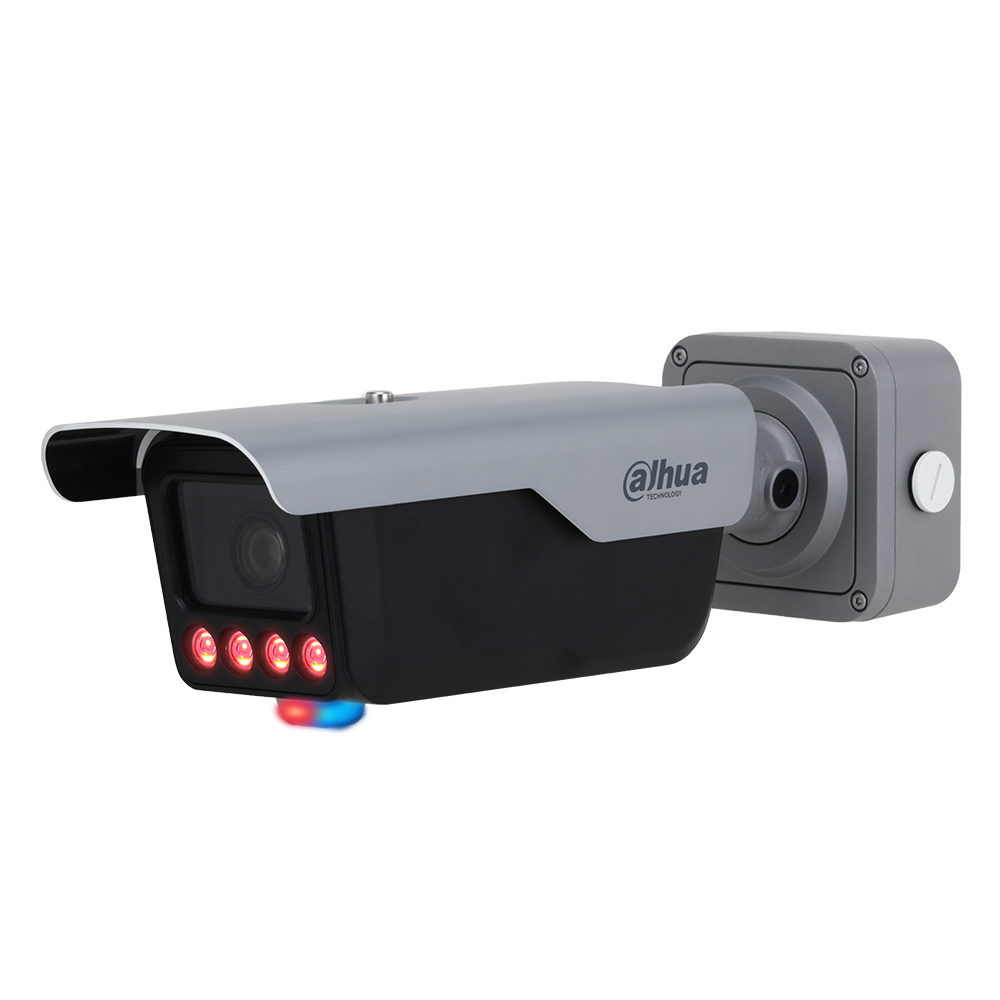

Dahua ITC413-PW4D-Z1 4MP LPR Entrance/Exit Camera with Junction Box (Short Lens)

The ITC413-PW4D-Z1 is a license plate recognition camera with a recording resolution of 2688 x 1520 (4MP) at 30 frames per second with a 1/1.8-in. CMOS sensor. The camera includes a 2.7 mm to 12 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 92° to 46.1° horizontal angle of view. The camera can capture and recognize license plates of vehicles traveling up to 80 kph (50 mph). The camera can be mounted between 3 m and 8 m (9.84 ft and 26.25 ft) from where the vehicles will be traveling. The ITC413-PW4D-Z1 coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management Active Alarm and parking solution.

• 1/1.8-in 4MP CMOS Sensor
• License Plate Recognition Distance Distance up to 8 m (26.25 ft)
• Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (50 mph)
• H.265 and H.264 Dual Codec
• 4MP (2688 x 1520) at 30 fps Maximum Resolution
• 2.7 mm to 12 mm Motorized Vari-focal Lens
• Supports Signal, Data, and Communication Interfaces and Connection to External Devices
• Dual Illuminators: 730 nm IR LED and warm LED lights
• Maximum Illumination Distance for ANPR 10 m (32.81 ft)
• Maximum Illumination Distance for Video Monitoring 30 m (98.43 ft)
• Supports Intrusion and Loitering Detection
• Built-in Microphone and Built-in Speaker
• Active Alarm with Red/Blue Lights and Siren or Voice Prompt
• IP67 Ingress Protection, IK10 Vandal Protection

4MP, Dual Illuminatiors (8 m (26.25 ft)) (730nm IR/ Warm Light), 2.7-12mm Motorized, 140dB WDR, Detection Distance: 3-8m, Covers 1 Lane, Built-in Mic, Built-in Speaker, IVS, Red/Blue Lights and Siren, With Junction Box
