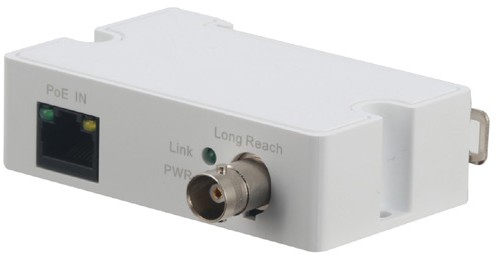

Dahua LR1002-1EC Single-port EoC Receiver
Dahua LR1002-1EC Single-port EoC Receiver

Dahua

Dahua LR1002-1EC Single-port EoC Receiver

$48.58
SKU: LR1002-1EC
Quantity:
Link to Manufacturer's Page

Contact

Dahua LR1002-1EC Features

  • Functional Ports: One (1) RJ45, 10/100 Mbps Base-TX, One (1) BNC
  • Transmission Distance: 100 Mbps: 400 m (1312 ft), 10 Mbps: 1000 m (3280 ft)
  • Power Consumption: < 2 W
  • Transmission Bandwidth: RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps
  • PoE Protocol: IEEE802.3af (PoE) and IEEE802.3at (PoE+)
  • Network Standards: IEEE802.3, IEEE802.3u, IEEE802.3x
  • Operating Temperature: – 30 °C to 65 °C (– 22 °F to 149 °F)
  • Application Humidity: 5% to 95%
  • Lightning Protection: Common Mode: 4 KV, Differential Mode: 2 KV
  • Dimensions (W x D x H): 79.0 mm x 52.0 mm x 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.)
  • Weight: 0.61 kg (1.34 lb)
  • Depending on your system, the LR1002 or LR1002-1ET is required with this unit. Please see the attached ePoE Configuration Guide image for more information.
