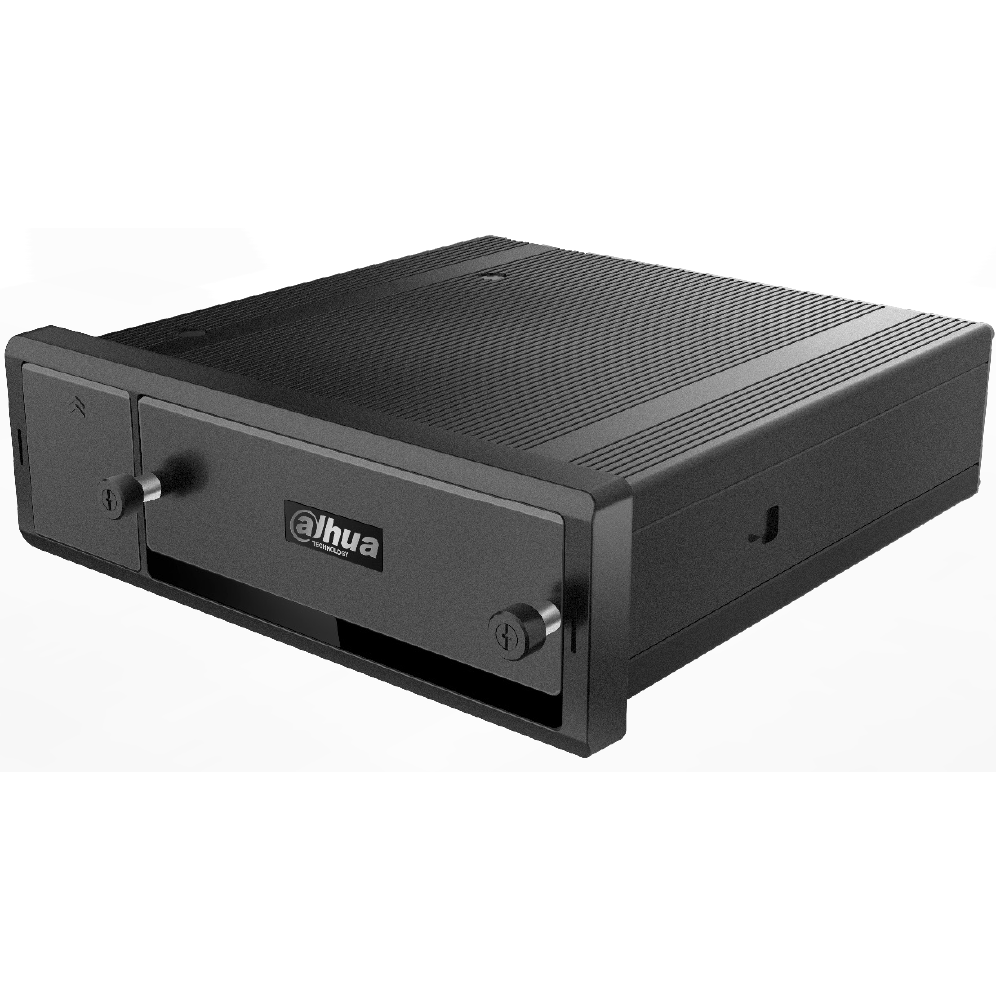

Dahua MN4104-VM 4CH M12-D Mobile NVR

Dahua MN4104-VM Features

System

• Main Processor Embedded Microprocessor
• Operating System Embedded LINUX

Video and Audio

• IP Camera Input Four (4) Channels, M12 A-coding Connectors
• Audio Input: One (1) Channel, Output: One (1) Channel

Display

• Interface One (1) HDMI Output Port, One (1) VGA Output Port, 10-pin Aviation, One (1) A/V Output Port, 4-pin M12 Aviation
• Resolution 800 x 600
• Display Split 1/4
• On-screen Display Camera Title, Time, GPS, License Number

Recording

• Video Compression H.265
• Audio Compression G.711A, G.711U, PCM
• Record Rate Four (4) Channels at 4 MP Real-time Recording
• Record Mode Manual, Schedule (Regular - Continuous, MD, Alarm), Stop
• Record Interval 1 minute to 120 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips
• Video Detection Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering
• Alarm Input Channels 1 to 8: Local Alarm Input, Alarm 10 Reserved for Panic Button
• Relay Output Two (2) Total Channels, One (1) Relay Output, One (1) Control 12 V Output

Playback and Backup

• Playback One (1) Channel
• Search Mode Time/Date, Alarm, Motion Detection, and
• Exact Search (accurate to one second)
• Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode USB Device/Network

Storage

• Internal HDD One (1) HDD Port, up to 2 TB per HDD
• SD Card One (1) SD Card Slot, up to 256 GB

Network

• Ethernet One (1) RJ-45 Port (10/100 Mbps)
• Wireless Network 3G/4G/LTE-FDD/Wi-Fi Module (Verizon, AT&T, T-Mobile supported)
• GPS High-accuracy GPS Module
• Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
• Maximum User Access 128 Users
• Mobile Operating System IOS, Android

Auxiliary Interface

• USB Front Panel: Two (2) USB 2.0 Ports
• RS232 Three (3) Ports, for PC Communication and Keyboard
• RS485 Two (2) Ports, for PTZ Control, One (1) Port, standard connection, One (1) Port 4-pin M12 Aviation
• GPS Use included GPS Antenna
• Wi-Fi Use included Wi-Fi Antenna
• 3G/4G/LTE-FDD Use included 4G Antenna

Electrical

• Power Supply 6 VDC to 36 VDC
• Power Consumption < 10.2 W, without HDD

Environmental

• Operating Temperature –10° C to +70° C (14° F to +158° F)
• Operating Humidity 10% to 90% RH
• Storage Conditions –30° C to +70° C (–22° F to +158° F), 0 to 90% RH

Construction

• Dimensions 180.0 mm × 190.0 mm × 50.0 mm (7.08 in. x 7.48 in. x 1.96 in.)
• Net Weight 1.92 kg (4.23 lb), without HDD
• Package Weight 2.93 kg (6.46 lb)
