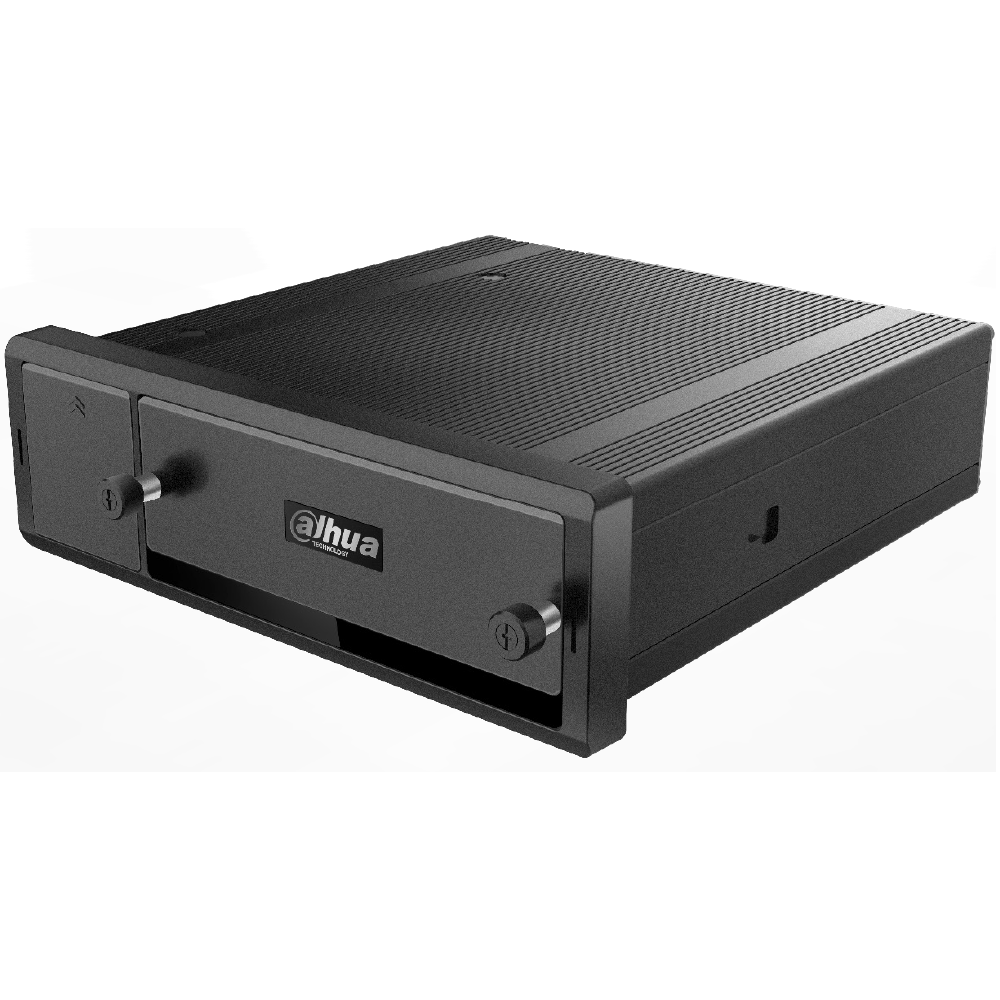

Dahua MN4208-VM
Dahua MN4208-VM 8CH M12-D Mobile NVR

Dahua

Dahua MN4208-VM 8CH M12-D Mobile NVR

$1,769.38
Discontinued
SKU: MN4208-VM
Link to Manufacturer's Page

Contact

Dahua MN4208-VM Features

System

  • Main Processor Embedded Microprocessor
  • Operating System Embedded LINUX

Video and Audio

  • IP Camera Input Eight (8) Channels
  • Audio Input: One (1) Channel, Output: One (1) Channel

Display

  • Interface One (1) HDMI Output Port, One (1) VGA Output Port, 10-pin Aviation, One (1) A/V Output Port, 4-pin M12 Aviation
  • Resolution 800 x 600
  • Display Split 1/4/8/9
  • On-screen Display Camera Title, Time, GPS, License Number

Recording

  • Video Compression H.265
  • Audio Compression G.711A, G.711U, PCM
  • Record Rate Eight (8) Channels at 4 MP Real-time Recording
  • Record Mode Manual, Schedule (Regular - Continuous, MD, Alarm), Stop
  • Record Interval 1 minute to 120 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s

Video Detection and Alarm

  • Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips
  • Video Detection Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering
  • Alarm Input Channels 1 to 8: Local Alarm Input, Alarm 10 Reserved for Panic Button
  • Relay Output Two (2) Total Channels, One (1) Relay Output, One (1) Control 12 V Output

Playback and Backup

  • Playback One (1) Channel
  • Search Mode Time/Date, Alarm, Motion Detection, and
  • Exact Search (accurate to one second)
  • Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup Mode USB Device/Network

Storage

  • Internal HDD Two (2) HDD Ports, up to 2 TB per HDD
  • SD Card One (1) SD Card Slot, up to 256 GB

Network

  • Ethernet One (1) RJ-45 Port (10/100/1000 Mbps)
  • Wireless Network 3G/4G/LTE-FDD/Wi-Fi Module (Verizon, AT&T, T-Mobile supported)
  • GPS High-accuracy GPS Module
  • Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
  • Maximum User Access 128 Users
  • Mobile Operating System IOS, Android

Interfaces

  • USB Front Panel: Two (2) USB 2.0 Ports
  • RS232 Three (3) Ports, for PC Communication and Keyboard
  • RS485 Two (2) Ports, for PTZ Control, One (1) Port, standard connection, One (1) Port 4-pin M12 Aviation
  • GPS Use included GPS Antenna
  • Wi-Fi Use included Wi-Fi Antenna
  • 3G/4G/LTE-FDD Cellular

Electrical

  • Power Supply 6 VDC to 36 VDC
  • Power Consumption < 11.1 W, without HDD

Environmental

  • Operating Temperature –10° C to +70° C (14° F to +158° F)
  • Operating Humidity 10% to 90% RH
  • Storage Conditions –30° C to +70° C (–22° F to +158° F), 0 to 90% RH

Construction

  • Dimensions 180.0 mm × 190.0 mm × 50.0 mm (7.08 in. x 7.48 in. x 1.96 in.)
  • Net Weight 2.05 kg (4.52 lb), without HDD
  • Package Weight 3.10 kg (6.83 lb)
