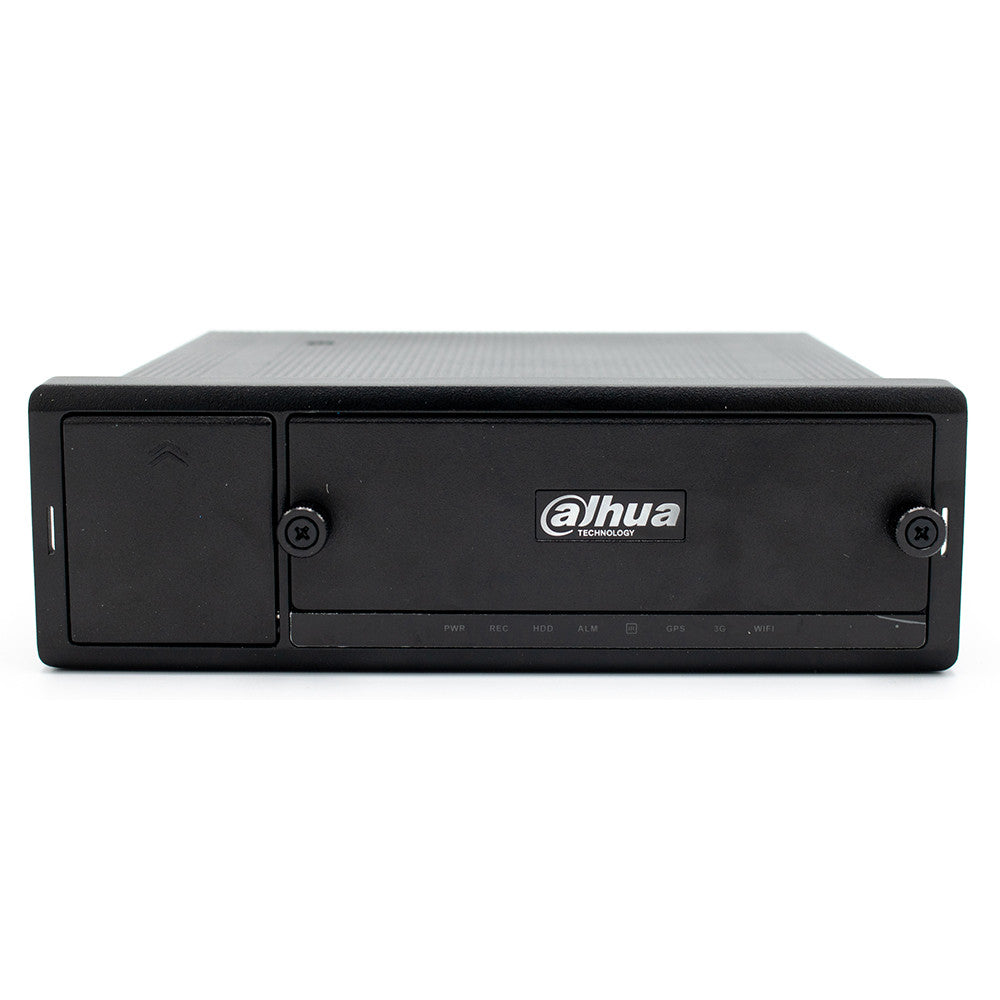

Dahua MX6212-VM Features
System
- Main Processor Embedded Microprocessor
- Operating System Embedded LINUX
Video and Audio
- Video Input Eight (8) Channels, HDCVI, AHD, TVI, CVBS; plus Four (4) IP Channels, up to 2 MP per input
- Supported Resolution Analog Cameras: 525 Lines, HDCVI Cameras: 1080p, IP Cameras: 1080p
- Connections Eight (8) Channels, M12 A-coded 4-pin Connectors, Four (4) M12 D-coded Connectors (for IP cameras)
- Audio, Two-way Talk One (1) Channel Input, One (1) Channel Output
Display
- Interface One (1) VGA Output Port, One (1) TV Output Port
- Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600
- Display Split 1/4/8/9/12
- Privacy Masking Four (4) Rectangular Zones (each camera)
- On-screen Display Camera Title, Time, Video Loss, Camera Lock,
- Motion Detection, Recording
Recording
- Video Compression H.264
- Audio Compression G.711
- Record Rate\ Main Stream 12 Channels of 1080p at 30 fps, Sub Stream D1 and CIF at 30 fps
- Bit Rate 48 Kbps to 8192 Kbps
- Record Mode Manual, Schedule (Regular - Continuous, MD, Alarm), Stop
- Record Interval 1 minute to 120 minutes (default: 60 minutes)
- Pre-record: 1 s to 30 s
- Post-record: 10 s to 300 s
Video Detection and Alarm
- Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips
- Video Detection Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and Tampering
- Alarm Input Nine (9) Channels: Channels 1 to 7: Local Alarm, Channels 8 to 9: Pulse Input
- Relay Output Two (2) Total Channels, One (1) Relay Output, One (1) Control 12V Output
Playback and Backup
- Playback Four (4) Channels
- Search Mode Time/Date, Alarm, Motion Detection, and Exact Search (accurate to one second)
- Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode USB Device/Network
Storage
- Internal HDD Two (2) SATA 2.5-in. HDD Ports, up to 2 TB per HDD
- SD Card One (1) SD Card Slot, up to 256 GB
Network
- Ethernet One (1) Ethernet Interface (10/100 Mbps)
- Wireless Network 3G/4G/Wi-Fi Module (Verizon, AT&T, T-Mobile supported)
- GPS High-accuracy GPS Module
- Network Function TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server
- Maximum User Access 128 Users
- Mobile Operating System IOS, Android
Auxiliary Interface
- USB Front Panel: Two (2) USB 3.0 Ports
- RS232 Two (2) Ports, for PC Communication and Keyboard
- RS485 One (1) Ports, for PTZ Control
Electrical
- Power Supply 6 VDC to 36 VDC
- Power Consumption < 12 W, without HDD
Environmental
- Operating Temperature –30° C to +60° C (–22° F to +131° F)
- Operating Humidity 10% to 9% RH
- Storage Conditions –30° C to +70° C (–22° F to +158° F), 0% to 90% RH
Construction
- Dimensions 180.0 mm × 190.0 mm × 50.0 mm (7.08 in. x 7.48 in. x 1.96 in.)
- Net Weight 1.92 kg (4.23 lb), without HDD
- Package Weight 3.40 kg (7.50 lb)
