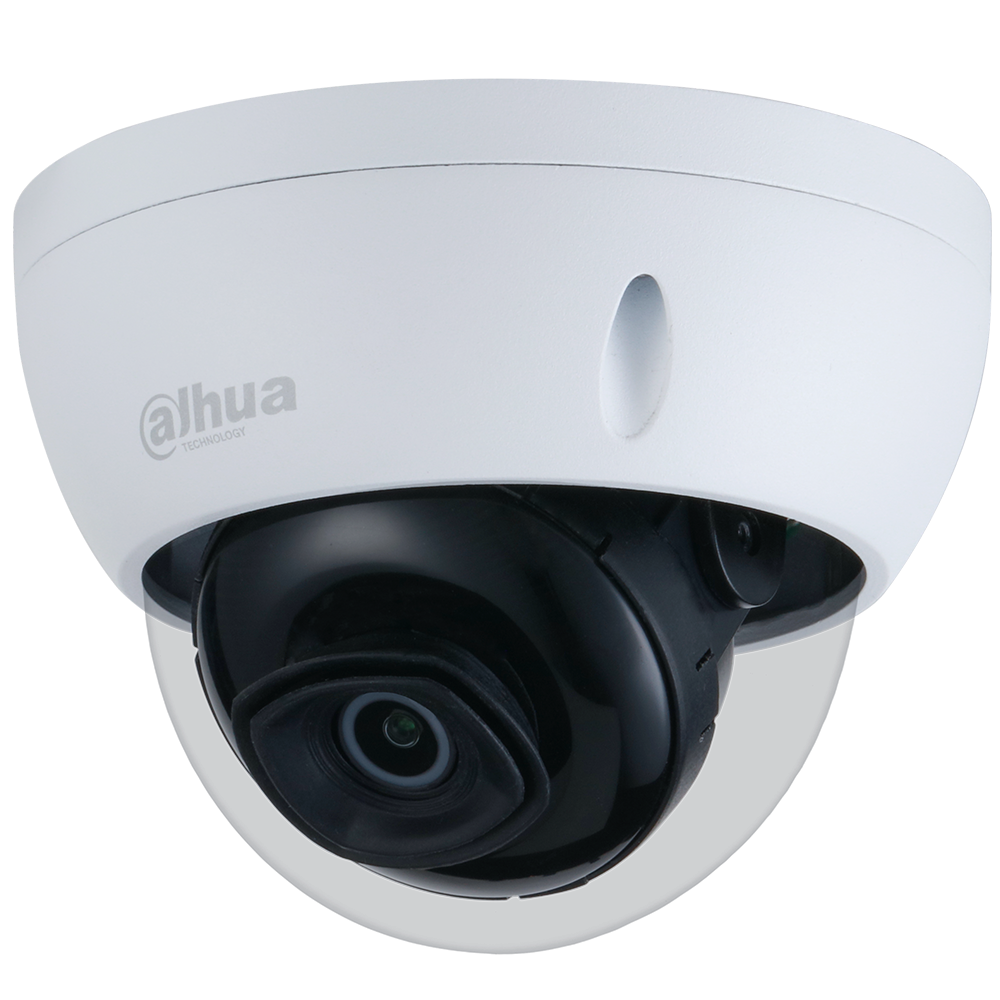

Dahua N22AL12 2MP Starlight 2.8mm Mini Dome Network Camera

Dahua N22AL12 Pro Features

Camera

• Image Sensor 1/2.7-in. 2 MP Progressive-scan CMOS
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 128 MB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100000 s
• Minimum Illumination Color: 0.005 lux at F1.6, 0 lux at F1.6 with IR on
• S/N Ratio > 56 dB
• IR Distance Distance up to 30.0 m (98.43 ft)
• IR On/Off Control Automatic
• IR LEDs Three (3)

Lens

• Lens Type Fixed
• Mount Type M12
• Focal Length 2.8 mm
• Maximum Aperture F1.6
• Angle of View Horizontal 110°, Vertical 59°, Diagonal 132°
• Focus Control Fixed
• Close Focus Distance 0.60 m (1.97 ft)

Pan/Tilt/Rotation Range

• Pan: 0˚ to 355˚
• Tilt: 0˚ to 65˚
• Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B
• Streaming Capability Two (2) Streams
• Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 1080p at 30 fps, Sub Stream 1: 704 x 480 at 30 fps
• Bit Rate Control CBR/VBR, Bit Rate H.264: 32 Kbps to 6144 Kbps, H.265: 12 Kbps to 6144 Kbps
• Day/Night Auto (ICR)
• BLC Mode BLC, HLC, Digital WDR
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Manual, Gain Priority, Shutter Priority
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangle)
• Region of Interest Off, On (4 Zones)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°, 90°, 180°, 270° (with 1080p resolution, supports 90° and 270°)
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangle)

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF (Profile S and G), CGI, Milestone, Genetec
• Streaming Method Unicast, Multicast
• Maximum User Access 20 Users
• Edge Storage FTP, Network Attached Storage (NAS), MicroSD Card Slot, maximum 256 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS, DMSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL60950-1, EN 60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B
• Electromagnetic Compatibility Directive 2014/30/EU

Electrical

• Power Supply 12 VDC or PoE (802.3af Class 0)
• Power Consumption Basic 12 VDC: 1.8 W, PoE: 2.2 W Maximum; Using H.265, IVS, and IR: 12 VDC: 4.4 W, PoE: 5 W

Environmental

• Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
• Storage Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions 109.90 mm x 81.0 mm (4.33 in. x 3.19 in.)
• Net Weight 0.35 kg (0.77 lb)
• Gross Weight 0.48 kg (1.06 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.

Overview

The Dahua Lite Series Network cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

For challenging low-light applications, Dahua’s Enhanced Starlight Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
