Dahua N24BL52

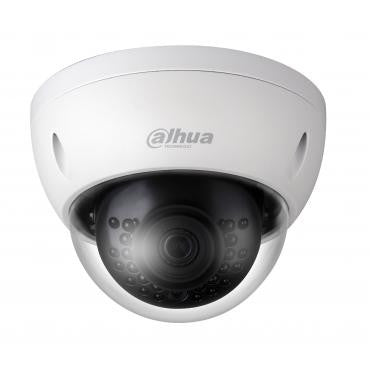

Dahua N24BL52 2MP IR Fixed Mini Dome Network Camera

Dahua

Dahua N24BL52 2MP IR Fixed Mini Dome Network Camera

$205.20
Discontinued
SKU: N24BL52 Pro
Link to Manufacturer's Page

Contact

Replaced by the N24CL52.

Dahua N42BL52 Features

Camera

  • Image Sensor 1/2.8-in. 2 MP Progressive Scan Exmor CMOS
  • Effective Pixels 1920(H) x 1080(V)
  • RAM/ROM 256 MB / 32 MB
  • Scanning System Progressive
  • Minimum Illumination Color: 0.009 lux at F2.0; 0 lux at F2.0 with IR on
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 30.0 m (98.40 ft)
  • IR On/Off Control Auto/ Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8 mm
  • Max. Aperture F2.0
  • Angle of View Horizontal 110° / Vertical 58°
  • Focus Control Fixed
  • Pan/Tilt/Rotation
  • Range Pan: 0˚ to 360˚
  • Tilt: 0˚ to 64˚
  • Rotation: 0˚ to 360˚

Video

  • Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Streaming Capability Three (3) Streams
  • Resolution 1080p (1920 x 1080); 1.3 MP (1280 x 960); 720p (1280 x 720); D1 (704 × 480); VGA (640 x 480); CIF (352 x 240)
  • Frame Rate Main Stream: 1080p or 720p at 60 fps
  • Sub Stream 1: D1 at 60 fps
  • Sub Stream 2: 1080p at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.265: 14 to 5632 Kbps; H.264: 24 to 9472 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, True WDR (120 dB)
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off, On (4 Zone, Rectangle)
  • Region of Interest Off, On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°, 90°, 180°, 270°
  • Mirror Off, On
  • Privacy Masking Off, On (4 Area, Rectangle)

Audio

  • Compression G.711a, G.711Mu, AAC, G.726

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast, Multicast
  • Max. User Access 10 Users / 20 Users
  • Edge Storage NAS
  • Local PC for Instant Recording
  • MicroSD Card, maximum 128 GB
  • Web Viewer IE, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android

Certifications

  • Safety UL60950-1
  • Electromagnetic Compatibility FCC Part 15 Subpart B

Interface

  • Audio Interface Input: One (1) Channel; Output: One (1) Channel
  • Alarm Input: One (1) Channel; Output: One (1) Channel

Electrical

  • Power Supply 12 VDC, PoE (802.3af, Class 0)
  • Power Consumption < 5 W

Environmental

  • Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions ø109.90 mm x 81.0 mm (ø4.33 in. x 3.19 in.)
  • Net Weight 0.41 kg (0.91 lb)
  • Gross Weight 0.53 kg (1.17 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features Tampering with the camera.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.

Premium Features

  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.

Advanced Features

  • Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.
