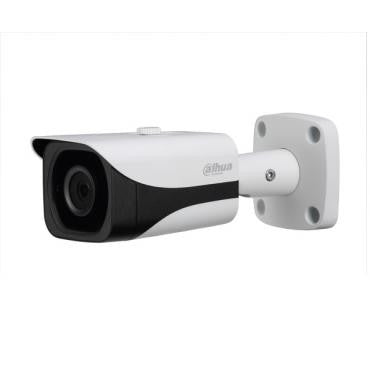

Dahua N24CB33 2MP 3.6mm ePoE MiniBullet Network Camera

Discontinued - Recommended Replacement N43AB52

Dahua N24CB33 Features

Camera

• Image Sensor 1/2.8-in. 2 MP Progressive-scan STARVIS™ CMOS
• Effective Pixels 1920(H) x 1080(V)
• RAM/ROM 256 MB/32 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.007 lux at F1.6 (1/3s, 30 IRE), Color: 0.06 lux at F1.6 (1/30 s, 30 IRE), 0 lux at F1.6 (IR on)
• S/N Ratio More than 50 dB
• IR Distance Distance up to 40 m (131.23 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Two (2)

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 3.6 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 87°, Vertical: 46°
• Focus Control Fixed
• Close Focus Distance 1.20 m (3.93 ft)

Pan/Tilt/Rotation Range

• Pan: 0Ëš to 360Ëš
• Tilt: 0Ëš to 90Ëš
• Rotation: 0Ëš to 360Ëš

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability Three (3) Streams
• Resolution 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 1080p at 60 fps, Sub Stream 1: D1 at 60 fps, Sub Stream 2: 1080p at 30 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 24K to 10240 Kbps
• H.265: 14K to 9984 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, TP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 10 Users /20 Users
• Edge Storage, Network Attached Storage (NAS), Local PC for Instant Recording
• Micro SD Slot, maximum 128 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS
• Smart Phone IOS, Android

Certifications

• Safety UL60950-1
• Electromagnetic Compatibility
• (EMC) FCC CFR 47 FCC Part 15 Subpart B

Electrical

• Power Supply 12 VDC, 1 A or PoE (IEEE 802.3af, Class 0)
• Power Consumption < 6 W

Environmental

• Operating Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Storage Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Lightning Protection 6 KV

Construction

• Casing Metal
• Dimensions 180.0 mm x 70.0 mm x 70.0 mm (7.09 in. x 2.76 in. x 2.76 in.)
• Net Weight 0.41 kg (0.91 lb)
• Gross Weight 0.53 kg (1.17 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/MissingObject A target leaves an object in designated area, or a target removes an object from the same designated area.
