Dahua

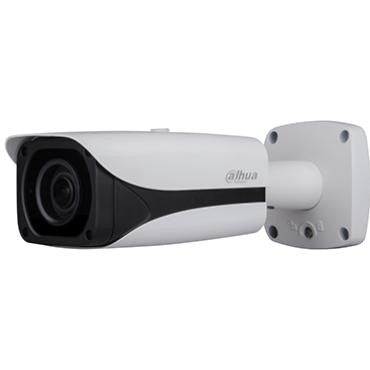

Dahua N25BB5Z 2MP IR Motorized Varifocal Bullet Network Camera
Replaced by the N25CB5Z.
Dahua N25BB5Z Features
Camera
- Image Sensor 1/2.8-in. 2 MP Progressive Scan CMOS
- Effective Pixels 1920(H) x 1080(V)
- RAM/ROM 256 MB / 32 MB
- Scanning System Progressive
- Minimum Illumination Color: 0.006 lux at F1.4; B/W: 0 lux at F1.4 (IR on)
- S/N Ratio More than 50 dB
- IR Distance up to 50 m (164.04 ft)
- IR On/Off Control Auto/ Manual
- IR LEDs Four (4)
Lens
- Lens Type Motorized / Auto Iris (DC)
- Mount Type Board-in
- Focal Length 2.7 mm to 12 mm
- Max. Aperture F1.4
- Angle of View Horizontal: 97° to 34°; Vertical: 52° to 20°
- Optical Zoom 4x
- Focus Control Motorized
- Close Focus Distance 0.30 m (0.98 ft)
Pan/Tilt/Rotation
- Range Pan: 0˚ to 360˚
- Tilt: 0˚ to 65˚
- Rotation: 0˚ to 360˚
Video
- Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
- Streaming Capability Three (3) Streams
- Resolution 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
- Frame Rate Main Stream: 1080p (1 to 60 fps)
- Sub Stream 1: D1 (1 to 60 fps)
- Sub Stream 2: 1080p (1 to 30 fps)
- Bit Rate Control CBR/VBR
- Bit Rate H.264: 24 to 9472 Kbps; H.265: 14 to 5632 Kbps
- Day/Night Auto (ICR) / Color / B/W
- BLC Mode BLC / HLC / WDR (120 dB)
- White Balance Auto / Natural / Street Lamp / Outdoor / Manual
- Gain Control Auto / Manual
- Noise Reduction 3D DNR
- Motion Detection Off / On (4 Zone, Rectangle)
- Region of Interest Off / On (4 Zone)
- Smart IR Support
- Digital Zoom 16x
- Flip 0° / 90° / 180° / 270°
- Mirror Off / On
- Privacy Masking Off / On (4 Area, Rectangle)
Intelligence
- IVS Tripwire, Intrusion, Abandoned/Missing Object
- Advanced Intelligent Functions Face Detection
Audio
- Compression G.711a / G.711Mu / AAC / G.726
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 10 Users /20 Users
- Edge Storage NAS
- Local PC for Instant Recording
- MicroSD Card, maximum 128 GB
- Web Viewer IE, Chrome, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android
Certifications
- Safety UL60950-1
- Electromagnetic Compatibility FCC Part 15 Subpart B
Interface
- Audio Interface In: One (1) Channel
- Out: One (1) Channel
- Alarm In: Two (2) Channels
- Out: One (1) Channel
Electrical
- Power Supply DC12V, PoE (802.3af, Class 0)
- Power Consumption < 11.5 W
Environmental
- Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Ingress Protection IP67
- Construction
- Casing Metal
- Dimensions 273.20 mm x 95.0 mm x 96.40 mm (10.76 in. x 3.74 in. x 3.79 in.)
- Net Weight 1.07 kg (2.36 lb)
- Gross Weight 1.40 kg (3.09 lb)
