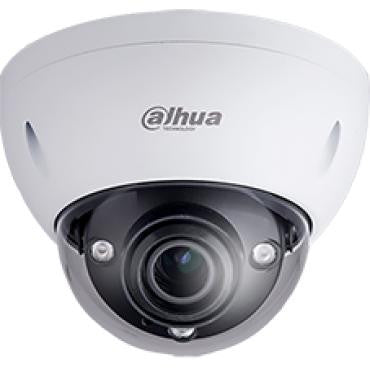

Dahua N28BL7Z 2MP IR Vari-focal Dome Network Camera
Dahua N28BL7Z 2MP IR Vari-focal Dome Network Camera

Dahua

Dahua N28BL7Z 2MP IR Vari-focal Dome Network Camera

$885.58
Discontinued
SKU: N28BL7Z
Link to Manufacturer's Page

Contact

Dahua N28BL7Z Features

Camera

  • Image Sensor: 1/1.9-in. 2 MP STARVIS™ CMOS
  • Effective Pixels: 1920(H) x 1080(V), 2 MP
  • RAM/ROM: 1024 MB / 128 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100,000 s
  • Minimum Illumination: Color: 0.002 lux at F1.53 (1/3 s, 30 IRE) Color: 0.01 lux at F1.53 (1/30 s, 30 IRE) 0 lux at F1.53 (with IR on)
  • S/N Ratio: More than 50 dB
  • IR Distance: Up to 50 m (164.04 ft)
  • IR On/Off Control: Auto / Manual
  • IR LEDs: Four (4)

Lens

  • Lens Type: Motorized, Auto Iris (HALL)
  • Mount Type: Board-in
  • Focal Length: 4.1 mm to 16.4 mm
  • Max. Aperture: F1.53
  • Angle of View: Horizontal: 92° to 32°, Vertical: 53° to 18°
  • Optical Zoom: 4x
  • Focus Control: Motorized Auto-focus
  • Close Focus Distance: 1.0 m (3.28 ft)

Pan/Tilt/Rotation

  • Range Pan: 0˚ to 355˚
  • Tilt: 0˚ to 65˚
  • Rotation: 0˚ to 355˚

Video

  • Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264
  • Streaming Capability: Three (3) Streams
  • Resolution: 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
  • Frame Rate: Main Stream: 1080p at 60 fps, Sub Stream: D1 at 60 fps, Sub Stream 2: 1080p at 60 fps
  • Bit Rate Control: CBR/VBR
  • Bit Rate: H.264: 24 Kbps to 10240 Kbps H.265: 14 Kbps to 6144 Kbps
  • Day/Night Auto: (ICR) / Color / B/W
  • BLC Mode: BLC / HLC / WDR (120 dB)
  • White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
  • Gain Control: Auto / Manual
  • Noise Reduction: 3D DNR
  • Motion Detection: Off / On (4 Zone, Rectangle)
  • Region of Interest: Off / On (4 Zone)
  • Advanced Features: Electronic Image Stabilization, Smart IR, Defog
  • Digital Zoom: 16x
  • Flip: 0° / 90° / 180° / 270°
  • Mirror: Off / On
  • Privacy Masking: Off / On (4 Area, Rectangle)

Audio

  • Compression: G.711a / G.711Mu / AAC / G.726

Network

  • Ethernet: RJ-45 (10/100 Base-T)
  • Protocol: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
  • Interoperability: ONVIF, PSIA, CGI
  • Streaming Method: Unicast, Multicast
  • Max. User Access: 10 Users / 20 Users
  • Edge Storage: NAS, Local PC for Instant Recording, MicroSD Card, maximum 128 GB
  • Web Viewer: IE, Chrome, Firefox, Safari
  • Management Software: Smart PSS, DSS
  • Mobile Operating System: IOS, Android

Certifications

  • Safety: UL60950-1
  • Electromagnetic Compatibility: FCC Part 15 Subpart B

Electrical

  • Power Supply: 12 VDC, 24 VAC or PoE+ (802.3at, Class 4)
  • Power Consumption: < 18 W

Environmental

  • Operating Conditions: –40° C to +60° C (–40° F to +140° F), Less than 95% RH
  • Storage Conditions: –40° C to +60° C (–40° F to +140° F), Less than 95% RH
  • Ingress Protection: IP67
  • Vandal Resistance: IK10

Construction

  • Casing: Metal
  • Dimensions: 159.10 mm x 117.90 mm (6.26 in. x 4.64 in.)
  • Net Weight: 0.96 kg (2.12 lb)
  • Gross Weight: 1.75 kg (3.56 lb)
