Dahua N41BL12-W

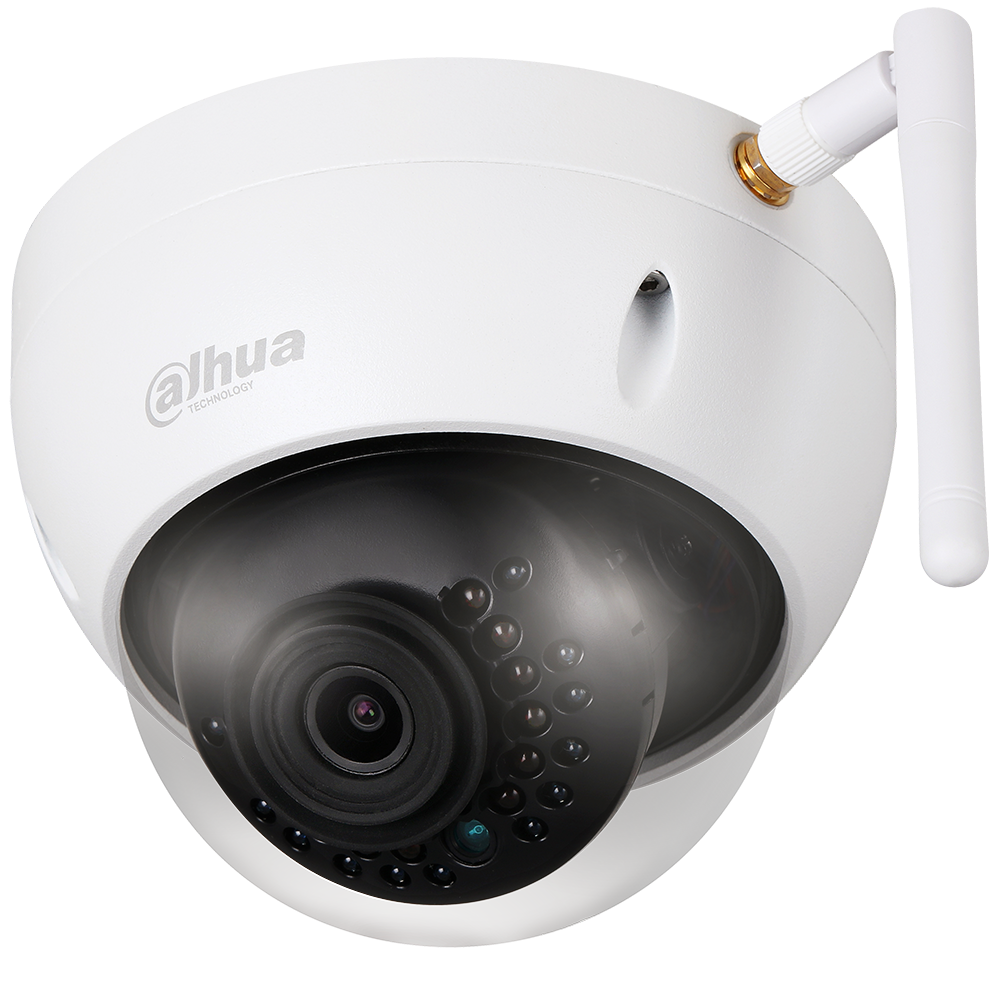

Dahua N41BL12-W 4MP WiFi MiniDome Network Camera

Dahua

Dahua N41BL12-W 4MP WiFi MiniDome Network Camera

$180.00
Discontinued
SKU: DUA-N41BL12-W Lite
Link to Manufacturer's Page

Contact

Discontinued - Recommended Replacement DH-IPC-HDBW1435EN-W-S2

Dahua N41BL12-W Features

Camera

  • Image Sensor 1/3-in. 4 MP Progressive-scan CMOS
  • Effective Pixels 2688 (H) x 1520 (V)
  • RAM/ROM 512 MB / 32 MB
  • Scanning System Progressive
  • Electronic Shutter
  • Speed Auto, Manual, 1 s to ~1/100,000 s
  • Minimum Illumination Color: 0.53 lux at F2.0 (1 s, 30 IRE) 0 Lux at F2.0 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 30 m (98.04 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8 mm
  • Maximum Aperture F2.0
  • Angle of View
  • Horizontal: 106°
  • Vertical: 56°
  • Diagonal: 127°
  • Focus Control Fixed
  • Range Pan: 0° to 355°, Tilt: 0° to 65°, Rotation: 0° to 355°

Video

  • Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Streaming Capability Two (2) Streams
  • Resolution 4 MP (2560 x 1440), 3 MP (2304 x 1296), 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), VGA (640 x 480), QVGA (320 x 240)
  • Frame Rate Main Stream 4 MP at 20 fps, 3 MP at 30 fps, 1080p at 30 fps, 1.3 MP at 30 fps, or 720p at 30 fps
  • Sub Stream VGA or QVGA at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H.265: 9 K to 8448 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, Digital WDR
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off, On (4 Zones, Rectangular)
  • Region of Interest Off, On (4 Zones)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°, 90°, 180°, 270°
  • Mirror Off, On
  • Privacy Masking Off, On (4 Areas, Rectangular)

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • WiFi 2.4 GHz WiFi (IEEE802.11a/b/g/n/ac)
  • Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP Interoperability PSIA, CGI
  • Streaming Method Unicast, Multicast
  • Maximum User Access 10 Users / 20 Users
  • Edge Storage
  • Network Attached Storage (NAS)
  • Local PC for Instant Recording,
  • Micro SD card Slot, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android

Certifications

  • Safety UL 60950
  • Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B 2AATL-8112MET

Electrical

  • Power Supply 12 VDC, 1 A
  • Power Consumption < 6.5 W
  • Power supply not included, we recommend the DH-PFM321D-US
