Dahua N42AC3Z

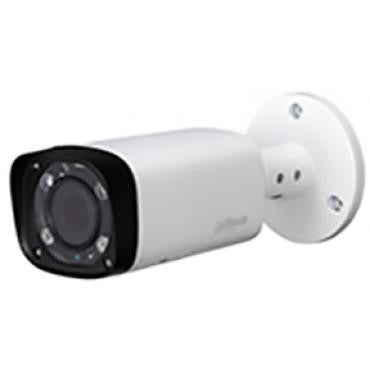

Dahua N42AC3Z 4MP IR Varifocal Bullet Network Camera

Dahua

Dahua N42AC3Z 4MP IR Varifocal Bullet Network Camera

$369.00
SKU: N42AC3Z
Quantity:
Link to Manufacturer's Page

Contact

Dahua N42AC3Z Features

Camera

  • Image Sensor 1/3-in. 4 MP Progressive CMOS
  • Effective Pixels 2688(H) x 1520(V)
  • RAM/ROM 256 MB / 16 MB
  • Scanning System Progressive
  • Minimum Illumination Color: 0.1 Lux at F1.4
  • 0 Lux at F1.4 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 60 m (197 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Four (4)

Lens

  • Lens Type Motorized
  • Mount Type Board-in
  • Focal Length 2.7 mm to 12 mm
  • Max. Aperture F1.4
  • Angle of View Horizontal: 35° to 100°
  • Vertical: 20° to 54°
  • Focus Control Auto
  • Close Focus Distance 0.3 m

Range

  • Pan/Tilt Pan: 0° to 360°
  • Tilt: 0° to 90°
  • Rotation: 0° to 360°

Video

  • Compression Smart H.264+¹, H.264
  • Streaming Capability Two (2) Streams
  • Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate

  • Main Stream 4 MP at 20 fps or 3 MP at 30 fps
  • Sub Stream D1, CIF at 30 fps
  • Bit Rate Control CBR, VBR
  • Bit Rate H264: 24 K to 8192 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, WDR (120 dB)
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual,
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off, On (4 Zone, Rectangle)
  • Region of Interest Off, On (4 Zone)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°/90°/180°/270°
  • Mirror Off, On
  • Privacy Masking Off, On (4 Area, Rectangle)

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 10 Users / 20 Users
  • Edge Storage NAS (Network Attached Storage)
  • Local PC for instant recording
  • Micro SD Card, max. 128 GB
  • Web Viewer IE, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android

Certifications

  • Safety UL 60950-1
  • Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Electrical

  • Power Supply DC12V, PoE (802.3af, Class 0)
  • Power Consumption < 12.95 W

Environmental

  • Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Ingress Protection IP67

Construction

  • Casing Metal
  • Dimensions 90.40 mm × 90.40 mm × 212.80 mm (3.56 in. x 3.56 in. x 8.40 in.)
  • Net Weight 0.68 kg (1.51 lb)
  • Gross Weight 0.86 kg (1.90 lb)
