Dahua

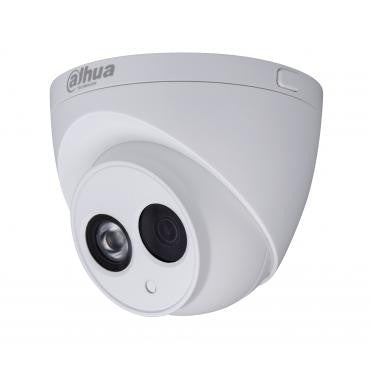

Dahua N44BG52 4MP IR Fixed Eyeball Network Camera
Replaced by the N44CG52.
Dahua N44BG52 Features
Camera
- Image Sensor 1/3-in. 4 MP Progressive Scan CMOS
- Effective Pixels 2688(H ) x 1520(V)
- RAM/ROM 512 MB / 32 MB
- Scanning System Progressive
- Minimum Illumination Color: 0.08 Lux at F2.0; 0 Lux at F2.0 with IR on
- S/N Ratio More than 50 dB
- IR Distance Distance up to 50.0 m (164.04 ft)
- IR On/Off Control Auto, Manual
- IR LEDs One (1)
Lens
- Lens Type Fixed
- Mount Type Board-in
- Focal Length 2.8 mm
- Max. Aperture F2.0
- Angle of View Horizontal 104° / Vertical 57°
- Focus Control Fixed
- Pan/Tilt/Rotation
- Range Pan: 0˚ to 360˚
- Tilt: 0˚ to 78˚
- Rotation: 0˚ to 360˚
Video
- Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
- Streaming Capability Three (3) Streams
- Resolution 4 MP (2688 x 1520); 3 MP (2304 x 1296); 1080p (1920 x 1080); 1.3 MP (1280 x 960); D1 (704 x 480); VGA (640 x 480); CIF (352 x 240)
- Frame Rate Main Stream: 4 MP at 30 fps
- Sub Stream: D1 at 30 fps
- Third Stream: 720p at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.264: 24 to 10240 Kbps; H.265: 14 to 6144 Kbps
- Day/Night Auto(ICR), Color, B/W
- BLC Mode BLC, HLC, True WDR (120 dB)
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual
- Gain Control Auto, Manual
- Noise Reduction 3D DNR
- Motion Detection Off, On (4 Zone, Rectangle)
- Region of Interest Off, On (4 Zone)
- Smart IR Support
- Digital Zoom 16x
- Flip 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (4 Area, Rectangle)
Audio
- Compression G.711a, G.711Mu, AAC, G.726
- Audio Interface Built-in Microphone
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,
- FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
- UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP,
- IGMP, SNMP
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast, Multicast
- Max. User Access 10 Users / 20 Users
- Edge Storage NAS
- Local PC for Instant Recording
- MicroSD Card, maximum 128 GB
- Web Viewer IE, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android
Certifications
- Safety UL60950-1
- Electromagnetic Compatibility FCC Part 15 Subpart B
Electrical
- Power Supply 12 VDC, PoE (802.3af, Class 0)
- Power Consumption < 5 W
Environmental
- Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions ø106.0 mm x 93.70 mm (ø4.17 in. x 3.69 in.)
- Net Weight 0.47 kg (1.04 lb)
- Gross Weight 0.65 kg (1.43 lb)
Intelligence
- IVS triggers an alarm and takes a defined action for the following events:
- Standard Features Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
Premium Features
- Motion An object moves through any part of the scene.
- Tripwire A target crosses a user-defined line.
- Intrusion A target enters or exits a defined perimeter.
- Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
- Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
- Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.
