Dahua N44CG52

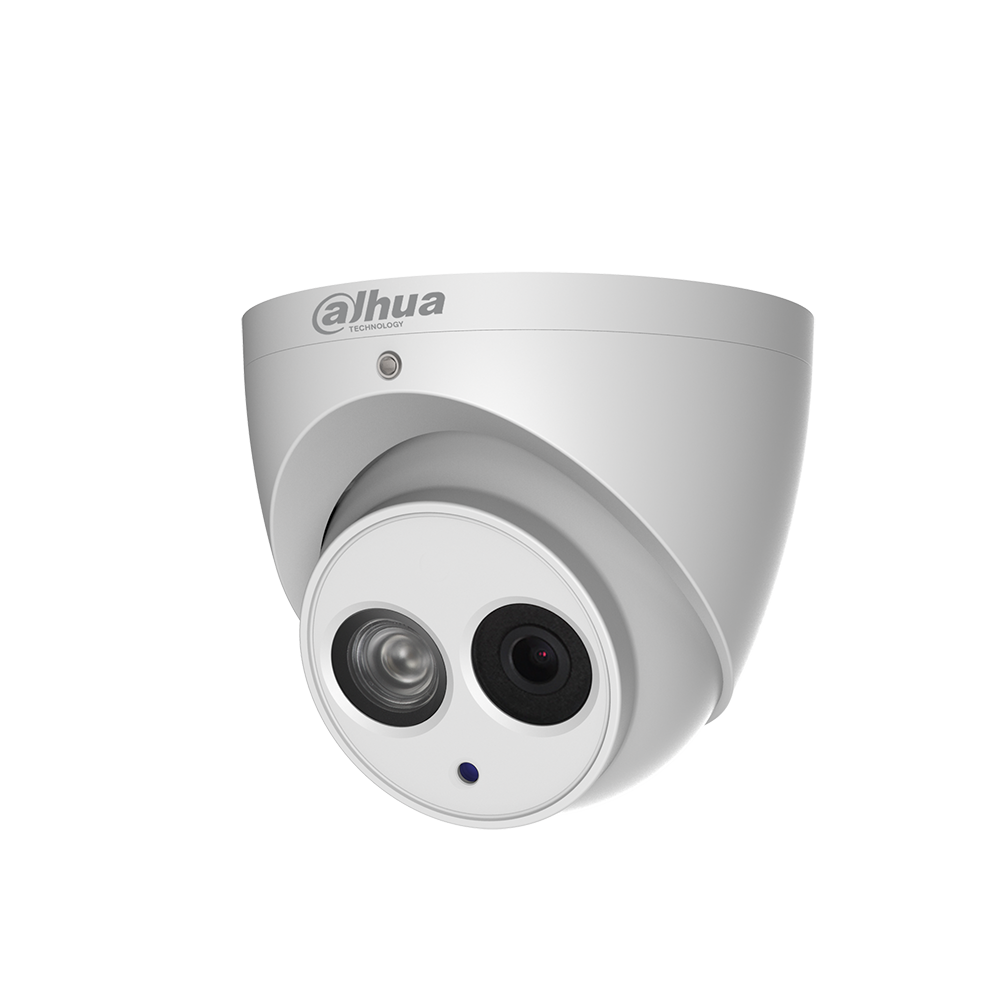

Dahua N44CG52 4MP 2.8mm ePoE Eyeball Network Camera

Dahua

Dahua N44CG52 4MP 2.8mm ePoE Eyeball Network Camera

$180.00
Discontinued
SKU: N44CG52
Link to Manufacturer's Page

Contact

Dahua N44CG52 Features

Camera

  • Image Sensor 1/3-in. 4 MP Progressive-scan CMOS
  • Effective Pixels 2688(H) x 1520(V)
  • RAM/ROM 512 MB/32 MB
  • Scanning System Progressive
  • Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
  • Minimum Illumination Color: 0.06 lux at F1.6 (1/3 s, 30 IRE), Color: 0.4 lux at F1.6 (1/30 s, 30 IRE), 0 lux at F1.6 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 50 m (164.04 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs One (1)

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 2.8 mm
  • Maximum Aperture F1.6
  • Angle of View Horizontal: 104°, Vertical: 58°
  • Focus Control Fixed
  • Close Focus Distance 1.10 m (3.61 ft)

Pan/Tilt/Rotation Range

  • Pan: 0˚ to 360˚
  • Tilt: 0˚ to 78˚
  • Rotation: 0˚ to 360˚

Video

  • Compression Smart H.265+, H.265, Smart H.264+, H.264
  • Streaming Capability Three (3) Streams
  • Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480) CIF (352 x 240)
  • Frame Rate Main Stream: 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: 720p at 30 fps
  • Bit Rate Control CBR/VBR
  • Bit Rate H.264: 24K to 10240 Kbps
  • H.265: 14K to 9984 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, True WDR (120 dB)
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off, On (4 Zones, Rectangular)
  • Region of Interest Off, On (4 Zones)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°, 90°, 180°, 270°
  • Mirror Off, On
  • Privacy Masking Off, On (4 Areas, Rectangular)

Audio

  • Compression G.711a, G.711Mu, AAC, G.726

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 10 Users / 20 Users
  • Edge Storage Network Attached Storage (NAS), Local PC for Instant Recording, Micro SD Slot, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software SmartPSS, DSS
  • Smart Phone IOS, Android

Certifications

  • Safety UL60950-1
  • Electromagnetic Compatibility
  • (EMC) FCC CFR 47 FCC Part 15 Subpart B

Interface

  • Audio Input: Built-in Microphone

Electrical

  • Power Supply 12 VDC, 1 A or PoE (IEEE 802.3af, Class 0)
  • Power Consumption < 5.5 W

Environmental

  • Operating Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Storage Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Ingress Protection IP67
  • Lightning Protection 6 KV

Construction

  • Casing Metal
  • Dimensions ø106.0 mm x 93.70 mm (ø4.17 in. x 3.69 in.)
  • Net Weight 0.47 kg (1.04 lb)
  • Gross Weight 0.65 kg (1.43 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera.
  • Error writing to an onboard Micro SD card.
  • Error sending or receiving data over the network.
  • Unauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
