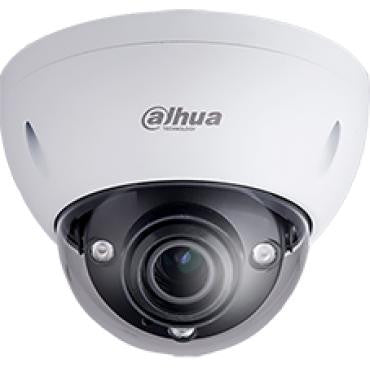

Dahua N45BL5Z 4MP IR Motorized Varifocal Dome Network Camera

Replaced by the N45CL5Z.

Dahua N45BL5Z Features

Camera

• Image Sensor 1/3-in. 4 MP Progressive Scan CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 512 MB / 32 MB
• Scanning System Progressive
• Minimum Illumination Color: 0.03 lux at F1.4; B/W: 0 lux at F1.4 (IR on)
• S/N Ratio More than 50 dB
• IR Distance Distance up to 50 m (164.04 ft)
• IR On/Off Control Auto/ Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized/ Auto Iris(DC)
• Mount Type Board-in
• Focal Length 2.7 mm to 12 mm
• Max. Aperture F1.4
• Angle of View Horizontal: 100° to 35°; Vertical: 54° to 20°
• Optical Zoom 4x
• Focus Control Motorized
• Close Focus Distance 0.30 m (0.98 ft)

Pan/Tilt/Rotation

• Range Pan: 0˚ to 355˚
• Tilt: 0˚ to 65˚
• Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 4 MP (1 to 30 fps)
• Sub Stream 1: D1 (1 to 30 fps)
• Sub Stream 2: 720p (1 to 30 fps)
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 24 to 10240 Kbps; H.265: 14 to 9984 Kbps
• Day/Night Auto (ICR) / Color / B/W
• BLC Mode BLC / HLC / WDR (120 dB)
• White Balance Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control Auto / Manual
• Noise Reduction 3D DNR
• Motion Detection Off / On (4 Zone, Rectangle)
• Region of Interest Off / On (4 Zone)
• Smart IR Support
• Digital Zoom 16x
• Flip 0° / 90° / 180° / 270°
• Mirror Off / On
• Privacy Masking Off / On (4 Area, Rectangle)

Intelligence

• IVS Tripwire, Intrusion, Abandoned/Missing Object
• Advanced Intelligent Functions Face Detection

Audio

• Compression G.711a / G.711Mu / AAC / G.726

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 10 Users /20 Users
• Edge Storage NAS
• Local PC for Instant Recording
• MicroSD Card, maximum 128 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL60950-1
• Electromagnetic Compatibility FCC Part 15 Subpart B

Interface

• Audio Interface In: One (1) Channel
• Out: One (1) Channel
• Alarm In: One (1) Channel
• Out: One (1) Channel

Electrical

• Power Supply DC12V, AC24V, PoE (802.3af, Class 0)
• Power Consumption < 12.5 W

Environmental

• Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
• Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions Φ159.10 mm×117.90 mm (Φ6.26 in. x 4.64 in.)
• Net Weight 0.89 kg (1.96 lb)
• Gross Weight 1.13 kg (2.49 lb)
