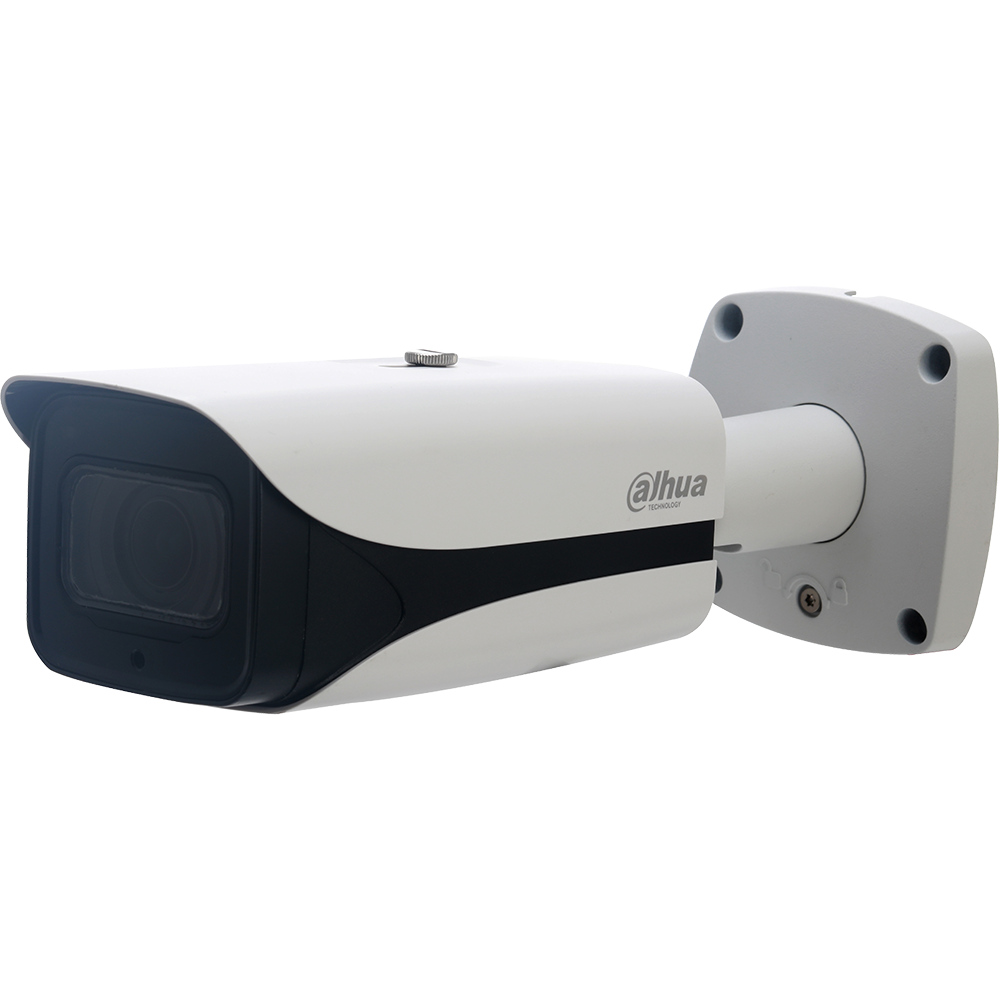

Dahua N45DB7Z 4MP IR Starlight+ Vari-focal ePoE Bullet Network Camera

Dahua N45DB7Z Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 1 GB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.0024 lux at F1.8 (1/3 s, 30 IRE) Color: 0.029 lux at F1.8 (1/30 s, 30 IRE) 0 lux at F1.8 (with IR on)
• S/N Ratio More than 56 dB
• IR Distance Distance up to 50 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized, Auto Iris (DC)
• Mount Type Board-in
• Focal Length 2.7 mm to 12 mm
• Maximum Aperture F1.8
• Angle of View Horizontal: 114° to 47°, Vertical: 62° to 26°
• Optical Zoom 4.4x
• Focus Control Motorized
• Close Focus Distance 1.20 m (3.94 ft)

Pan/Tilt/Rotation Range

• Pan: 0˚ to 360˚
• Tilt: 0˚ to 90˚
• Rotation: 0˚ to 360˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480) CIF (352 x 240)
• Frame Rate Main Stream:4 MP (2688 x 1520) at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 11 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32 Kbps to 8192 Kbps H.265: 19 Kbps to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual, Gain Priority, Shutter Priority
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Smart IR Support
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users
• Edge Storage Network Attached Storage (NAS) FTP
• Micro SD Slot, maximum 256 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS, P2P
• Smart Phone IOS, Android

Certifications

• Safety UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN60950-1
• Electromagnetic Compatibility FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU

Interface

• Audio Input: Input: One (1) Channel Output: One (1) Channel
• Alarm Input: Input: Two (2) Channels (5 mA, 5 VDC) Output: One (1) Channel (300 mA, 12 VDC)

Electrical

• Power Supply 12 VDC or PoE+ (IEEE 802.3at, Class 4)
• Power Consumption 12 VDC Standard: 3 W with IR ON: 12.1 W with heater ON: 10.3 W, PoE+ Standard: 3.7 W with IR ON: 15.2 W with heater ON: 12.5 W

Environmental

• Operating Temperature –40° C to +60° C (–40° F to +140° F), 10% to 95% RH
• Storage Temperature +5° C to +40° C (41° F to +104° F), 10% to 95% RH (daily temperature difference within 15° C/59° F )
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal and Plastic
• Dimensions 273.20 mm x 95.0 mm x 95.0 mm (10.76 in. x 3.74 in. x 3.74 in.)
• Net Weight 1.11 kg (2.44 lb)
• Gross Weight 1.51 kg (3.33 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Intrusion A target enters or exits a defined perimeter.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Features
• Facial Detection Detects and captures a snapshot of a human face in a defined area within a scene.

Dahua N45DB7Z Description

The Dahua 4 MP Starlight+ ePoE camera offers Analytics+ functions at the edge – performing complex real-time face capture, people counting, and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight+, True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.
