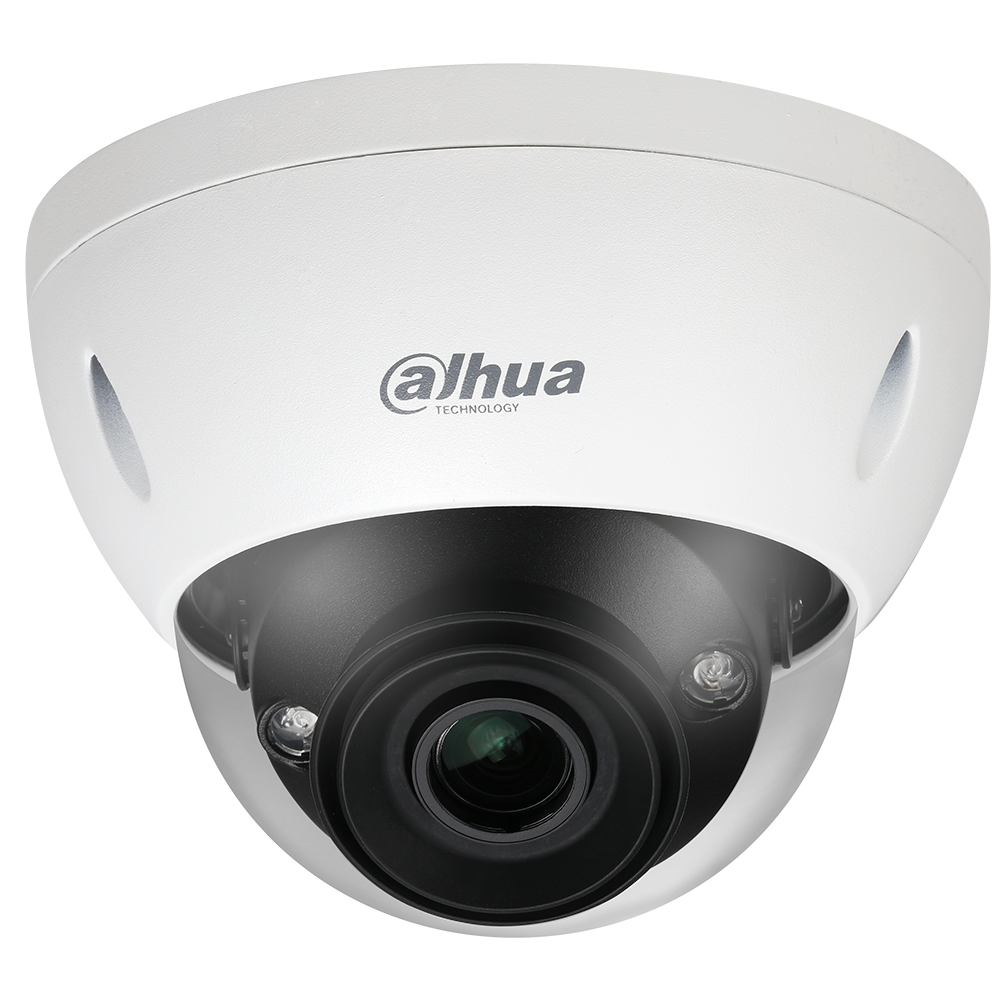

Dahua N45DL7Z 4MP IR Starlight+ Vari-focal ePoE Dome Camera

Dahua N45DL7Z Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 1 GB / 128 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: 0.0024 lux at F1.8 (1/3 s, 30 IRE) Color: 0.029 lux at F1.8 (1/30 s, 30 IRE) 0 lux at F1.8 (with IR on)
• S/N Ratio More than 56 dB
• IR Distance Distance up to 45.0 m (147.64 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized
• Mount Type Board-in
• Focal Length 2.7 mm to 12 mm
• Maximum Aperture F1.8
• Angle of View Horizontal: 114° to 47° Vertical: 62° to 26°
• Focus Control Motorized
• Close Focus Distance 1.20 m (3.94 ft)

Pan/Tilt/Rotation

• Range Pan: 0˚ to 355˚, Tilt: 0˚ to 65˚, Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only)
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480) CIF (352 x 240)
• Frame Rate Main Stream: 4 MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 11 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32 Kbps to 8192 Kbps H.265: 19 Kbps to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Manual, Gain Priority, Shutter Priority
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Advanced Features Electronic Image Stabilization (EIS), Smart IR, Defog
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726, G.723

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users
• Edge Storage Network Attached Storage (NAS) FTP Micro SD Slot, maximum 256 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS, P2P
• Smart Phone IOS, Android

Certifications

• Safety UL60950-1
• Electromagnetic Compatibility
• (EMC) FCC CFR 47 FCC Part 15 Subpart B

Interface

• Video One (1) Port, for adjustment only
• Audio Input: One (1) Channel Output: One (1) Channel
• Alarm Input: One (1) Channel (5 mA, 5 VDC) Output: One (1) Channel (300 mA, 12 VDC)

Electrical

• Power Supply 12 VDC, 24 VAC, or PoE+ (IEEE 802.3at, Class 4)
• Power Consumption 12 VDC Standard: 4.9 W with IR ON: 18.7 W with heater ON: 15.5 W
• 24 VAC Standard: 5.1 W with IR ON: 17.6 W with heater ON: 14.7 W
• PoE+ Standard: 5.2 W with IR ON: 16.8 W with heater ON: 13.5 W

Environmental

• Operating Temperature –40° C to +60° C (–40° F to +140° F), 10% to 95% RH
• Storage Temperature +5° C to +40° C (41° F to +104° F), 10% to 95% RH (daily temperature difference within 15° C/59° F )
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal and Plastic
• Dimensions ø159.10 mm x 117.90 mm (6.26 in. x 4.64 in.)
• Net Weight 0.95 kg (2.09 lb)
• Gross Weight 1.20 kg (2.65 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• • IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Tripwire A target crosses a user-defined line.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Facial Detection
• Detects and captures a snapshot of a human face in a defined area within a scene.
