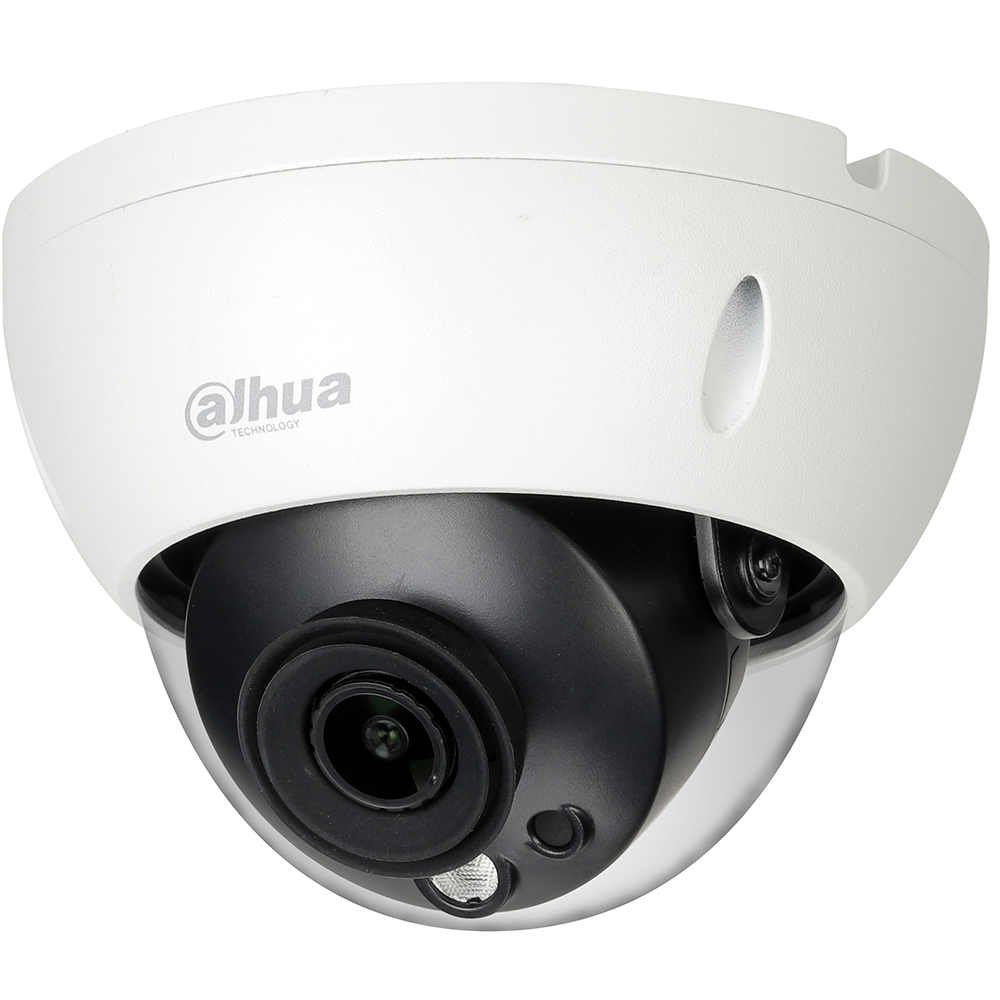

Dahua N45DM62 4MP IR Starlight+ 2.8mm ePoE Dome Network Camera

Dahua N45DM62 Features

Camera

• Image Sensor 1/1.8-in. 4 MP CMOS
• Effective Pixels 2688(H) x 1520(V)
• RAM/ROM 512 MB/32 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
• Minimum Illumination Color: Color: 0.0016 lux at F1.6 (1/3 s, 30 IRE) Color: 0.015 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 (IR on)
• S/N Ratio Greater than 56 dB
• IR Distance Distance Up to 26 m (85.30 ft)
• IR On/Off Control Auto, Manual
• IR LEDs One (1)

Lens

• Lens Type Fixed
• Mount Type Board-in
• Focal Length 2.8 mm
• Maximum Aperture F1.6
• Angle of View Horizontal: 113°, Vertical: 60°
• Focus Control Fixed
• Close Focus Distance 1.30 m (4.27 ft)

Pan/Tilt/Rotation

• Range Pan: 0˚ to 355˚, Tilt: 0˚ to 65˚, Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (Sub Stream only)
• Streaming Capability Three (3) Streams
• Resolution 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480) CIF (352 x 240)
• Frame Rate Main Stream:4 MP (2688 x 1520) at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 1080p at 11 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 32 Kbps to 8192 Kbps H.265: 19 Kbps to 8192 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, True WDR (120 dB), SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain Control Auto, Manual, Gain Priority, Shutter Priority
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangular)
• Region of Interest Off, On (4 Zones)
• Smart IR, Defog
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangular)

Audio

• Compression G.711a, G.711Mu, AAC, G.726, G.723

Network

• Ethernet RJ-45 (10/100 Base-T)
• Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 20 Users
• Edge Storage Network Attached Storage (NAS) FTP Micro SD Slot, maximum 256 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software SmartPSS, DSS
• Smart Phone IOS, Android

Certifications

• Safety UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN60950-1
• Electromagnetic Compatibility - FCC CFR 47 Part 15 Subpart B Electromagnetic Compatibility Directive 2014/30/EU

Interface

• Audio Input: Input: One (1) Channel Output: One (1) Channel
• Alarm Input: Input: One (1) Channel (5 mA, 5 VDC) Output: One (1) Channel (300 mA, 12 VDC)

Electrical

• Power Supply 12 VDC or PoE (IEEE 802.3af, Class 0)
• Power Consumption 12 VDC Standard: 2.8 W with IR ON: 5.6 W PoE Standard: 3.3 W with IR ON: 6.1 W

Environmental

• Operating Temperature –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Storage Temperature +5° C to +40° C (41° F to +104° F), 10% to 95% RH (daily temperature difference within 15° C/59° F )
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø122.0 mm x 88.90 mm (4.80 in. x 3.50 in.)
• Net Weight 0.47 kg (1.04 lb)
• Gross Weight 0.63 kg (1.39 lb)

Intelligence

• IVS triggers an alarm and takes a defined action for the following events:
• Standard Features
• Tampering with the camera.
• Error writing to an onboard Micro SD card.
• Error sending or receiving data over the network.
• Unauthorized access to the camera.
• IP Address Conflict
• Premium Features
• Motion An object moves through any part of the scene.
• Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
