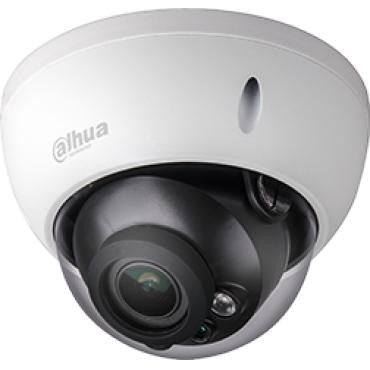

Dahua N52BM3Z 5MP IR Vari-focal Dome Network Camera

Discontinued - Recommended Replacement: is N53CM6Z

Dahua N52BM3Z Pro Features

Camera

• Image Sensor: 1/2.7-in. 5 MP Progressive-scan CMOS
• Effective Pixels: 2592(H) x 1944(V)
• RAM/ROM: 512 MB / 32 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
• Minimum Illumination: Color: 0.008 lux at F1.6 (1/3 s, 30 IRE) Color: 0.08 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 with IR on
• S/N Ratio: More than 50 dB
• IR Distance: Up to 30 m (98 ft)
• IR On/Off Control: Auto, Manual
• IR LEDs: Two (2)

Lens

• Lens Type: Motorized
• Mount Type: Board-in
• Focal Length: 2.7 mm to 13.5 mm
• Max. Aperture: F1.6
• Angle of View Horizontal: 27° to 95° Vertical: 20° to 70°
• Focus Control: Motorized
• Close Focus Distance: 0.3 m (0.98 ft)

Range

• Pan: 0° to 355°
• Tilt: 0° to 75°
• Rotation: 0° to 355°

Video

• Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Streaming Capability: Two (2) Streams
• Resolution: 5 MP (2592 x 1944), 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate

• Main Stream: 5 MP at 20 fps or 3 MP at 30 fps
• Sub Stream: D1, CIF at 30 fps
• Bit Rate Control: CBR, VBR
• Bit Rate: H.264: 32 K to 10240 Kbps, H.265: 12 K to 8448 Kbps

Image Settings

• Day/Night: Auto (ICR), Color, B/W
• BLC Mode: BLC, HLC, WDR (120 dB)
• White Balance: Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control: Auto, Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off, On (4 Zone, Rectangle)
• Region of Interest: Off, On (4 Zone)
• Smart IR: Support
• Digital Zoom: 16x
• Flip: 0°/90°/180°/270°
• Mirror: Off, On
• Privacy Masking: Off, On (4 Area, Rectangle)

Network

• Ethernet: RJ-45 (10/100 Base-T)
• Protocol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability: ONVIF, PSIA, CGI
• Streaming Method: Unicast / Multicast
• Max. User Access: 10 Users / 20 Users
• Edge Storage: NAS (Network Attached Storage), Local PC for instant recording, Micro SD Card, max. 128 GB
• Web Viewer: IE, Firefox, Safari
• Management Software: Smart PSS, DSS
• Mobile Operating System: IOS, Android

Certifications

• Safety: UL 60950-1
• Electromagnetic Compatibility: FCC Part 15 Subpart B

Electrical

• Power Supply: 12 VDC ± 10%, 520 mA maximum, or PoE (802.3af Class 0)
• Power Consumption: < 6.2 W

Environmental

• Operating Conditions: -30° C to +60° C (-22° F to +140° F), Less than 95% RH
• Storage Conditions: -30° C to +60° C (-22° F to +140° F), Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10

Construction

• Casing: Metal
• Dimensions: 122.0 mm × 88.90 mm (4.80 in. x 3.50 in.)
• Net Weight: 0.40 kg (0.88 lb)
• Gross Weight: 0.54 kg (1.19 lb)
