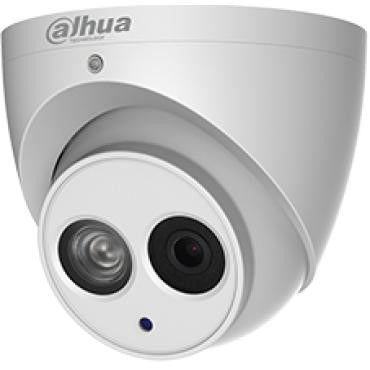

Dahua N64CG53 6MP IR 3.6mm ePoE Mini Eyeball Network Camera
ePoE Configuration Guide
Dahua N64CG53 6MP IR 3.6mm ePoE Mini Eyeball Network Camera

Dahua

Dahua N64CG53 6MP IR 3.6mm ePoE Mini Eyeball Network Camera

Sale price$288.00
Discontinued
SKU: N64CG53 Pro

Contact

Replaced by the N85CM5Z

Dahua N64CG53 Features

Camera

  • Image Sensor: 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
  • Effective Pixels: 3072(H) x 2048(V)
  • RAM/ROM: 512 MB / 32 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
  • Minimum Illumination: Color: 0.04 lux at F1.6 (1/3 s,30 IRE) Color: 0.4 lux at F1.6 (1/30 s, 30 IRE) 0 lux at F1.6 with IR on
  • S/N Ratio: More than 50 dB
  • IR Distance: Up to 50 m (164.04 ft)
  • IR On/Off Control: Auto / Manual
  • IR LEDs: One (1)

Lens

  • Lens Type: Fixed
  • Mount Type: Board-in
  • Focal Length: 3.6 mm
  • Max. Aperture F1.6
  • Angle of View: Horizontal: 69° Vertical: 48°
  • Focus Control: Fixed
  • Close Focus Distance: 1.70 m (66.93 in.)

Pan/Tilt/Rotation

  • Range Pan: 0˚ to 360˚
  • Tilt: 0˚ to 78˚
  • Rotation: 0˚ to 360˚

Video

  • Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Streaming Capability: Three (3) Streams
  • Resolution: 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), SXGA (1280 x 1024, 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
  • Frame Rate: Main Stream: 6 MP at 20 fps or 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: 1080p at 30 fps
  • Bit Rate Control: CBR/VBR
  • Bit Rate: H.264: 24 K to 10240 Kbps; H.265: 14 K to 9984 Kbps
  • Day/Night: Auto (ICR) / Color / B/W
  • BLC Mode: BLC / HLC / DWDR
  • White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
  • Gain Control: Auto / Manual
  • Noise Reduction: 3D DNR
  • Motion Detection: Off / On (4 Zone, Rectangle)
  • Region of Interest: Off / On (4 Zone)
  • Smart IR: Supported
  • Digital Zoom: 16x
  • Flip: 0° / 90° / 180° / 270°
  • Mirror: Off / On
  • Privacy Masking: Off / On (4 Area, Rectangle)

Audio

  • Compression: G.711a / G.711Mu / AAC / G.726
  • Interface: Built-in Microphone

Network

  • Ethernet: RJ-45 (10/100 Base-T)
  • Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
  • Interoperability: ONVIF, PSIA, CGI
  • Streaming Method: Unicast / Multicast
  • Max. User Access: 10 Users /20 Users
  • Edge Storage: NAS, Local PC for Instant Recording
  • Web Viewer: IE, Chrome, Firefox, Safari
  • Management Software: Smart PSS, DSS
  • Mobile Operating System: IOS, Android

Certifications

  • Safety: UL60950-1
  • Electromagnetic Compatibility: FCC CFR 47 FCC Part 15 Subpart B

Electrical

  • Power Supply: 12 VDC ± 30% , 560 mA maximum; or PoE (802.3af Class 0)
  • Power Consumption: < 6 W

Environmental

  • Operating Conditions: -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Storage Conditions: -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Ingress Protection: IP67

Construction

  • Casing: Metal
  • Dimensions: 106.0 mm x 93.70 mm (4.17 in. x 3.69 in.)
  • Net Weight: 0.47 kg (1.04 lb)
  • Gross Weight: 0.65 kg (1.43 lb)
