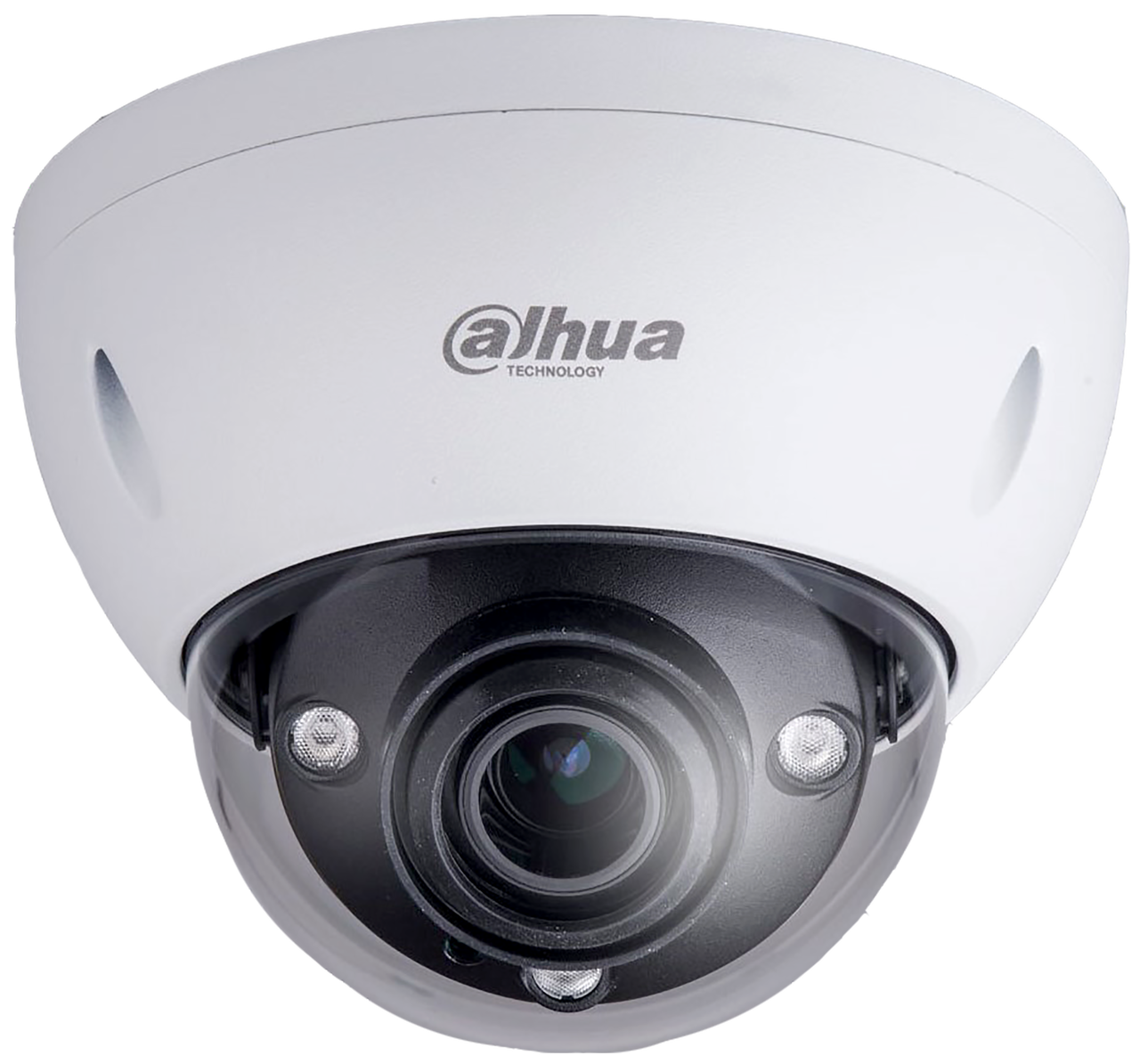

Dahua N64CL52 6MP IR 2.8mm ePoE Mini Dome Network Camera
ePoE Configuration Guide
Dahua N64CL52 6MP IR 2.8mm ePoE Mini Dome Network Camera

Dahua

Dahua N64CL52 6MP IR 2.8mm ePoE Mini Dome Network Camera

Sale price$288.00
SKU: N64CL52 Pro
Quantity:

Contact

Replaced by the N85CL5Z

Dahua N64CL52 Features

Camera

  • Image Sensor: 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
  • Effective Pixels: 3072(H) x 2048(V)
  • RAM/ROM: 512 MB / 32 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
  • Minimum Illumination: Color: 0.04 lux at F1.6 (1/3 s,30 IRE), Color: 0.4 lux at F1.6 (1/30 s, 30 IRE), 0 lux at F1.6 with IR on
  • S/N Ratio: More than 50 dB
  • IR Distance: Up to 30.0 m (98.43 ft)
  • IR On/Off Control: Auto, Manual
  • IR LEDs: 18

Lens

  • Lens Type: Fixed
  • Mount Type: Board-in
  • Focal Length: 2.8 mm
  • Maximum Aperture: F1.6
  • Angle of View: Horizontal: 98°, Vertical: 67°
  • Focus Control: Fixed
  • Close Focus Distance: 0.90 m (35.43 in.)

Pan/Tilt/Rotation

  • Pan: 0Ëš to 355Ëš
  • Tilt: 0Ëš to 64Ëš
  • Rotation: 0Ëš to 355Ëš

Video

  • Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Streaming Capability: Three (3) Streams
  • Resolution: 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
  • Frame Rate: Main Stream: 6 MP at 20 fps or 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps Sub Stream, 2: 1080p at 30 fps
  • Bit Rate Control: CBR/VBR
  • Bit Rate: H.264: 24 K to 10240 Kbps H.265: 14 K to 9984 Kbps
  • Day/Night: Auto (ICR), Color, B/W
  • BLC Mode: BLC, HLC, WDR (120 dB)
  • White Balance: Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control: Auto, Manual
  • Noise Reduction: 3D DNR
  • Motion Detection: Off, On (4 Zones, Rectangle)
  • Region of Interest: Off, On (4 Zones)
  • Smart IR: Support
  • Digital Zoom: 16x
  • Flip: 0°, 90°, 180°, 270°
  • Mirror: Off, On
  • Privacy Masking: Off, On (4 Areas, Rectangle)

Network

  • Ethernet: RJ-45 (10/100 Base-T)
  • Protocol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
  • Interoperability: ONVIF, PSIA, CGI
  • Streaming Method: Unicast, Multicast
  • Max. User Access: 10 Users /20 Users
  • Edge Storage: NAS, Local PC for instant recording, Micro SD card, maximum 128 GB
  • Web Viewer: IE, Chrome, Firefox, Safari
  • Management Software: Smart PSS, DSS
  • Mobile Operating System: IOS, Android

Certifications

  • Safety: UL60950-1
  • Electromagnetic Compatibility: FCC CFR 47 Part 15 Subpart B

Electrical

  • Power Supply 12 VDC ± 10%, 350 mA maximum; or PoE (802.3af Class 0)
  • Power Consumption <5.2 W

Environmental

  • Operating Conditions: –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Storage Conditions: –30° C to +60° C (–22° F to +140° F), Less than 95% RH
  • Ingress Protection: IP67
  • Vandal Resistance: IK10

Construction

  • Casing: Metal
  • Dimensions: 106.0 mm x 93.70 mm (4.17 in. x 3.69 in.)
  • Net Weight: 0.47 kg (1.04 lb)
  • Gross Weight: 0.65 kg (1.43 lb)
