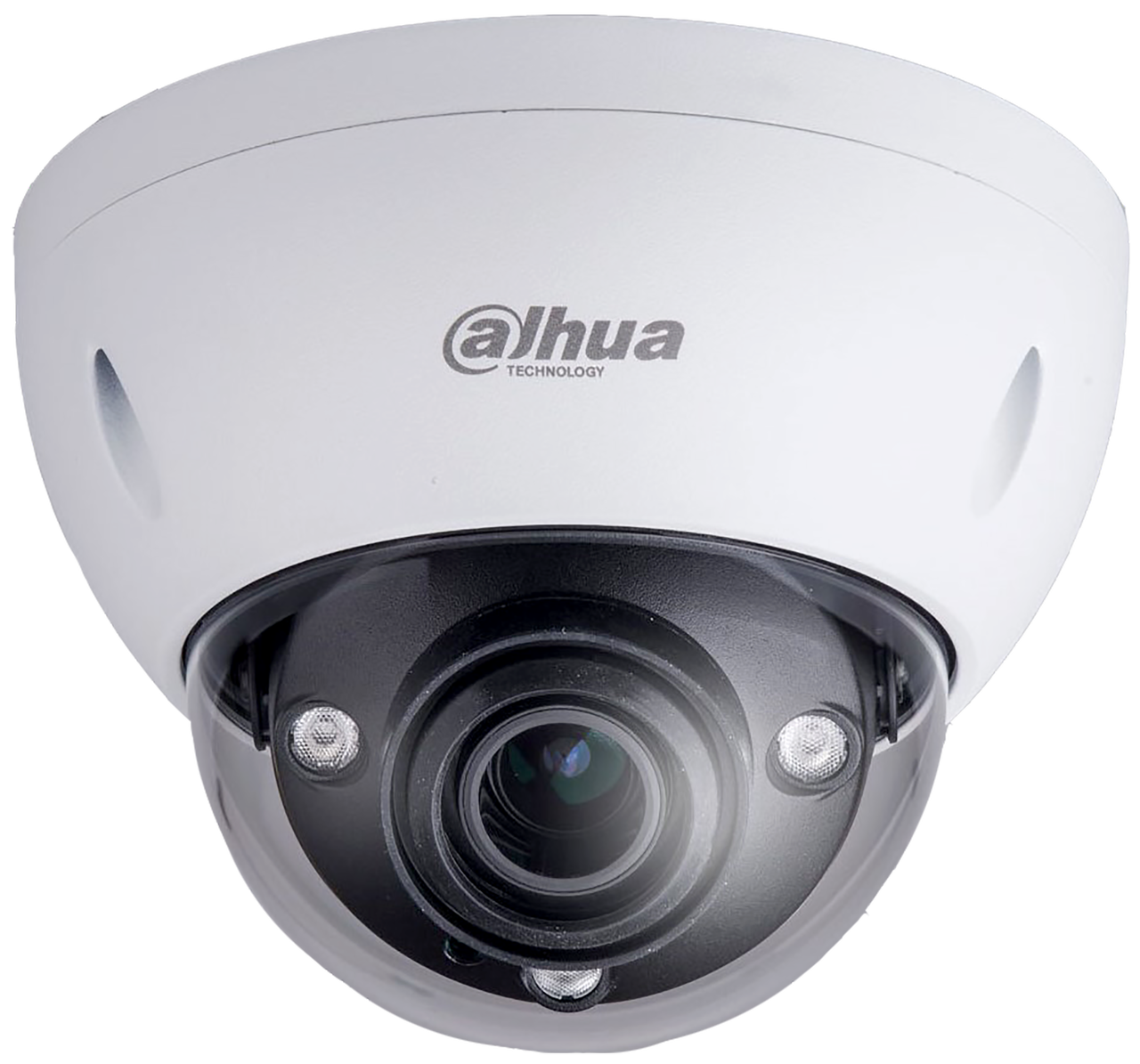

Dahua N64CL53 6MP IR 3.6mm ePoE Mini Dome Network Camera

Replaced by the N85CL5Z

Dahua N64CL53 Features

Camera

• Image Sensor: 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
• Effective Pixels: 3072(H) x 2048(V)
• RAM/ROM: 512 MB / 32 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto, Manual; 1/3 s to 1/100000 s
• Minimum Illumination: Color: 0.04 lux at F1.6 (1/3 s,30 IRE), Color: 0.4 lux at F1.6 (1/30 s, 30 IRE), 0 lux at F1.6 with IR on
• S/N Ratio: More than 50 dB
• IR Distance: Up to 30.0 m (98.43 ft)
• IR On/Off Control: Auto, Manual
• IR LEDs: 18

Lens

• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 3.6 mm
• Maximum Aperture: F1.6
• Angle of View: Horizontal: 69° Vertical: 48°
• Focus Control: Fixed
• Close Focus Distance: 1.70 m (66.93 in.)

Pan/Tilt/Rotation

• Pan: 0˚ to 355˚
• Tilt: 0˚ to 64˚
• Rotation: 0˚ to 355˚

Video

• Compression: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Streaming Capability: Three (3) Streams
• Resolution: 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
• Frame Rate: Main Stream: 6 MP at 20 fps or 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps Sub Stream, 2: 1080p at 30 fps
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 24 K to 10240 Kbps H.265: 14 K to 9984 Kbps
• Day/Night: Auto (ICR), Color, B/W
• BLC Mode: BLC, HLC, WDR (120 dB)
• White Balance: Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control: Auto, Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off, On (4 Zones, Rectangle)
• Region of Interest: Off, On (4 Zones)
• Smart IR: Support
• Digital Zoom: 16x
• Flip: 0°, 90°, 180°, 270°
• Mirror: Off, On
• Privacy Masking: Off, On (4 Areas, Rectangle)

Network

• Ethernet: RJ-45 (10/100 Base-T)
• Protocol: HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability: ONVIF, PSIA, CGI
• Streaming Method: Unicast, Multicast
• Max. User Access: 10 Users /20 Users
• Edge Storage: NAS, Local PC for instant recording, Micro SD card, maximum 128 GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: Smart PSS, DSS
• Mobile Operating System: IOS, Android

Certifications

• Safety: UL60950-1
• Electromagnetic Compatibility: FCC CFR 47 Part 15 Subpart B

Electrical

• Power Supply 12 VDC ± 10%, 350 mA maximum; or PoE (802.3af Class 0)
• Power Consumption <5.2 W

Environmental

• Operating Conditions: –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Storage Conditions: –30° C to +60° C (–22° F to +140° F), Less than 95% RH
• Ingress Protection: IP67
• Vandal Resistance: IK10

Construction

• Casing: Metal
• Dimensions: 106.0 mm x 93.70 mm (4.17 in. x 3.69 in.)
• Net Weight: 0.47 kg (1.04 lb)
• Gross Weight: 0.65 kg (1.43 lb)
