Dahua N65CB5Z 6MP IR Varifocal ePoE Bullet Network Camera

Dahua

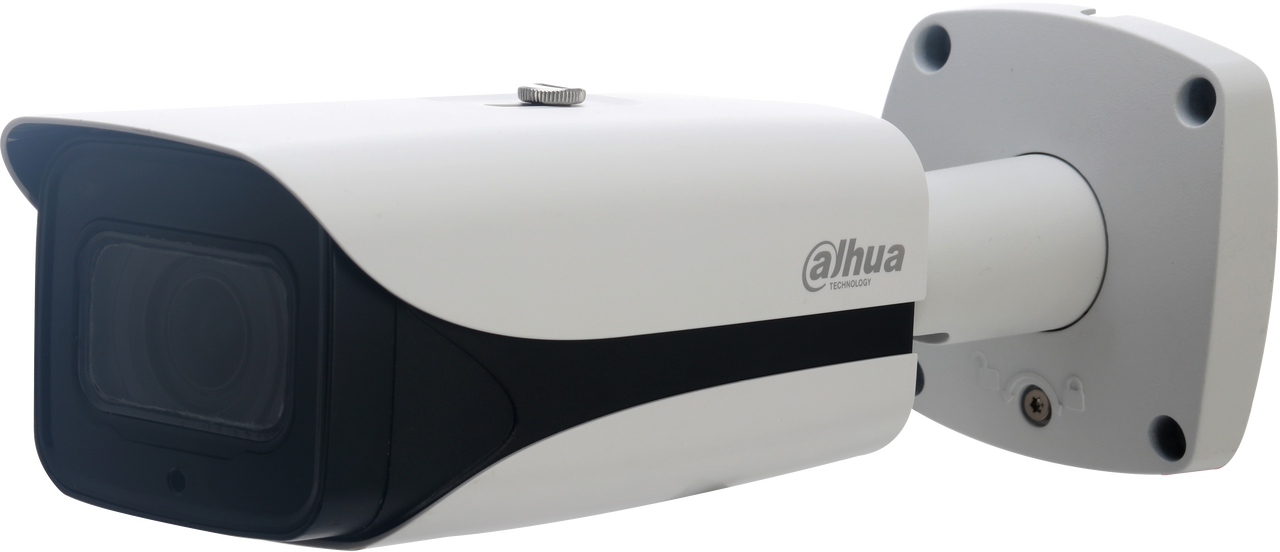

Dahua N65CB5Z 6MP IR Varifocal ePoE Bullet Network Camera

Sale price$486.00
Discontinued
SKU: N65CB5Z Pro

Contact

Replaced by the N85CB5Z

Dahua N65CB5Z Features

Camera

  • Image Sensor 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
  • Effective Pixels 3072(H) x 2048(V)
  • RAM/ROM 512 MB / 32 MB
  • Scanning System Progressive
  • Electronic Shutter Speed Auto/Manual, 1/3 s to 1/100000 s
  • Minimum Illumination Color: 0.04 lux at F1.4 (1/3 s,30 IRE), Color: 0.4 lux at F1.4 (1/30 s, 30 IRE), 0 lux at F1.4 with IR on
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 50.0 m (164.04 ft)
  • IR On/Off Control Auto, Manual
  • IR LEDs Four (4)

Lens

  • Lens Type Vari-focal
  • Mount Type Board-in
  • Focal Length 2.7 mm to 13.5 mm
  • Maximum Aperture F1.4
  • Angle of View Horizontal: 27° to 91°; Vertical: 18° to 58°
  • Optical Zoom 5x
  • Focus Control Motorized
  • Close Focus Distance 0.3 m (11.81 in.)

Pan/Tilt/Rotation Range

  • Pan: 0˚ to 360˚
  • Tilt: 0˚ to 90˚
  • Rotation: 0˚ to 360˚

Video

  • Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Streaming Capability Three (3) Streams
  • Resolution 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2304 x 1296,, 1080p (1920 x 1080), SXGA (1280 x 1024),, 1.3 MP (1280 x 960), 720p (1280 x 720),, D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
  • Frame Rate Main Stream: 6 MP at 20 fps or 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: 720p at 30 fps
  • Bit Rate Control CBR/VBR, Bit Rate H.264: 24 K to 10240 Kbps, H.265: 14 K to 9984 Kbps
  • Day/Night Auto (ICR), Color, B/W
  • BLC Mode BLC, HLC, WDR (120 dB)
  • White Balance Auto, Natural, Street Lamp, Outdoor, Manual
  • Gain Control Auto, Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off, On (4 Zones, Rectangle)
  • Region of Interest Off, On (4 Zones)
  • Smart IR Support
  • Digital Zoom 16x
  • Flip 0°, 90°, 180°, 270°
  • Mirror Off, On
  • Privacy Masking Off, On (4 Areas, Rectangle)

Audio

  • Compression G.711a, G.711Mu, AAC, G.726

Network

  • Ethernet RJ-45 (10/100Base-T)
  • Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast, Multicast
  • Max. User Access 10 Users /20 Users
  • Edge Storage NAS, Local PC for instant recording, Micro SD card, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android

Interfaces

  • Audio Input: One (1) Channel, Output: One (1) Channel
  • Alarm Input: Two (2) Channels, 5 mA, 5 VDC, Output: One (1) Channel, 300 mA, 12 VDC

Certifications

  • Safety UL60950-1
  • Electromagnetic Compatibility (EMC) FCC CFR 47 FCC Part 15 Subpart B

Electrical

  • Power Supply 12 VDC ± 30%, 1.05 A maximum; or PoE (802.3af Class 0)
  • Power Consumption < 12.95 W

Environmental

  • Operating Conditions –30° C to +60° C (–22° F to +140° F) Less than 95% RH
  • Storage Conditions –30° C to +60° C (–22° F to +140° F) Less than 95% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions 273.20 mm x 95.0 mm x 95.0 mm (10.76 in. x 3.74 in. x 3.74 in.)
  • Net Weight 1.11 kg (2.44 lb)
  • Gross Weight 1.51 kg (3.33 lb)

Intelligence

  • IVS triggers an alarm and takes a defined action for the following events:
  • Standard Features
  • Tampering with the camera
  • Error writing to an onboard Micro SD card
  • Error sending or receiving data over the networkUnauthorized access to the camera.
  • Premium Features
  • Motion An object moves through any part of the scene.
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
  • Abandoned/Missing Object
  • A target leaves an object in designated area, or a target removes an object from the same designated area.
  • Advanced Features
  • Facial Detection Detects and captures a snapshot of human face in adefined area within a scene
