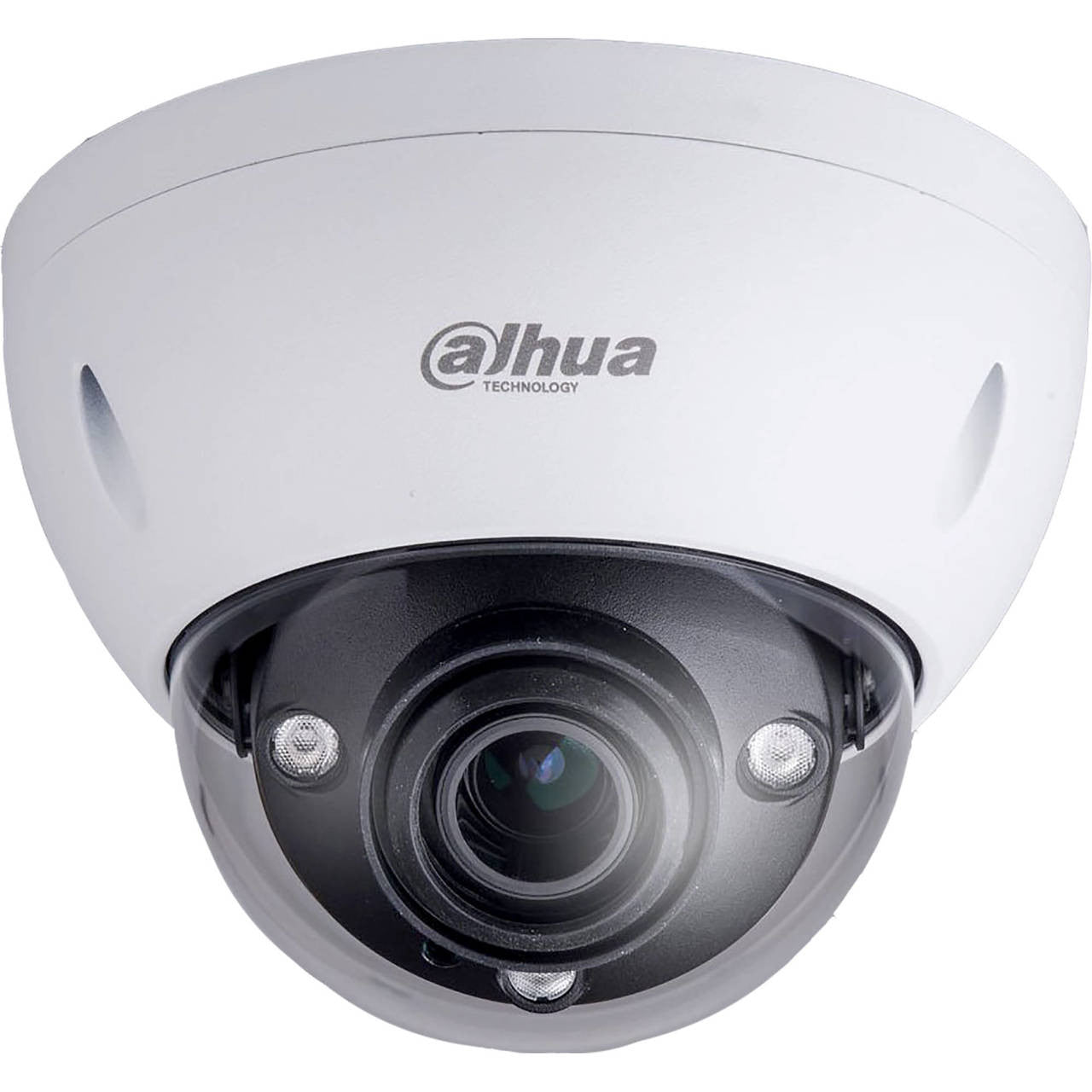

Dahua N65CL5Z 6MP IR Varifocal ePoE Dome Network Camera

Replaced by the N85CL5Z

Dahua N65CL5Z Features

Camera

• Image Sensor 1/2.9-in. 6 MP Progressive-scan STARVIS™ CMOS
• Effective Pixels 3072(H) x 2048(V)
• RAM/ROM 512 MB / 32 MB
• Scanning System Progressive
• Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100000 s
• Minimum Illumination Color: 0.03 lux at F1.4 (1/3 s,30 IRE), Color: 0.3 lux at F1.4 (1/30 s, 30 IRE), 0 lux at F1.4 with IR on
• S/N Ratio More than 50 dB
• IR Distance Distance up to 50.0 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized, Auto Iris
• Mount Type Board-in
• Focal Length 2.7 mm to 13.5 mm
• Maximum Aperture F1.4
• Angle of View Horizontal: 27° to 91°
• Vertical: 18° to 58°
• Optical Zoom 5x
• Focus Control Motorized
• Close Focus Distance 0.3 m (11.81 in.)
• Pan: 0˚ to 355˚
• Tilt: 0˚ to 65˚
• Rotation: 0˚ to 355˚

Video

• Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
• Streaming Capability Three (3) Streams
• Resolution 6 MP (3072 x 2048), 3072 x 1728, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), SXGA (1280 x 1024), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
• Frame Rate Main Stream: 6 MP at 20 fps or 4 MP at 30 fps, Sub Stream 1: D1 at 30 fps, Sub Stream 2: 720p at 30 fps
• Bit Rate Control CBR/VBR
• Bit Rate H.264: 24 K to 10240 Kbps
• H.265: 14 K to 9984 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, WDR (120 dB)
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zones, Rectangle)
• Region of Interest Off, On (4 Zones)
• Smart IR Support
• Digital Zoom 16x
• Flip 0°, 90°, 180°, 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Areas, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (10/100Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast, Multicast
• Max. User Access 10 Users /20 Users
• Edge Storage - NAS, Local PC for instant recording, Micro SD card, maximum 128 GB
• Web Viewer IE, Chrome, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Interfaces

• Video One (1) BNC Output, for installation purposes
• Audio Input: One (1) Channel, Output: One (1) Channel
• Alarm Input: One (1) Channel, 5 mA, 5 VDC, Output: One (1) Channel, 300 mA, 12 VDC

Certifications

• Safety UL60950-1
• Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B

Electrical

• Power Supply 12 VDC ± 30% or 24 VAC ± 30%, 1.25 A maximum; or PoE+ (802.3at Class 4)
• Power Consumption < 15 W

Dahua N65CL5Z Overview

The 6 MP dome camera features an advanced 1/2.9-in. Progressive-scan STARVIS™ imager with a motorized optical zoom lens. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions. The camera is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches. Dahua's innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems.

For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters. Enhanced PoE encompasses pure IP systems where a single CAT 5 cable can carry signals up to 800 m (2624 ft), and IP/Analog hybrid systems where the technology leverages existing analog infrastructure to transmit power and data up to 1000 m (3281 ft) over RG59 coaxial cable. Enhanced PoE is compatible with three connection modes operating over the same network simultaneously: traditional IP networks, long-distance ePoE networks and coaxial networks. ePoE technology seamlessly integrates the latest high-definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analog and IP power and data transmissions.

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Intelligent Video System (IVS) IVS is a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A camera with IVS quickly and accurately responds to monitoring events in a specific area. In addition to scene analytics, the camera supports face detection to quickly capture a face and upload the image to a server. The camera also offers tamper detection by recognizing a dramatic scene change and generating a warning message to inspect the camera. Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

Dahua cameras operate in extreme temperature environments, rated for use in temperatures from –30° C to +60° C (–22° F to +140° F) with 95% humidity. The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.
