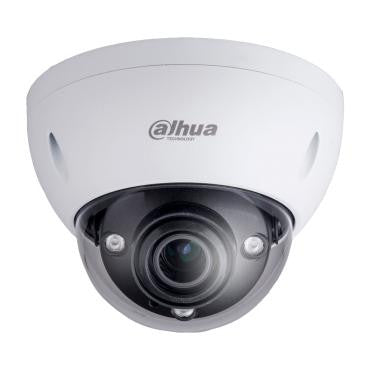

Dahua N68BL7Z 6MP IR Varifocal Dome Network Camera

Discontinued

Dahua N68BL7Z Features

Camera

• Image Sensor 1/1.8-in. 6 MP CMOS
• Effective Pixels 3072(H) x 2048(V)
• RAM/ROM 1024 MB / 128 MB
• Scanning System Progressive
• Minimum Illumination Color: 0.02 Lux at F1.53, B/W: 0 Lux at F1.53 (IR on)
• S/N Ratio More than 50 dB
• IR Distance Distance up to 50.0 m (164.04 ft)
• IR On/Off Control Auto, Manual
• IR LEDs Three (3)

Lens

• Lens Type Motorized /Auto Iris (HALL)
• Mount Type Board-in
• Focal Length 4.1 mm to 16.4 mm motorized
• Max. Aperture F1.53
• Angle of View Horizontal: 35° to 107°
• Vertical: 25° to 60°
• Optical Zoom 4x
• Focus Control Motorized
• Close Focus Distance 1.0 m (3.28 ft)
• Pan/Tilt/Rotation
• Range Pan: 0° to 355°
• Tilt:0° to 65°
• Rotation: 0° to 355°

Intelligence

• IVS Tripwire, Intrusion, Abandoned/Missing Object
• Advanced Intelligent Functions Face Detection, People Counting, Heat Map

Video

• Compression H.265, H.264
• Streaming Capability Three (3) Streams
• Resolution 6 MP (3072 x 2048), 5 MP (2560 x 1920), 3 MP (2048 x 1536), 3 MP(2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (342 x 240)
• Frame Rate Main Stream: 6 MP at 30 fps
• Sub Stream 1: D1 at 30 fps
• Sub Stream 2: 1080p at 30 fps
• Bit Rate Control CBR, VBR
• Bit Rate H.264: 24 to 16384 Kbps
• H.265: 14 to 9984 Kbps
• Day/Night Auto (ICR), Color, B/W
• BLC Mode BLC, HLC, DWDR, SSA
• White Balance Auto, Natural, Street Lamp, Outdoor, Manual
• Gain Control Auto, Manual
• Noise Reduction 3D DNR
• Motion Detection Off, On (4 Zone, Rectangle)
• Region of Interest Off, On (4 Zone)
• Electronic Image Stabilization (EIS) Support
• Smart IR Support
• Defog Support
• Digital Zoom 16x
• Flip 0° / 90° / 180° / 270°
• Mirror Off, On
• Privacy Masking Off, On (4 Area, Rectangle)

Audio

• Compression G.711a, G.711Mu, AAC, G.726

Network

• Ethernet RJ-45 (100/1000 Base-T)
• Protocol HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
• Interoperability ONVIF, PSIA, CGI
• Streaming Method Unicast / Multicast
• Max. User Access 10 Users / 20 Users
• Edge Storage NAS
• Local PC for instant recording
• Mirco SD card 128 GB
• Web Viewer IE, Firefox, Safari
• Management Software Smart PSS, DSS
• Mobile Operating System IOS, Android

Certifications

• Safety UL60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B

Interface

• Audio Interface In: One (1) Channel, Out: One (1) Channel
• Alarm In: One (1) Channel, Out: One (1) Channel

Electrical

• Power Supply 12 VDC, 24 VAC, PoE+ (802.3at, Class 4)
• Power Consumption < 18 W

Environmental

• Operating Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
• Storage Conditions -40° C to +60° C (-40° F to +140° F), Less than 95% RH
• Ingress Protection IP67
• Vandal Resistance IK10

Construction

• Casing Metal
• Dimensions ø159.10 mm x 117.90 mm (ø6.26 in. x 4.64 in.)
• Net Weight 0.96 kg (2.12 lb)
• Gross Weight 1.75 kg (3.56 lb)
