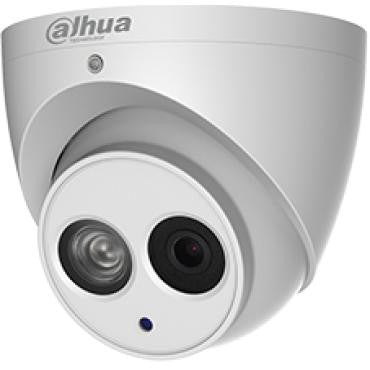

Dahua N84BG44 4K / 8MP IR Eyeball Network Camera
Replaced by the N85CM5Z
Dahua N84BG44 Features
Camera
- Image Sensor 1/2.5-in. 8 MP Progressive Scan CMOS
- Effective Pixels 3840(H) x 2160(V)
- RAM/ROM 512 MB / 32 MB
- Scanning System Progressive
- Minimum Illumination Color: 0.05 lux at F1.6; B/W: 0 lux at F1.6 (IR on)
- S/N Ratio More than 50 dB
- IR Distance Distance up to 50 m (164.04 ft)
- IR On/Off Control Auto / Manual
- IR LEDs One (1)
Lens
- Lens Type Fixed
- Mount Type Board-in
- Focal Length 4 mm
- Max. Aperture F1.6
- Angle of View Horizontal: 87°; Vertical: 48°
- Focus Control Fixed
Pan/Tilt/Rotation
- Range Pan: 0˚ to 360˚
- Tilt: 0˚ to 78˚
- Rotation: 0˚ to 360˚
Video
- Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
- Streaming Capability Three (3) Streams
- Resolution 4K/8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
- Frame Rate Main Stream: 4K/8 MP (1 to 15 fps) or 3 MP (1 to 30 fps)
- Sub Stream 1 : D1 (1 to 30 fps)
- Sub Stream 2: 720p (1 to 30 fps)
- Bit Rate Control CBR/VBR
- Bit Rate H.264: 24 K to 10240 Kbps; H.265: 14 K to 9984 Kbps
- WDR Pro 120dB
- Day/Night Auto (ICR) / Color / B/W
- BLC Mode BLC / HLC / DWDR
- White Balance Auto / Natural / Street Lamp / Outdoor / Manual
- Gain Control Auto / Manual
- Noise Reduction 3D DNR
- Motion Detection Off / On (4 Zone, Rectangle)
- Region of Interest Off / On (4 Zone)
- Smart IR Supported
- Digital Zoom 16x
- Flip 0° / 90° / 180° / 270°
- Mirror Off / On
- Privacy Masking Off / On (4 Area, Rectangle)
Intelligence
- IVS Tripwire, Intrusion, Abandoned/Missing Object
- Advanced Intelligent Functions Face Detection
Audio
- Compression G.711a / G.711Mu / AAC / G.726
- Interface Built-in Microphone
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
- Interoperability ONVIF, PSIA, CGI
- Streaming Method Unicast / Multicast
- Max. User Access 10 Users /20 Users
- Edge Storage NAS
- Local PC for Instant Recording
- MicroSD Card, maximum 128 GB
- Web Viewer IE, Chrome, Firefox, Safari
- Management Software Smart PSS, DSS
- Mobile Operating System IOS, Android
Certifications
- Safety UL60950-1
- Electromagnetic Compatibility FCC Part 15 Subpart B
Electrical
- Power Supply DC12V, PoE (802.3af, Class 0)
- Power Consumption < 5 W
Environmental
- Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions Φ106.0 mm x 93.70 mm (Φ4.17 in. x 3.69 in.)
- Net Weight 0.47 kg (1.04 lb)
- Gross Weight 0.65 kg (1.43 lb)
