Dahua N84BL44

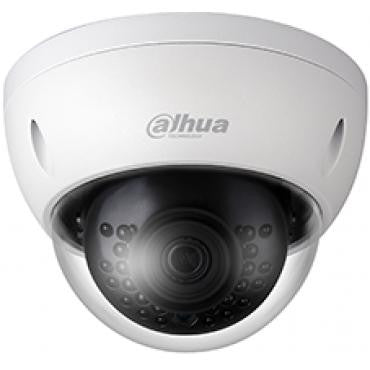

Dahua N84BL44 4K / 8MP IR Mini Dome Network Camera

Dahua

Dahua N84BL44 4K / 8MP IR Mini Dome Network Camera

$358.20
Discontinued
SKU: N84BL44 Pro
Link to Manufacturer's Page

Contact

Replaced by the N85CL5Z

Dahua N84BL44 Features

Camera

  • Image Sensor 1/2.5-in. 8 MP Progressive Scan CMOS
  • Effective Pixels 3840(H) x 2160(V)
  • RAM/ROM 512 MB / 32 MB
  • Scanning System Progressive
  • Minimum Illumination Color: 0.05 lux at F1.6; B/W: 0 lux at F1.6 (IR on)
  • S/N Ratio More than 50 dB
  • IR Distance Distance up to 30 m (98.42 ft)
  • IR On/Off Control Auto / Manual
  • IR LEDs 24

Lens

  • Lens Type Fixed
  • Mount Type Board-in
  • Focal Length 4 mm
  • Max. Aperture F1.6
  • Angle of View Horizontal: 87°; Vertical: 48°
  • Focus Control Fixed

Pan/Tilt/Rotation

  • Range Pan: 0˚ to 355˚
  • Tilt: 0˚ to 64˚
  • Rotation: 0˚ to 355˚

Video

  • Compression Smart H.265+ / H.265 / Smart H.264+ / H.264
  • Streaming Capability Three (3) Streams
  • Resolution 4K/8 MP (3840 x 2160), 6 MP (3072 x 2048), 5 MP (2560 x 1920), 3 MP (2048 x 1536), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
  • Frame Rate Main Stream: 4K/8 MP (1 to 15 fps) or 3 MP (1 to 30 fps)
  • Sub Stream 1 : D1 (1 to 30 fps)
  • Sub Stream 2: 720p (1 to 30 fps)
  • Bit Rate Control CBR/VBR
  • Bit Rate H.264: 24 K to 10240 Kbps
  • H.265: 14 K to 9984 Kbps
  • WDR Pro 120dB
  • Day/Night Auto (ICR) / Color / B/W
  • BLC Mode BLC / HLC / DWDR
  • White Balance Auto / Natural / Street Lamp / Outdoor / Manual
  • Gain Control Auto / Manual
  • Noise Reduction 3D DNR
  • Motion Detection Off / On (4 Zone, Rectangle)
  • Region of Interest Off / On (4 Zone)
  • Smart IR Supported
  • Digital Zoom 16x
  • Flip 0° / 90° / 180° / 270°
  • Mirror Off / On
  • Privacy Masking Off / On (4 Area, Rectangle)

Intelligence

  • IVS Tripwire, Intrusion, Abandoned/Missing Object
  • Advanced Intelligent Functions Face Detection

Audio

  • Compression G.711a / G.711Mu / AAC / G.726

Network

  • Ethernet RJ-45 (10/100 Base-T)
  • Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
  • Interoperability ONVIF, PSIA, CGI
  • Streaming Method Unicast / Multicast
  • Max. User Access 10 Users /20 Users
  • Edge Storage NAS
  • Local PC for Instant Recording
  • MicroSD Card, maximum 128 GB
  • Web Viewer IE, Chrome, Firefox, Safari
  • Management Software Smart PSS, DSS
  • Mobile Operating System IOS, Android

Certifications

  • Safety UL60950-1
  • Electromagnetic Compatibility FCC Part 15 Subpart B

Interface

  • Audio Interface In: One (1) Channel
  • Out: One (1) Channel
  • Alarm In: One (1) Channel
  • Out: One (1) Channel

Electrical

  • Power Supply DC12V, PoE (802.3af, Class 0)
  • Power Consumption < 5 W

Environmental

  • Operating Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Storage Conditions -30° C to +60° C (-22° F to +140° F), Less than 95% RH
  • Ingress Protection IP67
  • Vandal Resistance IK10

Construction

  • Casing Metal
  • Dimensions Φ109.90 mm x 81.0 mm (Φ4.33 in. x 3.19 in.)
  • Net Weight 0.41 kg (0.91 lb)
  • Gross Weight 0.53 kg (1.17 lb)
