Dahua NVD0905DH-4I-4K

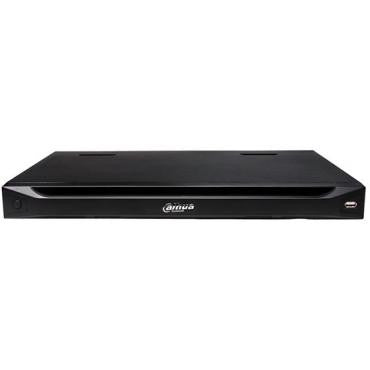

Dahua NVD0905DH-4I-4K Ultra HD Network Video Decoder

Dahua

Dahua NVD0905DH-4I-4K Ultra HD Network Video Decoder

Sale price$2,700.00
SKU: NVD0905DH-4I-4K
Quantity:

Contact

Dahua NVD0905DH-4I-4K Features

System

  • Processor Intel x86 Processor
  • Operating System LINUX

Performance

  • Video Format H.265, H.264, MPEG4, MPEG2, MJPEG
  • Audio Format PCM, G711, AAC
  • Decoding Capacity, Separately 3ch at 12 MP, 3ch at 4K; 12ch at 1080p, 27ch at 720p, 48ch at D1
  • Total Video Decoding 9ch at 12MP, 9ch at 4K, 36ch at 1080p, 81ch at 720P, 144ch at D1
  • Decoding Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960H, D1, HD1, 2CIF, CIF, QCIF
  • Video Output Nine (9) HDMI Channels
  • Communication Interface Two (2) RJ45 Network Ports (10/100/1000 Mbps), Three (3) RS232 Ports (1 DB9, 2 RJ45), One (1) RS485
  • Bi-directional Talk One (1) Pair 3.5 mm jacks (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out)
  • Alarms Input: Four (4) Channels, Output: Four (4) Relays (30 VDC 1 A, 125 VAC, 0.5 A)

Power, Environment, Construction

  • Power Supply 100 to 240 VAC, 50/60 Hz
  • Power Consumption ≤70 W
  • Working Temperature -10 °C to +55 °C (14 °F to 131 °F)
  • Working Humidity 10% to 95%, 86 Kpa to 106 Kpa
  • Unit Dimension 1.5 U, 440.0 mm x 408.0 mm x 70.0 mm (17.32 in. x 16.06 in. x 2.76 in.)
  • Weight 4.50 kg to 4.80 kg (9.92 lb to 10.58 kg)
