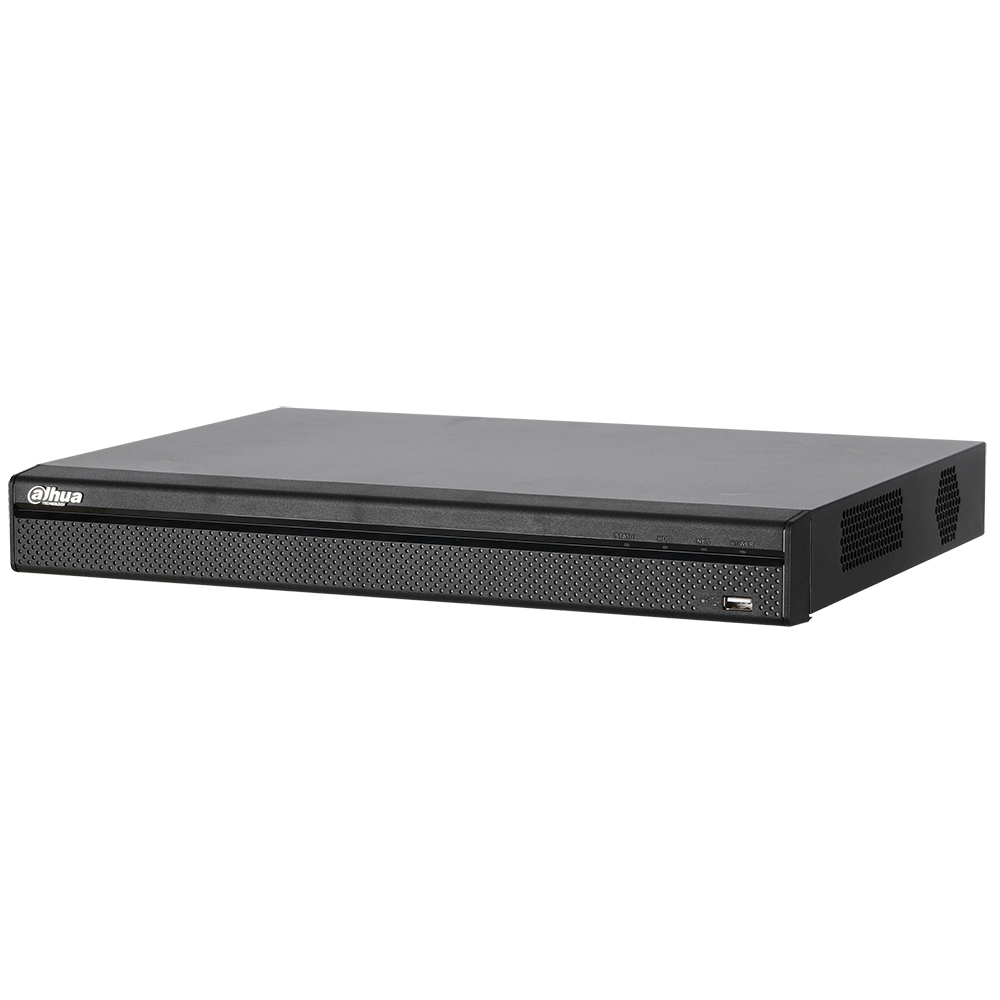

Dahua X52A3A 1080p H.265 16+8 CH 1U Penta-brid DVR

Dahua X52A3A Features

System

• Main Processor Embedded Processor
• Operating System Embedded LINUX

Interface

• Analog Camera Input 16 Channels, BNC
• Preview Ability
• Channels 1 and 2: 5 M-N (1296 x 1944) at 20 fps or 4 M-N (1280 x 1440), 1080p, 720p at 30 fps
• Channels 3 to 16: 4 M-N (1280 x 1440), 1080p, 720p at 30 fps
• HDCVI 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps
• AHD 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps
• TVI 5 MP, 4 MP, 1080p at 30 fps; 720p at 30 fps
• CVBS NTSC
• IP Camera Input 16+8 Channels, each channel up to 6 MP

Audio

• Input Four (4) Channels, RCA
• Output One (1) Channel, RCA
• Two-way Talk Reuse Audio In/Out, RCA

Recording

• Compression Smart H.265+, H.265, Smart H.264+, H.264
• Recording Resolution¹ 5 M-N (1296 x 1944), 4 M-N (1280 x 1440), 1080p,
• 1080N, 720p, 960H, D1, CIF
• Record Rate Main Stream Channel 1: 5 M-N (1296 x 1944) at 20 fps, Channels 2 to 32: 4 M-N (1280 x 1440) at 7 fps
• Sub Stream D1 or CIF at 15 fps
• Maximum Incoming Bandwidth 96 Mbps
• Bit Rate 32 Kbps to 6144 Kbps per Channel
• Record Mode Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval 1 to 60 minutes (default: 60 minutes),
• Pre-record: 1 s to 30 s,
• Post-record: 10 s to 300 s
• Audio Compression AAC (first channel only), G.711A, G.711U, PCM
• Audio Sample Rate 8 KHz, 16 bits per Channel
• Audio Bit Rate 64 Kbps per Channel

Display

• Interface One (1) HDMI (3840 x 2160), One (1) VGA (1920 x 1080)
• Native Output Resolution 1920 x 1080, 1280 x 1024, 1280 x 720
• Maximum Decoding 16 Channels of 4 M-N at 15 fps, 16 Channels of 1080p at 15 fps, 4 Channels of 4 M-N at 30 fps
• Multi-screen Display IP extension mode disabled: 1/4/8/9/16
• IP extension mode enabled: 1/4/8/9/16/25
• On-screen Display Camera Title, Time, Video Loss, Camera Lock,
• Motion Detection, Recording

Network

• Interface One (1) RJ45 (1000 Mbps) Port
• Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
• Maximum User Access 128 Users
• Mobile Operating System IOS, Android
• Interoperability ONVIF 16.12, CGI Conformant

Video Detection and Alarm

• Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm Input 16 Channels
• Relay Output Three (3) Channels

Playback and Backup

• Playback 1/4/9/16
• Search Mode Time/Date, Alarm, MD and Exact Search (accurate to 1 second)
• Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
• Backup Mode USB Device/Network

Storage

• Internal HDD Two (2) SATA Ports
• Up to 10 TB capacity for each disk
• One hard drive comes pre-installed, select size

Auxiliary Interface

• USB One (1) USB 2.0 Port and One (1) USB 3.0 Port
• RS485 One (1) Port for PTZ Control

Electrical

• Power Supply 12 VDC, 4 A
• Power Consumption < 10 W, without HDD
• Construction
• Dimensions HDCVI DVR 1U, 375.0 mm x 287.0 mm x 53.0 mm (14.80 in. x 11.30 in. x 2.09 in.), HDCVI DVR with PFH101 Rack Mount Tray 482.6 mm x 287.0 mm x 56.0 mm (19.0 in. x 11.30 in. x 2.20 in.)
• Net Weight 1.70 kg (3.70 lb)
• Gross Weight 3.0 kg (6.70 lb)
• Installation Desktop or Rack-mount

Environmental

• Operating Conditions –10° C to +55° C (+14° F to +131° F), 10% to 90% RH
• Storage Conditions –20° C to +70° C (–4° F to +158° F), 0% to 90% RH

Certifications

• Safety UL 60950-1
• Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B ICES 003 Issue 6, EN 55032, EN 50130, EN 61000-3-2, EN 61000-3-3
• Immunity EN 55024 : 2010

Intelligence

• The IVS features are operational only when the additional IP channel feature is not active.
• The HDCVI DVR supports only IVS or the additional IP channel inputs, both features cannot be in use simultaneously.
• IVS triggers an alarm and takes a defined action for the following events:
• Premium Features
• Channels 1 and 2: Support all Premium IVS Features
• Channels 3 through 8: Support Tripwire and Intrusion Premium IVS Features
• Tripwire A target crosses a user-defined line.
• Intrusion A target enters or exits a defined perimeter.
• Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
• Advanced Feature
• Available on Analog Channel 1 (feature not available if an IP camera is connected as Camera 1)
• Face Detection Detects and captures a snapshot of a human face in a defined area within a scene.

Overview

The X52A Series HDCVI DVR offers 1080p recording on each HDCVI channel and a host of advanced features and functions. The X52A takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously.
The X52A utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
