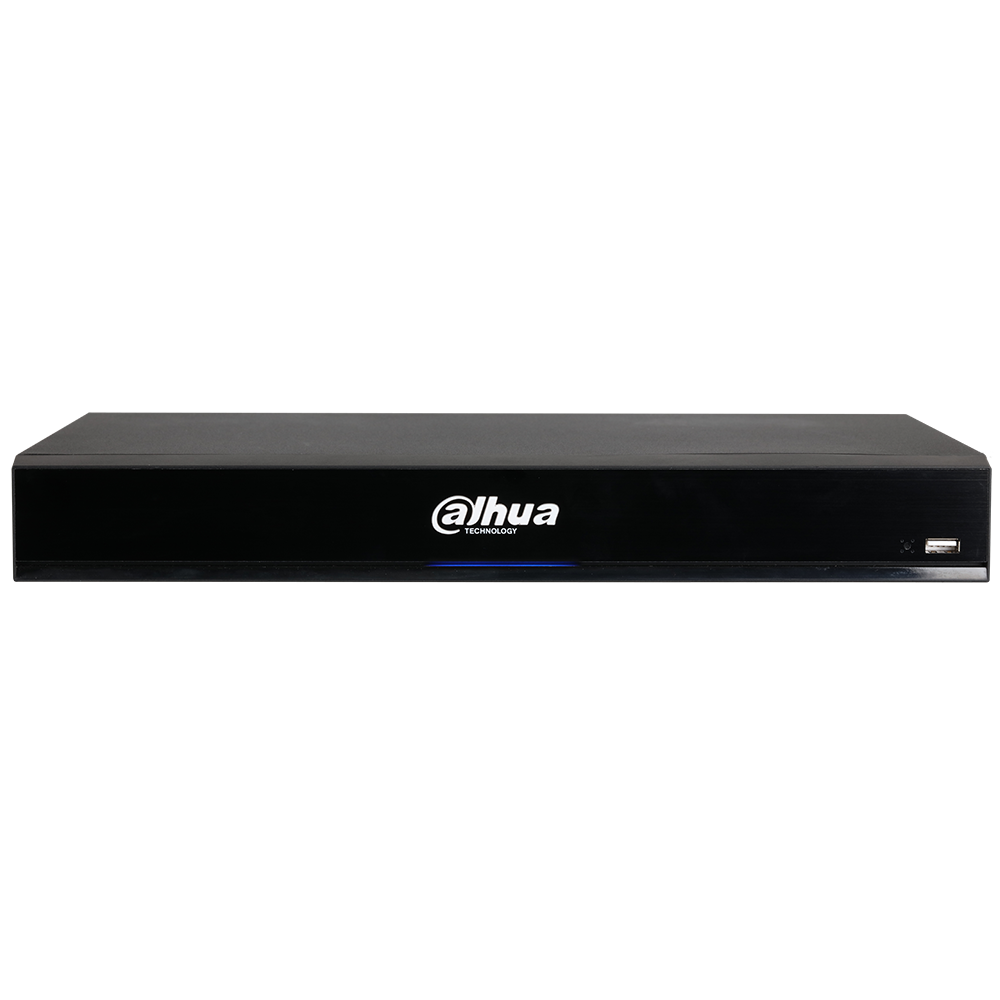

Dahua X72A2A 8CH 4K Penta-brid HDCVI/AHD/TVI/CVBS/IP DVR

Dahua

Dahua X72A2A 8CH 4K Penta-brid HDCVI/AHD/TVI/CVBS/IP DVR

$0.00
Discontinued
HD Storage Included:Default Title
Link to Manufacturer's Page

Contact

Dahua X72A2A Features

System
  • Main Processor Embedded Processor
  • Operating System Embedded LINUX

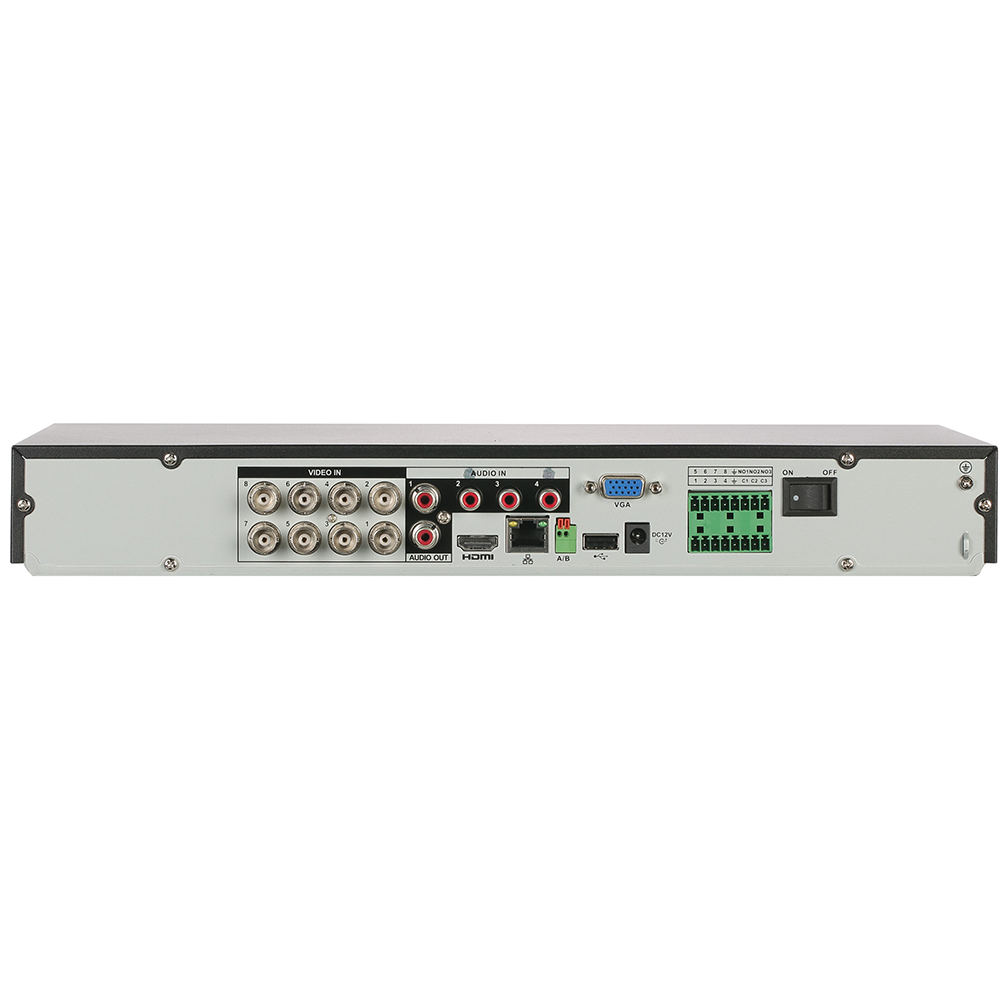

Interface
  • Analog Camera Input Eight (8) Channels, BNC
    -HDCVI 8 MP, 6 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps, 720p at 30 fps
    -AHD 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
    -TVI 5 MP, 4 MP, 3 MP, 1080p at 30 fps, 720p at 30 fps
    -CVBS NTSC
  • IP Camera Input 8+8 Channels, each channel up to 8 MP
  • Audio Input: Four (4) Channels, RCA
  • Output: One (1) Channel, RCA
  • Two-way Talk Reuse Audio In/Out, RCA
Recording
  • Compression Smart H.265+, H.265, Smart H.264+, H.264
  • Recording Resolution 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 4 M-N (1280 x 1440), 1080p, 720p, 960H, D1, CIF
Record Rate
  • Main Stream 8 MP at 7 fps; 6 MP at 10 fps, 5 MP at 12 fps, 4 MP or 3 MP at 15 fps; 4 M-N, 1080p, 720p, 960H, D1, CIF or QCIF at 30 fps
  • Sub Stream 960H at 15 fps; D1 or CIF at 30 fps
  • Maximum Incoming Bandwidth 64 Mbps
  • Bit Rate 32 Kbps to 6144 Kbps per Channel
Record Mode
  • Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Record Interval 1 to 60 minutes (default: 60 minutes), Pre-record: 1 to 30 s, Post-record: 10 to 300 s
  • Audio Compression AAC (first channel only), G.711A, G.711U, PCM
  • Audio Sample Rate 8 KHz, 16 bits per Channel
  • Audio Bit Rate 64 Kbps per Channel
Display
  • Interface One (1) HDMI (3840 x 2160), One (1) VGA (1920 x 1080)
  • Spot Output HDMI or VGA, configurable
  • Native Output Resolution HDMI 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768; VGA 1920 x 1080, 1280 x 1024, 1280 x 720
  • Maximum Decoding
    -Four (4) Channels of 4K at 7 fps
    -Four (4) Channels of 6 MP at 10 fps
    -Four (4) Channels of 5 MP at 12 fps
    -Eight (8) Channels of 4 MP/3 MP at 15 fps
    -Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps
  • Multi-screen Display IP extension mode disabled: 1/4/8/9
  • IP extension mode enabled: 1/4/8/9/16
  • On-sceen Display Camera Title, Time, Video Loss, Camera Lock, Motion
  • Detection, Recording
Network
  • Interface One (1) RJ45 (1000 Mbps) Port
  • Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
  • Max. User Access 128 Users
  • Mobile Operating System IOS, Android
  • Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
  • Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
  • Alarm Input Eight (8) Channels
  • Relay Output Three (3) Channels
Playback and Backup
  • Playback 1/4/9
  • Search Mode Time/Date, Alarm, MD and Exact Search (accurate to 1 second)
  • Playback Function Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom
  • Backup Mode USB Device/Network
Storage
  • Internal HDD Two (2) SATA Ports, up to 10 TB capacity for each disk
Auxiliary Interface
  • USB One (1) USB 2.0 Port and One (1) USB 3.0 Port
  • RS485 One (1) Port for PTZ Control
Electrical
  • Power Supply 12 VDC, 4 A
  • Power Consumption < 10 W, without HDD
Construction
  • Dimensions
    -HDCVI DVR 1U, 375.0 mm x 287.15 mm x 53.0 mm (14.80 in. x 11.31 in. x 2.09 in.)
    -with PFH101 Rack Mount Tray 482.6 mm x 287.15 mm x 53.0 mm (19.0 in. x 11.31 in. x 2.09 in.)
  • Net Weight 1.70 kg (3.70 lb)
  • Gross Weight 3.0 kg (6.60 lb)
  • Installation Desktop or Rack-mount
Environmental
  • Operating Conditions –10° C to +55° C (+14° F to +131° F), 10% to 90% RH
  • Storage Conditions –20° C to +70° C (–4°F to +158° F), 0% to 90% RH
Third-party Support
  • Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others
Certifications
  • Safety UL 60950-1, EN 60950-1, IEC 60950-1
  • Electromagnetic Compatibility (EMC) FCC Part 15 Subpart B, EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Intelligence
  • The IVS features are operational only when the additional IP channel feature is not active.
  • The HDCVI DVR supports only IVS or the additional IP channel inputs, both features cannotbe in use simultaneously. IVS triggers an alarm and takes a defined action for the following events:
  • Premium Features
  • Tripwire A target crosses a user-defined line.
  • Intrusion A target enters or exits a defined perimeter.
  • Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
  • Advanced Features (available only when Standard/Premium IVS features not in use)
  • Facial Detection Detects and captures a snapshot of human face in a defined area within a scene.
  • IVS Feature Availability
  • The HDCVI DVR supports the following IVS availability:
    -Four (4) Analog Channels of Standard/Premium IVS features, OR First Analog Channel Face Detection
