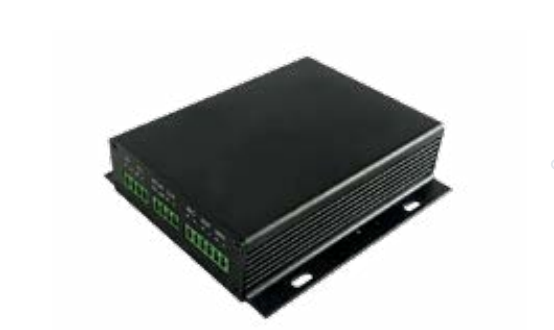

Eagle Eye IO+Audio Module DH03, 2xInput, 1Relay, AudioI/O (EN-SDUH-003a)

Key I/O Features

• Versatile Input/Output Options
2 GPIO inputs, 1 GPIO output and 2 relay outputs.
• Event-Driven Automation
Initiate camera(s) recording, send alerts, activate relays, or execute custom automation logic.
• Eagle Eye Cloud VMS Integration
Integrated with the Eagle Eye Cloud VMS. Easily retrofits existing physical security systems to enable cloudconnected control without rip-and-replace.
Secondary Audio Capabilities
While primarily an I/O interface, the DH03 also includes robust audio support.
• Two-Way Audio Communication
1 mic input, 1 speaker output, 1 headset output. Ideal for door stations, intercoms, and remote communication.
• Pre-Recorded Message Playback
Supports WAV and MP3 playback for event-based audio announcements.
• Multi-Zone Paging
Works with external amplifiers for area-specific audio control.
• Audio Codes Supported
OPUS 48 kHz, MP3 44.1 kHz, G.722, G.711 (PCMU/PCMA).

Datasheet

Eagle Eye IO+Audio Module DH03, 2xInput, 1Relay, AudioI/O
