Exacq
Exacq IFS05-D12-OIB4 Illustra Flex Gen4 5MP Minidome, 2.7-13.5mm, AI, TDN w/IR, TWDR, EIS, IP66/67, IK10, Clear Bubble
Quantity:
Choose options
Quantity:
Camera Features
- Flex AI suite enabled & calibrated out of the box
- Outstanding imaging in low-light conditions
- High-end image stabilization using Gyro sensor
- Smart & Adaptive IR up to 50 m (164 ft)
- Corridor and dual HD streaming mode
- IP66, IP67, NEMA 4x, IK10 certified
- Onvif Profile S, G, T, M conformant
- Power failover support
- Conforms to JCI cyber norms
- 5 year Warranty

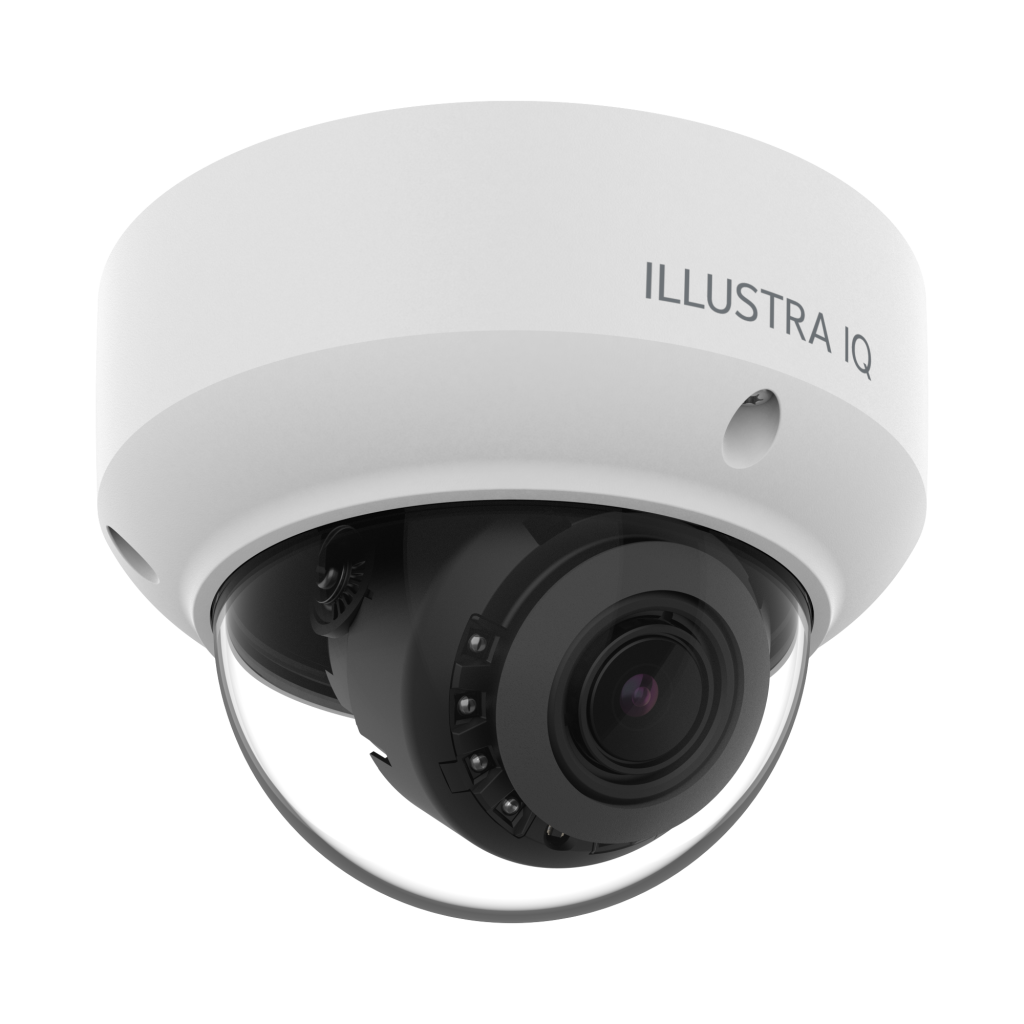

The ALL NEW Flex Gen4 Outdoor Mini Dome Camera
Improved AI capabilities, More RAM, More Power to Fit Your Security Needs
Discover the future of technology with our cutting-edge deep learning AI solution, designed to deliver unparalleled image enhancements in the most challenging conditions. Our smart system optimizes bandwidth for seamless performance while ensuring low power consumption, making it an eco-friendly choice for any setting. Engineered to withstand all weather conditions and compatible with an open standard interface, it integrates effortlessly into your existing setup. Our advanced security features offer comprehensive data protection, giving you peace of mind. Plus, with a 5-year warranty, our solution is not just an investment in superior technology but in reliability and trust. Experience the perfect blend of innovation, efficiency, and security, all in one robust package.
| Camera Features | Flex Gen4 Outdoor Mini Dome Camera |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Class Sub-Classes (attributes): Person Clothing Color (Upper, Lower), Vehicle Color Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned/Removed, Enter, Exit, Crowd, Queue, Direction |
| Audio | Bi-directional, 1x Line input and 1x Line output |
| Alarm Input/Output | 1x Alarm In and 1x Alarm Out |
| Backlight Compensation | - |
| B/W | - |
| Color | - |
| Day/Night | True Day/Night CF removal |
| Defog | Supported |
| Digital Noise Reduction | - |
| Dimensions | Ø145x106.5mm (Ø5.71 x 4.19 in) (without mount plate) Ø145.3x113.5mm (Ø5.72 x 4.47 in) (with mount plate) |
| Dynamic Range | True multi shutter WDR up to 141 dB Off, TWDR, TWDR 3x, SmartWDR |
| Environment Rating | IEC 60529 IP66, IEC 60529 IP67 IEC 62262 IK10 BS EN IEC 63000 ROHS, REACH, WEEE NEMA 250 Type 4x |
| Ethernet | IEEE 802.3, 10/100Base-T Ethernet, RJ45, auto sensing |
| Field of View | 2MP: H: 98.47°(W) – 31.1°(T) V: 51.88°(W) – 17.55°(T) 5MP: H: 97.57°(W) – 31.74°(T) V: 70.26°(W) – 23.84°(T) 8MP: H: 112.1°(W) – 47.5°(T) V: 58.0°(W) – 26.6°(T) |
| Focal Length | - |
| Focus | - |
| Gain Control | - |
| H.264 | yes |
| H.265 | yes |
| Horizontal FOV | - |
| Housing Color | Signal White Pantone RAL 9003 |
| Imager | 2MP: Sony 1/2.8” Progressive Scan CMOS imager 5MP: Sony 1/2.8” Progressive Scan CMOS imager 8MP: Sony 1/1.8” Progressive Scan CMOS imager |
| Image Stabilization | Electronic image stabilization (EIS) using gyro sensor (coming soon) |
| IntelliZip | - |
| IR | - |
| IR Illuminator | 850 nm, Smart / Adaptive IR, up to 50m (164 ft) |
| Lens Type | 2MP: 2.7 mm – 13.5 mm, MFZ, P-Iris, F1.6(W) – F3.1(T) 5MP: 2.7 mm – 13.5 mm, MFZ, P-Iris , F1.31(W) – F2.37(T) 8MP: 3.6 – 11mm, MFZ, P-iris, F1.3(W) – F2.15(T) One touch auto focus, manual, and automatic focus with zoom |
| Manual Speed | - |
| Max Aperture | - |
| Max Frame Rate | 2MP: 60/50 fps 5MP: 30/25 fps 8MP: 15/12.5 fps |
| Minimum Illumination | 2MP: Color: 0.05 lux, B/W: 0.005 lux 5/8MP: Color: 0.1 lux B/W: 0.01 lux |
| MJPEG | yes |
| Motion Detection | 3 zones supported |
| Noise Reduction | - |
| Onboard Storage | microSDXC slot, Class 10 or better, up to 1TB supported (Card not included) Pre event / Post event 1- 10 sec Encrypted storage and streaming TrickleStor offline recording and backfilling |
| ONVIF Compliant | - |
| Operating Temperature | -50°C (-58°F) to +60° C (140°F) (IR off at +50° C/122° F) Start-up temperature: -40°C (-40°F) Humidity up to 95% RH, Non-Condensing |
| Outdoor Rating | - |
| Pan Travel | Pan 350°, Tilt 67°, Rotation 355° |
| Power Draw | 2MP PoE Typ. 0.1A / Max 0.21A Typ. 4.5W / Max 10.0W 24VAC Typ. 0.38A / Max 0.75A Typ. 4.7W / Max 10.3W 5MP PoE Typ. 0.11A / Max 0.22A Typ. 5.2W / Max 10.4W 24VAC Typ. 0.43A / Max 0.78A Typ. 5.4W / Max 10.7W 8MP PoE Typ. 0.12A / Max 0.25A Typ. 5.5W / Max 12.0W 24VAC Typ. 0.45A / Max 0.88A Typ. 5.7W / Max 12.3W |
| Power Input | PoE 802.3af (802.3at Type 1) Class 3 | 24VAC |
| Power Supply | - |
| Presets | - |
| Privacy Zones | 10 user definable rectangular zones |
| Resolution Options | 2MP: 16:9: 1920 x 1080 (2MP) to 480x272 5MP: 4:3: 2560 x 1920 (5MP) to 480x272 8MP: 16:9: 3840 x 2160 (8MP) to 480x272 |
| Shutter Speed | - |
| Simultaneous Users | 10 users |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WS-Addressing, CIFS, UPNP, LLDP, SIP, ARP, EAP-LEAP, QoS |
| S/N Ratio | - |
| Tilt Travel | - |
| Vandal-Resistant | - |
| Video Streams | Triple Streaming with a maximum of 5 concurrent shared streams |
| Weight | Net 1.01 kg (2.23 lbs.), Gross 1.29 kg (2.84 lbs.) |
| White Balance | - |
| Wide Dynamic Range | - |
| Wi-Fi | Micro USB via optional USB Wi-Fi Dongle IA-KIT-WD-UUA |
