Exacq IPS02-D17-OI03 Illustra Pro 2MP Dome, 7-22mm, TDN, w/IR, Indoor/Outdoor Includes Video Intelligence Analytics
Quantity:

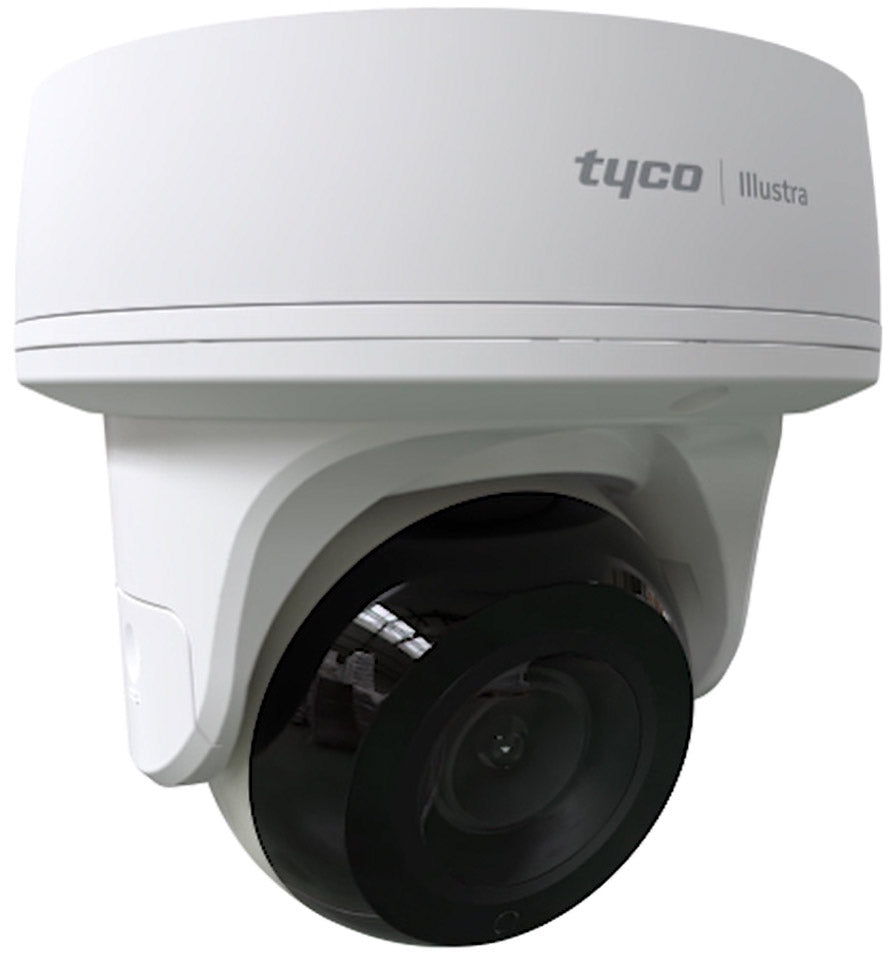

Illustra Pro 2MP Dome, 7-22mm, TDN, w/IR, Indoor/Outdoor. Includes Video Intelligence Analytics.
Pro Gen3 2MP, 3MP, 5MP & 8MP Mini-Domes
Enriched Video Quality With Reduced Configuration Time
The third generation of Illustra Pro Mini-Domes offers smart technologies, integrated IR, application profiles, and simplified configuration capabilities to maximize uptime and video surveillance resources. Smart Wide Dynamic Range adjusts contrast and overall scene balance without operator intervention while the bubble-free design enhances integrated IR distance up to 131 feet. Profiles such as retail, gaming, and outdoor scenes can be activated to automatically determine optimal settings based on the environment.
| Camera Features | Pro Gen3 Mini-Dome |
| Corridor Mode | Yes |
| Day/Night | Yes |
| Defog | - |
| Dynamic Range | 2MP,3MP,8MP: True WDR 120 dB Technologies | 5MP: True WDR 110 dB Technologies |
| Environment Rating | IP66/IP67 |
| Field of View | 95°/53° (Standard) 49°/28° (Telephoto) 100°/73° (Standard) 32°/24° (Telephoto) |
| Focal Length | 3.6-10mm, 6-22mm, 2.7-13.5mm, 7-22mm |
| Focus | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | White |
| Imager | Progressive Scan RGB CMOS 1/2.8” |
| IntelliZip | Yes |
| IR Distance | Up to 40m |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Frame Rate | 8MP @ 30fps |
| MJPEG | Yes |
| Motion Detection | 3 Zones |
| Onboard Storage | micro SDXC up to 256GB |
| ONVIF Compliant | Profile S |
| Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC |
| Resolution Options | 8MP, 3MP, 2MP, 1MP, 3840x2160 (4K) 16:9, 3264x1840 16:9, 2688x1520 16:9, 2560x1440 16:9, 1920x1080 (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x720 (720p) 16:9, 1024x576 (PAL+) 16:9, 960x544 (qHD) 16:9, 816x464 16:9, 640x360 (nHD) 16:9, 480x272 16:9 3MP, 2MP, 1MP, 2048x1536 4:3, 1920x1080, (1080p) 16:9, 1664x936 (HD+) 16:9, 1280x960 4:3, 1280x720, (720p) 16:9, 800x600 (SVGA) 4:3, 640x480 (VGA) 4:3, 640x360 (nHD) 16:9, 480x360 4:3, 384x288 4:3 |
| Vandal-Resistant | IK10 |
| Video Streams | Quad |
