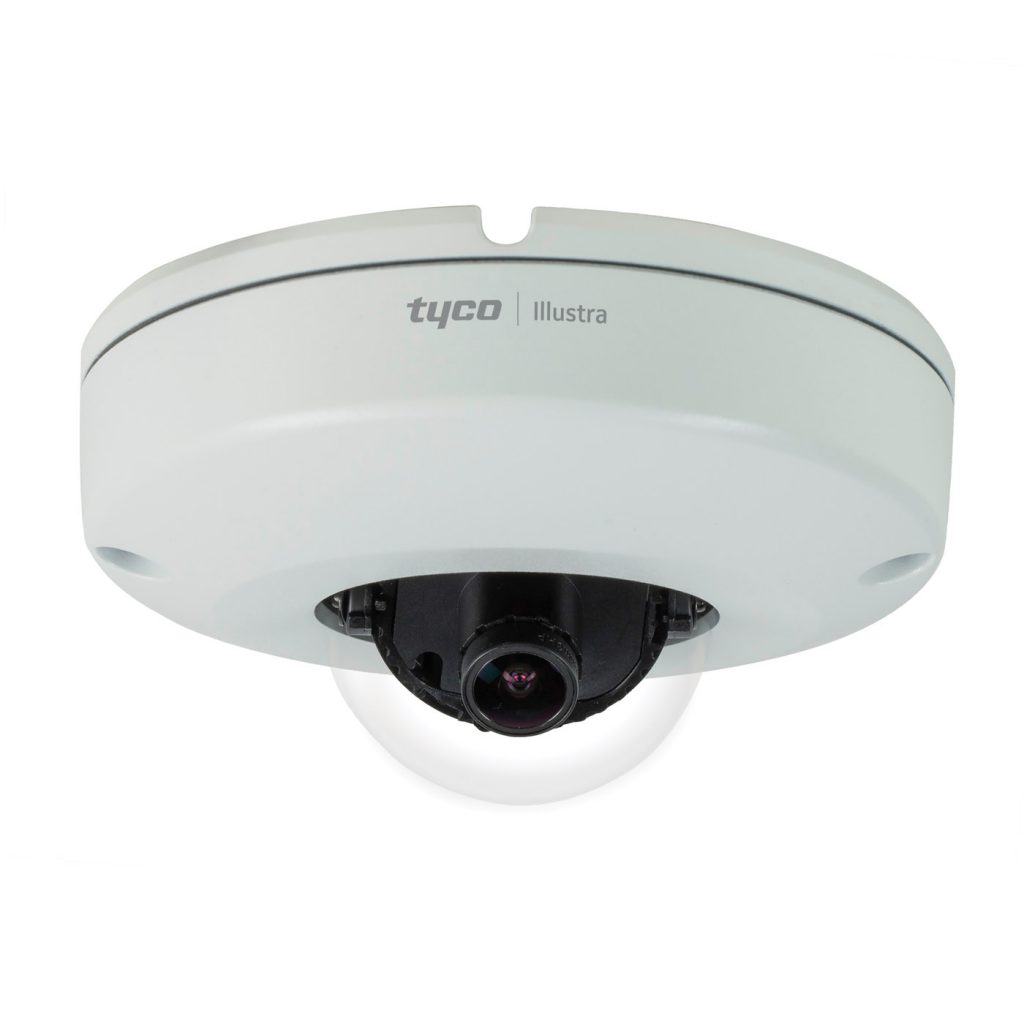

Exacq IPS03CFOCWST Illustra Pro 3MP compact dome, 2.8mm, Outdoor, Vandal, clear, white, SDN, TWDR


Exacq IPS03CFOCWST Illustra Pro 3MP compact dome, 2.8mm, Outdoor, Vandal, clear, white, SDN, TWDR

Sale price$491.33


Illustra Pro 3MP compact dome, 2.8mm, Outdoor, Vandal, clear, white, SDN, TWDR

Product Overview

The Pro Compact Mini-Domes provide crisp and clear high-definition video at 2MP and 3MP resolutions, and are ideal for applications such as retail stores, commercial buildings, healthcare facilities and banks where discretion is important. Rated IP66/67 and IK10 for weather and vandal resistance, this camera can function in harsh outdoor conditions. The Compact Mini-Domes provide exceptional video in challenging lighting conditions with True Wide Dynamic Range up to 120dB. Save on installation costs by licensing the camera to a VideoEdge Network Video Recorder at no additional cost.

Efficiently View Hallways with Corridor Mode

The Pro Compact Mini-Domes are equipped with various viewing angles including horizontal view and a corridor mode. The corridor mode is a 9x16 field of view aspect ratio for vertically oriented scenes, which is optimal for places such as a narrow alleyway, office hallway, grocery store aisle, or any area where a landscape format is not ideal.

Smart Bandwidth Management Saves Storage Costs

Illustra IntelliZip provides powerful bandwidth management beyond H.264 and H.265, reducing network bandwidth and video storage requirements. This embedded technology continuously monitors and optimizes system streaming parameters to match the level of activity within the camera's field of view. When the camera detects motion, IntelliZip automatically adjusts the video quality to ensure every detail within the region of interest is captured clearly. When the scene becomes static, IntelliZip continues to optimize bitrate.

Ensure Failover Redundancy with Confidence

The VideoEdge TrickleStor feature on the Pro Compact Mini-Dome product line allows video recording to continue on the edge when an outage occurs. If communications between the NVR and cameras are interrupted or stop, the camera automatically detects the anomaly and begins recording video to its SD card. With TrickleStor, once the connections are restored, the recorded video is then transferred back to the NVR's hard drive for seamless viewing later.

Mitigate Risk in the Cyber Protection Program

The Pro Compact Mini-Domes adhere to the rigorous security standards of the Tyco Cyber Protection Product Security Program. The holistic cyber approach begins at initial design concept, continues through product development, and is supported through deployment, including a rapid incident response to meet the comprehensive and evolving cybersecurity environments.

Main Features

  • 2MP and 3MP models provide true HD quality images
  • VideoEdge® TrickleStor technology for edge-based failover redundancy
  • Illustra® IntelliZip offers powerful video compression technology for bandwidth management
  • Compact design allows for discreet deployments
  • True Wide Dynamic Range balances challenging lighting conditions
  • Motion detection for instant intruder alerts
  • Corridor Mode for vertical field of view orientation to view hallways or store aisles
  • License to a VideoEdge Network Video Recorder at no additional cost
  • IP66- and IP67-rated outdoor model enclosure to protect against dust and water damage
  • IK10 vandal-resistance rating


Camera Features Pro 3MP Compact Mini-Dome
Alarm Input/Output -
Backlight Compensation -
B/W -
Color -
Day/Night SDN
Defog -
Digital Noise Reduction -
Dimensions -
Environment Rating Indoor & Outdoor
Ethernet -
Field of View 102º/77º
Focal Length 2.8mm
Focus -
Gain Control -
H.264 Yes
H.265 Yes
Horizontal FOV -
Housing Color White
Imager 1/2.8” CMOS
IntelliZip Yes
Lens Type Fixed
Manual Speed -
Max Aperture -
Minimum Illumination -
Motion Detection Yes, 3 Zones
Noise Reduction -
Onboard Storage Micro SDXC Up To 128GB
ONVIF Compliant ONVIF Profile S
Outdoor Rating IP66 and IP67
Pan Travel -
Power Draw -
Power Input PoE IEEE 802.3af class 2
Power Supply -
Presets -
Privacy Zones -
Resolution Options 3MP, 1MP, (2048x1536) QXGA, (1920x1080) 1080p, (1664x936), (1280x720) 720p, (1024x576) PAL+, (640x360) nHD, (480x360) 480, (384x288)
Shutter Speed -
Supported Protocols -
S/N Ratio -
Tilt Travel -
Vandal-Resistant IK10
Video Streams 3
Weight -
White Balance -
