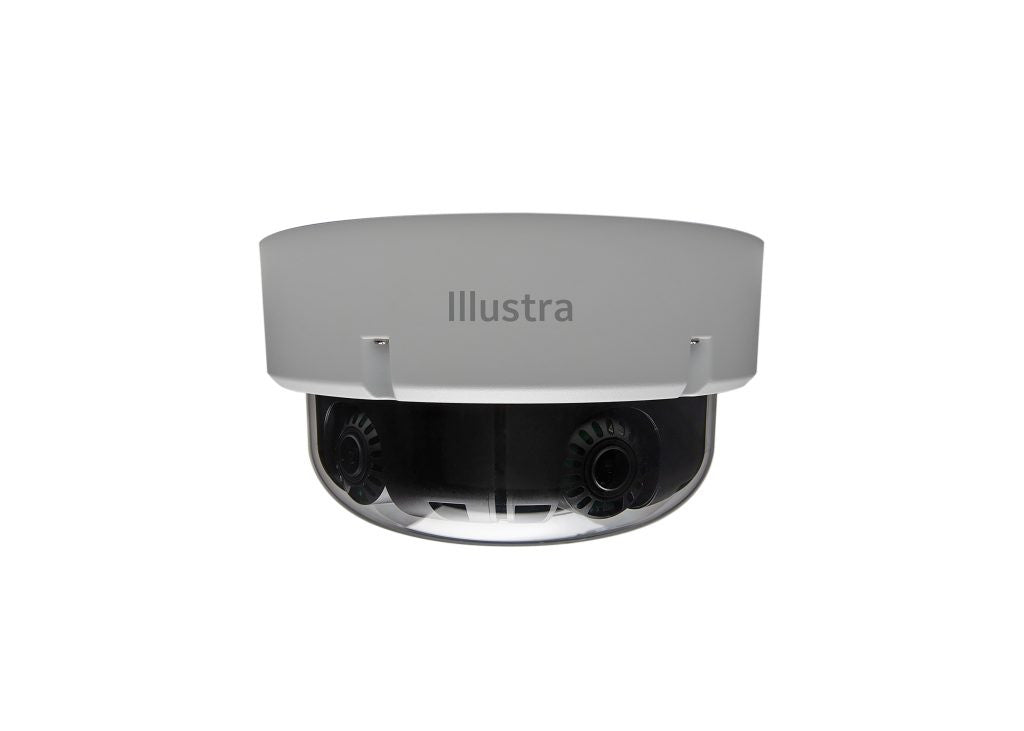

Exacq IPR32-M13-OIA4 Illustra Pro Gen4 32MP (8MP x4) Multisensor

The Illustra Pro Multisensor cameras are designed to provide complete coverage with a lower total cost of ownership (TCO) when compared to the use of multiple cameras. The Multisensor cameras are equipped with deep learning AI and the ability to accurately classify many human and vehicle targets within a scene.

Available in 20MP and 32MP models, the Illustra Pro Multisensor cameras push the boundaries of image quality at low bandwidth in low light and challenging conditions with superior WDR, defog and built-in IR illuminators. Four motorized, individually repositionable varifocal lenses utilizing one network connection and one camera license means a drastically lower cost of deployment.

• 20MP & 32MP resolution provides high quality images during live viewing and forensic search
• Built in deep learning AI (Quad Edge AI) provides real time alerts and forensic search capabilities independently for each sensor.
• Four remotely repositionable lenses provide 360 degree coverage
• Integrated 30m (98ft) infrared vision
• Smart Defog & SmartWDR
• TrickleStor provides edge-based failover redundancy via encrypted video
• Improved operational tolerances for extreme conditions
• 5 year warranty

Camera FeaturesPro Gen4 20MP & 32MP Motorized MultisensorAI Object ClassificationClasses: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, QueueAudioBi-directional; 1 input, 1 outputAlarm Input/Output2 input, 2 outputDay/NightTrue Day/Night CF RemovalDimensionsø299mm x 169mm (ø11.8in x 6.7in)Dynamic RangeTrue WDR 120 dB TechnologiesEnvironment RatingRoHS; WEEEEthernet10/100/1000 BaseT, RJ-45, Auto-NegotiationField of ViewField of View Wide (H/V): 95°/53°
Field of View Telephoto (H/V): 49°/28°Face RecognitionYesFocal Length3.6 -11mmFocus ControlOne-Touch Auto Focus or Remote AdjustmentH.264YesH.265YesHousing ColorSignal White - RAL 9003ImagerSony IMX334 1/1.8” CMOS image sensorImage Orientation SettingsNone, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left)IntelliZipYesIR Distance98ft (30m)Lens TypeMotorized Varifocal and Focus, P-IrisMax Aperturef/1.5 (W), f/2.8 (T)Max Frame Rate8MP @ 30fps, 2MP @ 60fpsMinimum IlluminationColor, 1/4s, 30 IRE, AGC: 0.2 Lux; B/W, 1/4s, 30 IRE, AGC: 0.11 Lux; W/IR: 0.0 LuxMJPEGYesMotion Detection3 per SensorOnboard StorageBuilt-in Quad Micro SDXC slot up to 2TB per slot; Card not includedONVIF CompliantProfile S (Future release)Operating Temperature-40°C to 55°C (-40°F to 131°F)Outdoor RatingIP66Power InputPower over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3WPrivacy Zones8 Per SensorResolution Options3840x2160 (4K) 16:9
3264x1840 (6MP) 16:9
2688x1520 (4MP) 16:9
1920x1080 (1080p) 16:9
1664x936 (HD+) 16:9
1280x720 (720p) 16:9
1024x576 (PAL+) 16:9
960x544 (qHD) 16:9
816x464 16:9
640x360 (nHD) 16:9
480x272 16:9Shutter Speed≥ 1/10,000 to 1/4 sSimultaneous Users10Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIPTrickleStorYes, encrypted storageVandal-ResistantIK10Video StreamsQuad Streaming (per sensor)Weight5.7Kg (12.6 lbs)

Model No.
IPR20-M12-OIA4 Illustra Pro Gen4 20MP (5MP x4) Multisensor, 2.7-13.5mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC
IPR32-M13-OIA4 Illustra Pro Gen4 32MP (8MP x4) Multisensor, 3.6-11mm, Edge AI, TDN w/IR, TWDR, PTRZ, IP66, IK10, Quad SDXC
