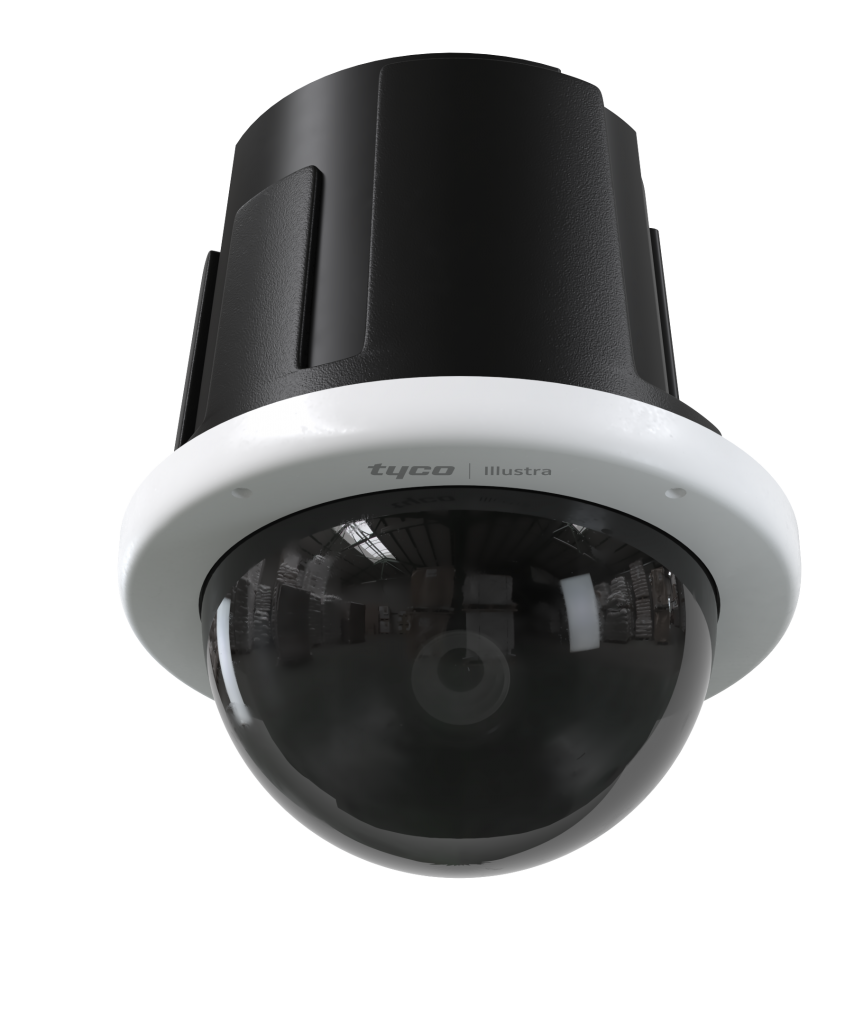

Exacq IPS02-P07-RT04 Illustra Pro Gen4 2MP PTZ, 30x, Indoor, Non-Vandal, Smoked, White, TDN, TWDR
Quantity:
The exceptional speed and silence of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission critical applications. The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
- Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Auto-tracking based upon face or person detection
- 5 year warranty
- True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
- Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
- Fast and accurate reaction to events with a Pant/Tilt Speed of up to 700°/sec and a preset accuracy of <0.1°
| Camera Features | Pro Gen4 2MP & 8MP PTZ Indoor |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike |
| Audio | Bi-directional; 1 input, 1 output (built-in mic + Line in audio) |
| Alarm Input/Output | 2/2 |
| B/W | Minimum Illumination 2MP 0.004 lux - 8MP (4K) 0.015 lux |
| Color | Minimum Illumination 2MP 0.013 lux - 8MP (4K) 0.06 lux |
| Day/Night | TDN CF removal |
| Defog | Yes - Future Firmware Release |
| Digital Noise Reduction | 2D and 3D |
| Dimensions | Ø9.25 x 10.39 in (Ø235 x 264 mm) |
| Ethernet | IEEE 802.3, 10/100/1000Base-T Ethernet, RJ45, auto sensing |
| Field of View | 2MP Wide Angle: 60°/37°, Telephoto: 5°/3° 8MP (4K) Wide Angle: 61.9°/36.2°, Telephoto: 3.4°/1.7° |
| Focal Length | 2MP 7 - 295 mm - 8MP (4K) 6-139 mm |
| Focus | Motorized, Continuous Auto Focus, Manual Focus |
| Focus Control | Motorized |
| H.264 | yes |
| H.265 | yes |
| Housing Color | RAL 9003 - Signal White |
| Imager | 2MP CMOS 1/2.8” - 8MP (4K) CMOS 1/1.18” |
| Image Stabilization | 2MP Optical Image Stablization 8MP Electric Image Stabilization in Future Firmware releases |
| Intelligent Guard Tour | Face, Person |
| IntelliZip | Yes |
| Lens Type | Varifocal Lens, DC-Iris, IR Corrected |
| Manual Speed | < 0.25° to 100°/s scaled in proportion to zoom position |
| Max Aperture | 2MP F/1.6(W) ~ F/4.4(T) - 8MP F/1.5(W) ~ F/3.4(T) |
| Max Frame Rate | 2MP@60fps - 8MP@30fps/2MP@60fps |
| MJPEG | yes |
| Motion Detection | yes |
| Onboard Storage | Micro SD/SDHC/SDXC card slot, up to 512GB |
| ONVIF Compliant | Profile S |
| Operating Temperature | -14 F to +149 F (-10 C to +65 C) |
| Pan Travel | 360° Continuous |
| Power Input | 802.3at Type 2 (30W) |
| Power Supply | 22 to 30 VAC & VDC, Class 2 LP 72W |
| Presets | 96 |
| Resolution Options | 2MP - 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 8MP - 3840 x 2160, 3264 x 1840, 2688 x 1520, 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP™, RTSP, LLDP |
| Tilt Travel | 0° to -90° |
| TrickleStor | Yes |
| Vandal-Resistant | IK10 |
| Video Intelligence | Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter |
| Video Streams | Quad Streaming |
| Weight | 8.8 LBS / 4KG |
| Wide Dynamic Range | True multi shutter WDR 126dB Smart WDR /TrueWDR. TrueWDR3x |
| Zoom | 2MP 30x Optical Zoom, 12x Digital - 8MP (4K) 22x Optical Zoom, 12x Digital |
Model No.
IPS02-P07-RT04 Illustra Pro Gen4 2MP PTZ, 30x, Indoor, Vandal, Smoked, White, TDN, TWDR
IPS08-P25-RT04 Illustra Pro Gen4 8MP (4K) PTZ, 22x, Indoor, Vandal, Smoked, White, TDN, TWDR
