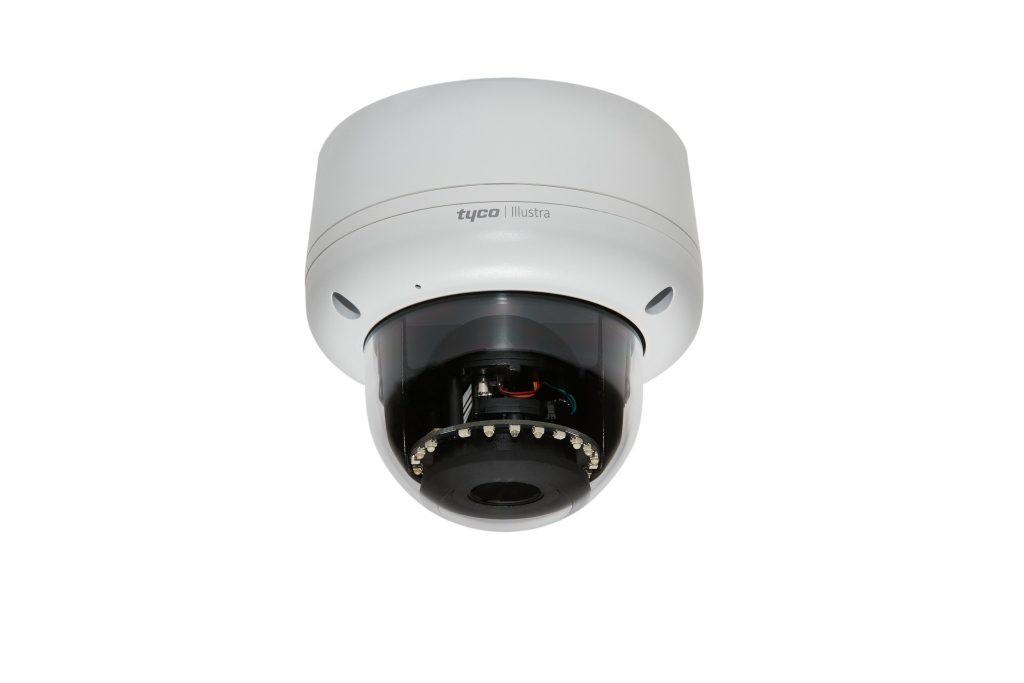

Exacq IPS08-D14-OI04 Illustra Pro Gen4 8MP MiniDome, 6-22mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classification, events can be narrowed to classes such as person, car, bus, motorcycle and more.
Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
- Built in AI delivers accurate object classification, powerful situational awareness and security automation
- Integrated recess mount, universal back-box, a range of IO options including Micro HDMI plus WIFI configuration via the Illustra Tools App
- 5 year warranty
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming and more
- Ultra low light capabilities to maintain color image quality without IR
Camera Features | Pro Gen4 2MP, 4MP & 8MP Mini-Domes |
AI Object Classification | Person, Bicycle, Bus, Car, Motorbike |
Audio | Bi-directional; 1 input, 1 output. Built in Microphone |
Alarm Input/Output | 2 input, 2 output |
Day/Night | True Day/Night CF Removal |
Defog | Yes |
Dimensions | Ø138 x 135mm |
Environment Rating | IP66/IP67 |
Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
Field of View | 3.6-10mm Field of View Wide (H/V) 95°/53° Field of View Telephoto (H/V) 49°/28° 6-22mm Field of View Wide (H/V) 50°/28° Field of View Telephoto (H/V) 24°/14° |
Face Recognition | Yes |
Focal Length | 3.6-10mm or 6-22mm |
Focus Control | One-Touch Auto Focus or Remote Adjustment |
H.264 | Yes |
H.265 | Yes |
Housing Color | Signal White - RAL 9003 |
Imager | Sony IMX334 |
Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
IntelliZip | Yes |
IR Distance | 50m |
IR Illuminator | Yes |
Lens Type | Motorized Varifocal and Focus, P-Iris |
Max Aperture | 3.6-10mm - f/1.5 (W), f/2.8 (T). 6-22mm - f/1.6 (W), f/2.4 (T) |
Max Frame Rate | 2MP @ 60fps |
Minimum Illumination | 3.6-10mm - Color 1/4s, 30 IRE, AGC 0.03 Lux. B/W,1/4s, 30 IRE, AGC 0.0004 Lux. W/IR 0.0 Lux. 6-22mm - Color 1/4s, 30 IRE, AGC 0.02 Lux. B/W,1/4s, 30 IRE, AGC 0.0005 Lux. W/IR 0.0 Lux. |
MJPEG | Yes |
Motion Detection | Yes |
Noise Reduction | Digital |
Onboard Storage | micro SDXC up to 1TB |
ONVIF Compliant | Profiles S |
Operating Temperature | -50° to +65°C |
Power Draw | PoE 12.95W, 24 VAC 16.5W |
Power Input | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 24 VAC |
Privacy Zones | 8 |
Resolution Options | 3840x2160 (4K) 16:9 3264x1840 16:9 2688x1520 16:9 2560 x 1440 16:9 1920x1080 (1080p) 16:9 1664x936 (HD+) 16:9 1280x720 (720p) 16:9 1024x576 (PAL+) 16:9 960x544 (qHD) 16:9 816x464 16:9 640x360 (nHD) 16:9 480x272 16:9 |
Shutter Speed | ≥ 1/10,000 to 1/4 s |
Simultaneous Users | 10 |
Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
Vandal-Resistant | IK10 |
Video Streams | Quad Streaming |
Weight | 1.5KG, 3.31 Ibs |
Wide Dynamic Range | True WDR 120 dB Technologies |
Model No.
IPS02-D12-OI04 Illustra Pro Gen4 2MP MiniDome, 2.7-13.5mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
IPS02-D17-OI04 Illustra Pro Gen4 2MP MiniDome, 7-22mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
IPS04-D12-OI04 Illustra Pro Gen4 4MP MiniDome, 2.7-13.5mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
IPS04-D14-OI04 Illustra Pro Gen4 4MP MiniDome, 6-22mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
IPS08-D13-OI04 Illustra Pro Gen4 8MP MiniDome, 3.6-10mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
IPS08-D14-OI04 Illustra Pro Gen4 8MP MiniDome, 6-22mm, Indoor/Outdoor, IP67, IK10, TDN w/IR, TWDR
