Exacq

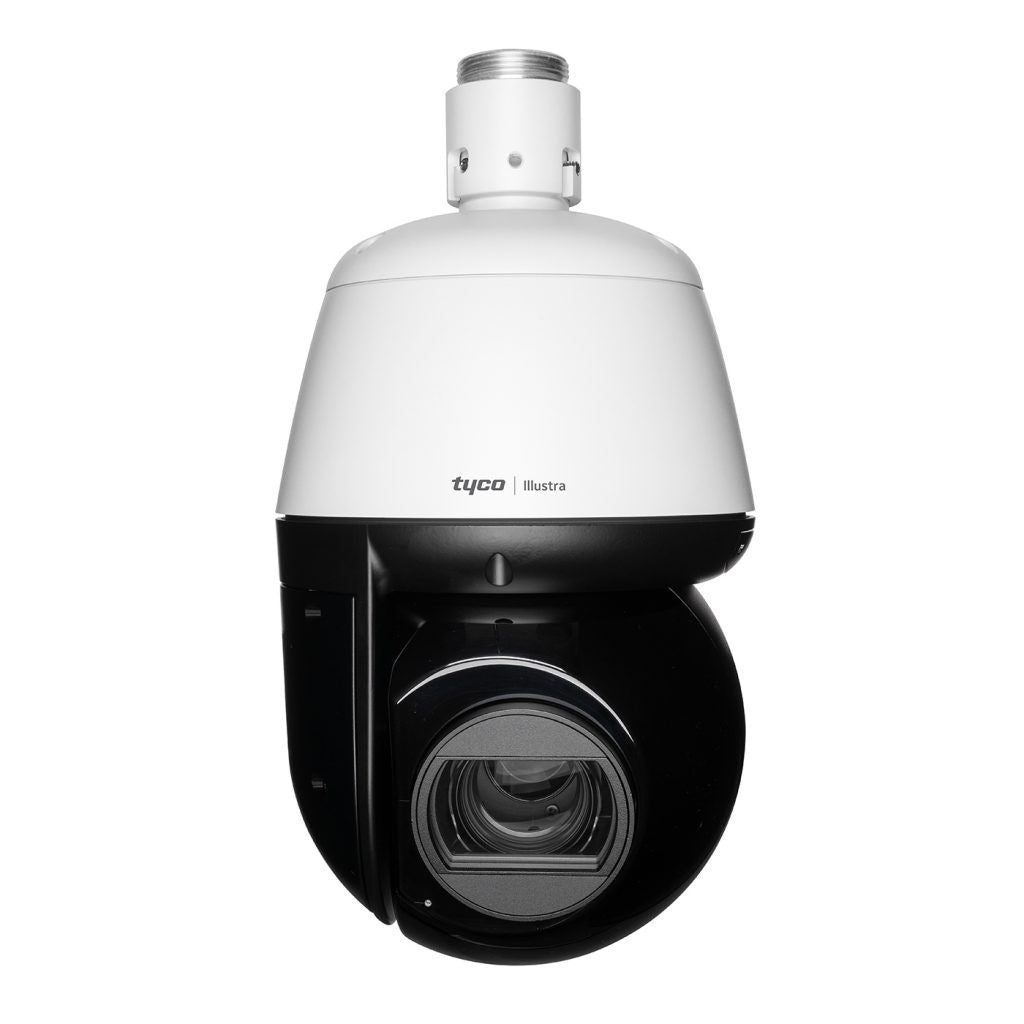

Exacq IPS08-P25-OI04 Illustra Pro Gen4 8MP (4K) PTZ, 22x, Outdoor, Vandal, White, TDN w/IR, TWDR
Quantity:
The exceptional speed of the Illustra Pro PTZ coupled with ultra-low latency performance gives security personnel the ability to accurately track subjects in mission critical applications.
The camera employs zoom-adjusted program technology to automatically control the pan and tilt speed in proportion to the amount of zoom used, delivering precise pan and tilt control. Using programmed presets and tours, the Illustra Pro PTZ moves into position at up to 700° per second.
- AI Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Rain dispersion for a clear image
- Auto-tracking based upon face or person detection
- Image stabilisation for clarity of image at large zoom setting
- True Day/Night and an IR distance up to 200M
- Encrypted, end to end, video streaming for protection of video
| Camera Features | Pro Gen4 2MP & 8MP IR PTZ Outdoor |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2/2 |
| B/W | Minimum Illumination 2MP 0.0035 lux - 8MP (4K) 0.015 lux |
| Color | Minimum Illumination 2MP 0.015 lux - 8MP (4K) 0.06 lux |
| Day/Night | TDN CF removal |
| Defog | Yes - Future Release |
| Digital Noise Reduction | 2D and 3D |
| Dimensions | Ø8.03 x 13.74 in (Ø204 x 349 mm) |
| Ethernet | IEEE 802.3, 10/100/1000Base-T Ethernet, RJ45, auto sensing |
| Field of View | 2MP Wide Angle: 43°/24°, Telephoto: 1.6°/0.9° 8MP (4K) Wide Angle: 61.9°/36.2°, Telephoto: 3.4°/1.7° |
| Focal Length | 2MP 42x Optical Zoom, 12x Digital - 8MP (4K) 22x Optical Zoom, 12x Digital |
| Focus | Motorized,One-touch Auto Focus, Manual Focus |
| Focus Control | Motorized |
| H.264 | yes |
| H.265 | yes |
| Housing Color | RAL 9003 - Signal White |
| Imager | 2MP CMOS 1/1.18” - 8MP (4K) CMOS 1/2.8” |
| IntelliZip | Yes, Encrypted |
| IR Distance | 2MP Up to 656’ (200m) - 8MP (4K) Up to 492’ (150m) |
| IR Illuminator | yes |
| Lens Type | Varifocal Lens, DC-Iris, IR Corrected |
| Manual Speed | < 0.25° to 100°/s scaled in proportion to zoom position |
| Max Aperture | 2MP F/1.8(W) ~ F/6.5(T) - 8MP F/1.5(W) ~ F/3.4(T) |
| Max Frame Rate | 2MP@60fps - 8MP@30fps/2MP@60fps |
| MJPEG | yes |
| Motion Detection | yes |
| Onboard Storage | Micro SD/SDHC/SDXC card slot, up to 512GB |
| ONVIF Compliant | Profile S |
| Operating Temperature | -58°F to 140°F (-50°C to +60°C) |
| Outdoor Rating | IP66 |
| Pan Travel | 360° Continuous |
| Power Input | 802.3bt Type 4 (90W) |
| Power Supply | 22 to 30 VAC, Class 2 LP 72W |
| Presets | 256 |
| Resolution Options | 2MP - 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 8MP - 3840 x 2160, 3264 x 1840, 2688 x 1520, 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP™, RTSP, LLDP |
| Tilt Travel | +15° to -90° |
| Vandal-Resistant | IK10 |
| Video Intelligence | Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter |
| Video Streams | Quad Streaming |
| Weight | 16LBS / 7KG |
| Wide Dynamic Range | True multi shutter WDR 126dB |
