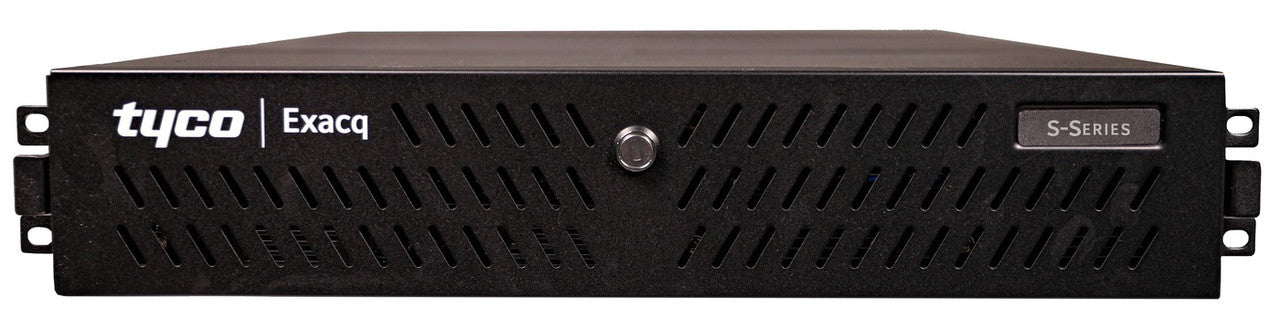

Exacq S-28T-2U-2 Rackmount 2U storage server, 1,500Mbps archiving rate (2,000Mbps with optional quad NIC)
Exacq S-28T-2U-2 Rackmount 2U storage server, 1,500Mbps archiving rate (2,000Mbps with optional quad NIC)
Exacq S-28T-2U-2 Rackmount 2U storage server, 1,500Mbps archiving rate (2,000Mbps with optional quad NIC)

Exacq

Exacq S-28T-2U-2 Rackmount 2U storage server, 1,500Mbps archiving rate (2,000Mbps with optional quad NIC)

Sale price$12,818.67
SKU: S-28T-2U-2
Quantity:

Contact

Archive Video and Audio to S-Series with Instant Search Capability

  • Increase recoverability with backup from exacqVision recorders to S-Series storage
  • Optimize network load with scheduled or continuous archiving
  • Store critical video and audio longer with flexible, user-defined archiving rules
  • Consolidate video archives from multiple video recorders on one or more S-Series
  • Optional dual 10 Gbps network interfaces for fastest archiving or mass client performance
exacqVision S-Series video security storage device
Archive IP video and audio to exacqVIsion S-Series storage device

Extend exacqVision video storage to store more cameras or more days without additional video recorders

  • Easily expand primary video recorder storage without complicated third-party storage
  • Lower cost and greater flexibility with shared network storage compared to external storage on multiple recorders

Unified VMS Solution

  • Reduce the complexity and cost of integrating disparate solutions with a complete exacqVision recorder and storage solution.
  • No need to learn multiple systems to administer and monitor storage and recorders. Configure and monitor health from the same intuitive exacqVision client interface.
  • Complete VMS support from Exacq Technologies
exacqVision S-Series High Reliable Video Surveillance Storage

Expandable and High Reliability Storage

  • Expandable to 240TB with additional drives
  • Fault tolerant of hard drive or power source failure with S-Series Enterprise RAID 5/6 and redundant power supplies
  • Maximize hard drive reliability with enterprise-class hard drives
  • Hot spare drive options for automatic replacement of failed drive
  • Optional RAID protected operating system drives guarantee high availability, maximizing system up-time
  • Add optional annual on-site video recorder repair service to diagnose and resolve issues faster within the continental United States

Specifications S-Series Enterprise 2U S-Series Enterprise 4U
Maximum Video Recorders 32 64
Maximum Storage 96 TB 240 TB
Maximum Hard Drives 8 20
Maximum Data Rate 1,500 Mbps with dual NIC bonding
2,000 Mbps (optional tri NIC Bonding)
1,500 Mbps with dual NIC bonding
2,000 Mbps (optional tri NIC Bonding)
Operating System Linux Ubuntu 20.04 Linux Ubuntu 20.04
RAID RAID 5 (Included) RAID 6 (Included)
CPU Intel Core i3
Intel Xeon W (Optional)
Intel Core i3
Intel Xeon W (Optional)
RAM 8 GB
16 GB (Optional)
8 GB
16 GB (Optional)
Operating System Drive 256 GB SSD 256 GB SSD
Monitor Output DisplayPort, HDMI, VGA
3 Simultaneous
DisplayPort, HDMI, VGA
3 Simultaneous
NIC 1 x 2.5 Gbps, 1 x 1 Gbps
3 x 1 Gbps, 1 x 2.5 Gbps (Optional)
2x 10 Gbps SPF+, 1 x 2.5 Gbps,
1 x 1 Gbps (Optional)
1 x 2.5 Gbps, 1 x 1 Gbps
3 x 1 Gbps, 1 x 2.5 Gbps (Optional)
2x 10 Gbps SPF+, 1 x 2.5 Gbps,
1 x 1 Gbps (Optional)
USB 2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0 2 x USB 3.2, 4 x USB 3.1, 2 x USB 2.0
Alarm Inputs 4 8
Alarm Outputs 1 TTL, 1 Relay 3 TTL, 1 Relay
Audio Outputs 4 4
DVD External (Optional) External (Optional)
Accessories Keyboard, Mouse Keyboard, Mouse
Dimensions (H x W x D) 3.5 x 17 x 24 in
8.9 x 43.18 x 60.96 cm
7.0 x 16.875 x 27 in
17.8 x 42.9 x 68.6 cm
Weight 34 - 50 lbs
15.4 - 22.7 kg
49 - 90 lbs
22.3 - 40.9 kg
Regulatory
Input Voltage 120/240 VAC
auto-sensing
120/240 VAC
auto-sensing
Power Supplies Redundant Redundant
Power & Heat 240 Watts/790 BTU/h (Max)
170 Watts/570 BTU/h (Typical)
390 Watts/1320 BTU/h (Max)
210 Watts/700 BTU/h (Typical)
Operating Temperature 40° - 95°F
4.5° - 35°C
40° - 95°F
4.5° - 35°C
Warranty 3 Years 3 Years

Rackmount 2U storage server, 1,500Mbps archiving rate (2,000Mbps with optional quad NIC), 350Mbps extended storage rate, 8 drive bays max 96TB, RAID 5, triple Gb NIC, Ubuntu Linux 20.04, exacqVision storage software pre-installed, keyboard & mouse, 3 year hardware warranty and software updates.
