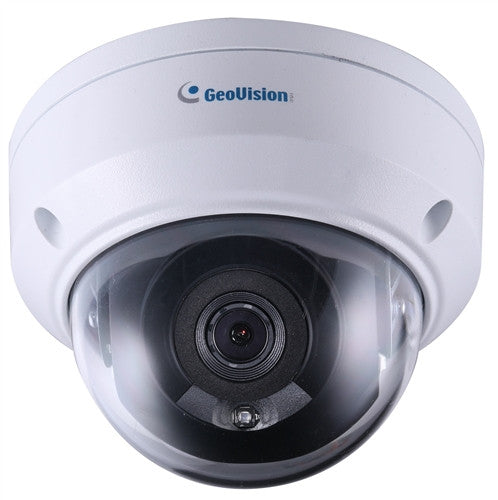

GeoVision GV-ADR4702 4MP Low Lux Mini Rugged Dome Network Camera

Geovison GV-ADR4702 Specifications

Camera

• Image Sensor: 1/3" progressive scan low lux CMOS
• Picture Elements: 2592(H) x 1520 (V)

• Minimum Color: 0.03 Lux (F2.0, AGC ON) Illumination IR ON 0 Lux

• Shutter Speed: Auto / Manual (1/6 ~ 1/100000 sec)

• White Balance: Auto / Manual

• Gain Contro:l Auto / Manual

• S/N Ratio: 52 dB

• WDR: Yes

• Dynamic Range: Up to 72 dB




Lens

• Megapixel: 4 MP
• Day / Night: Yes (with removable IR‐cut filter)
• Lens Type: Fixed lens
• Focal Length: 4 mm
• Maximum Aperture: F/2.0
• Mount: M12
• Horizontal FOV: 76°
• IR LED Quantity: 1 IR LED
• Max. IR Distance: 30 m (100 ft)

Operation

• Video Compression: H.265, H.264, MJPEG
• Video Streaming: Triple streams

Video Resolution

• Main Stream: 2592 x 1520 (Default), 2048 x 1520, 1920 x 1080
• Sub Stream: 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
• Third Stream: (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
• Frame Rate: 20 fps at 2592 x 1520 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics: Motion Detection, Tampering Alarm

Network

• Interface:10/100 Ethernet
• Protocol: ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, QoS, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile S, T)

Mechanical

• Camera Angle Adjustment: Pan 0° ~ 360°, Tilt 0° ~ 75°,
• Connectors: DC Jack (DC 12V, 1.25A), PoE
• Ethernet: RJ‐45

General

• Operating Temperature: ‐30°C ~ 60°C (‐22°F ~ 140°F)
• Humidity: 10% ~ 90% (no condensation)
• Power Source: 12 V DC / PoE (IEEE802.3af)
• Max. Power Consumption: 4 W
• Dimensions: Ø 108.7 x 81.1 mm (Ø 4.3” x 3.2”)
• Weight: 0.35 kg (0.77 lb)
• Ingress Protection: IP67
• Vandal Resistance: IK10 for metal casing
• Regulatory: FCC, CE, RoHS compliant

Web Interface

• Installation: Web‐based configuration
• Maintenance: Firmware upgrade through Web Browser or GV‐IP Device Utility (V8.7.2.1)
• Access from Web Browser: Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
• Language: Czech, English, French, German, Italian, Russian, Traditional Chinese

Applications

• Software Supported: GV‐DVR / NVR (V8.8.0), GV‐VMS (V17.2.0), GV‐Control Center (V3.5.1), GV‐Edge Recording Manager Windows version (V1.4.0), GV‐Recording Server / Video Gateway (V1.4.2), GV‐Redundant / Failover Server (V1.1.0.0)
• Smart Device Access: GV‐Eye for iOS and Android
• Live Viewing Browser: (IE, Edge, Chrome, Firefox), Mobile App

Geovison GV-ADR2702 Overview

The GV-ADR4702 Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
